FaceXess Terminal

Front door interaction at the highest level: come home without a key and just open the door with your smile. using the facial recognition of the FaceXess video door station.

Description

TVHS30000 A SMILE OPENS DOORS

Everything included: Camera with facial recognition. Door intercom system with touch screen.

Open the door with your face: securely and conveniently with FaceXess, the innovative video door station from ABUS. The front door unlocks fully automatically via facial recognition.
Intuitive convenience: key-free life for young & old

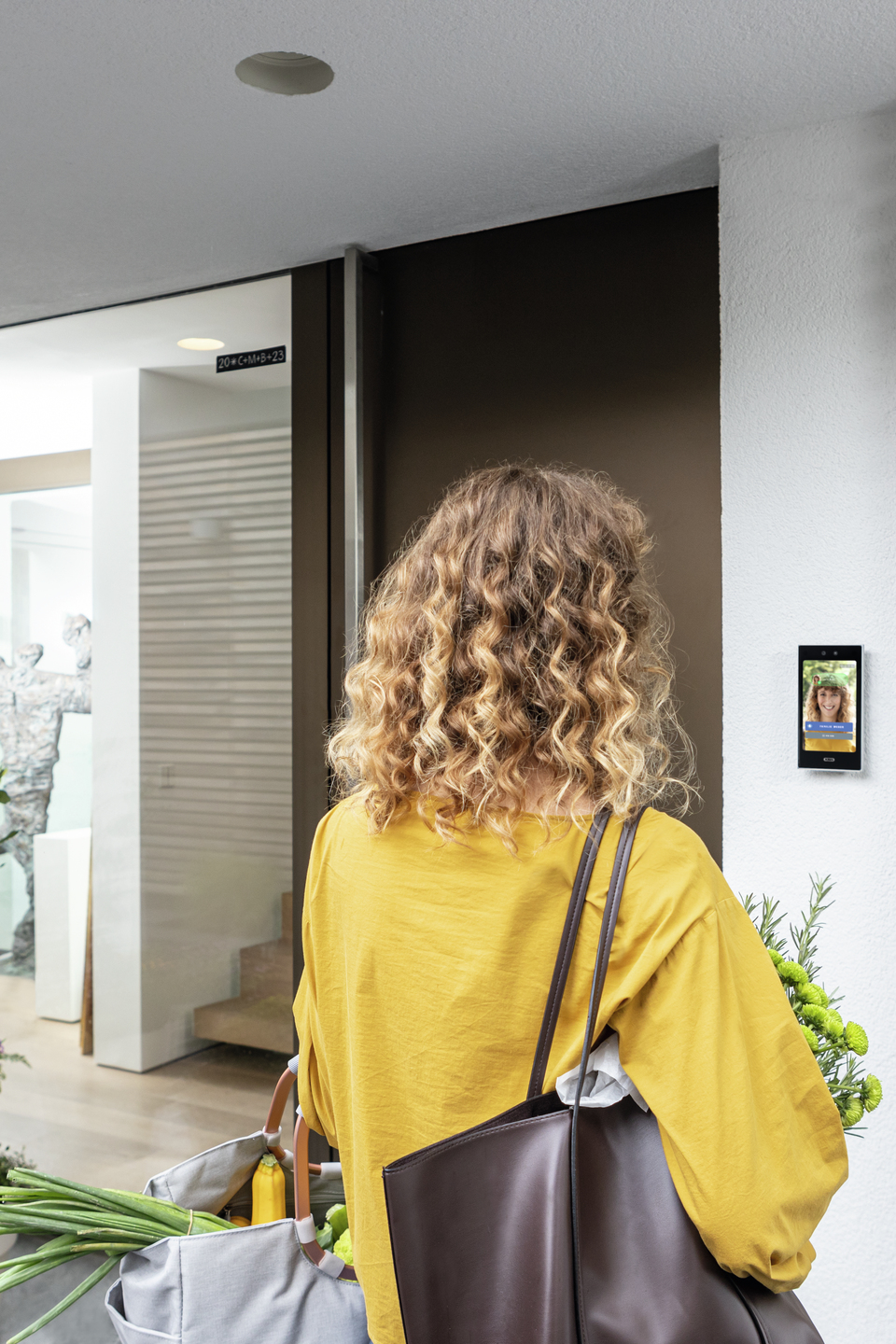

Does this sound familiar? You come home and have your hands full. To open the front door, first you have to put down all the bags and rummage for your key! Simply better: ABUS FaceXess recognises your face when you walk up and unlocks the front door. Even after jogging or walking the dog.

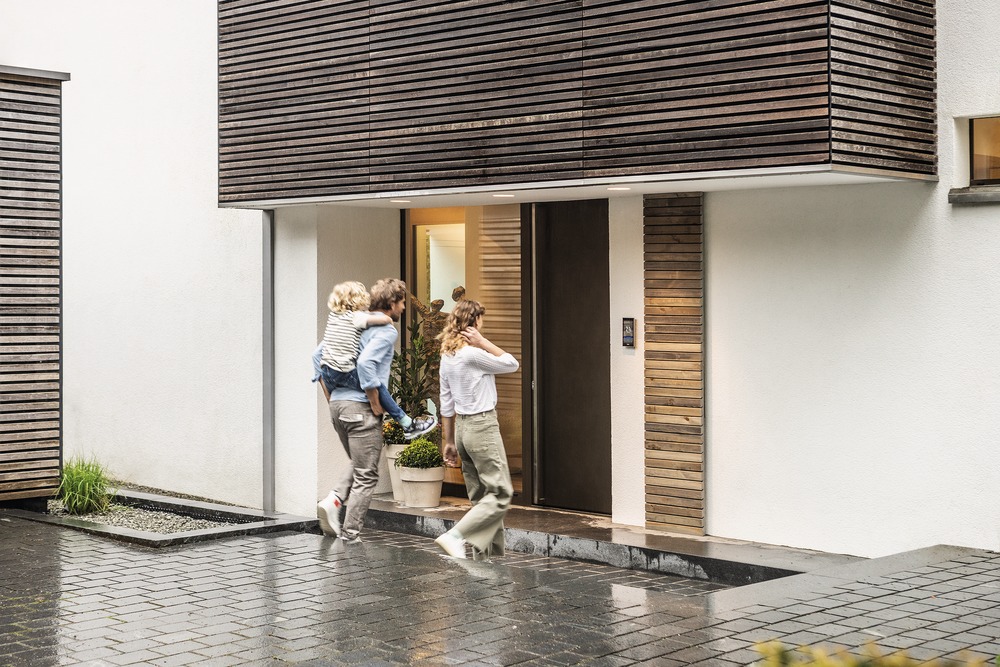

The children want to go in and out while playing? FaceXess also recognises the little ones – so the kids can open the door on their own without interrupting you.

For visitors: an almost completely normal bell

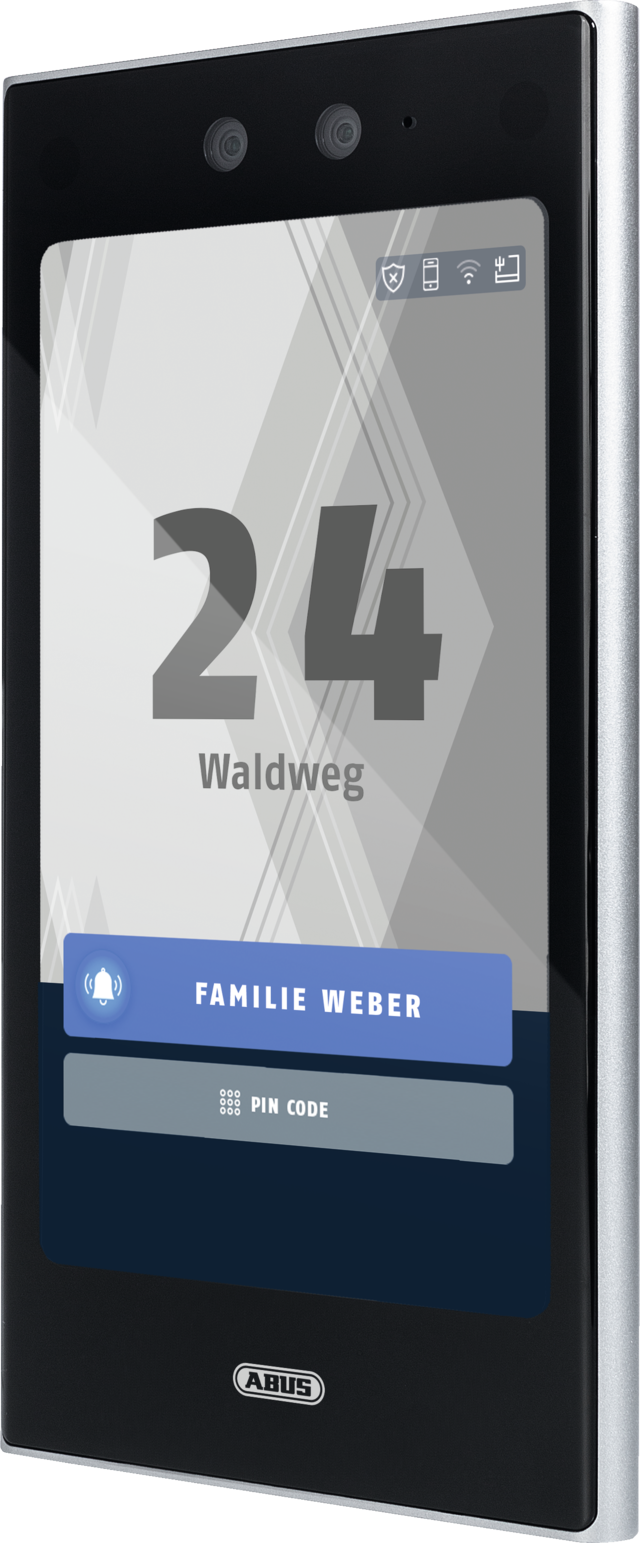

Visitors or parcel carriers use the front door station like a normal doorbell. And FaceXess can do more: Customise the display with your house number, address, the designs of your own choice and more.

ABUS FaceXess fits almost any entrance area where a LAN cable (incl. power) or Wi-Fi plus power connection is available.

See who is standing in front of the door

See visitors on the monitor or app, talk to them and open the door.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

Video door intercom system with facial recognition, unlocks the front door for authorised persons fully automatically at lightning speed. Optional: Access via PIN code or chip key/key card on the integrated NFC card reader.

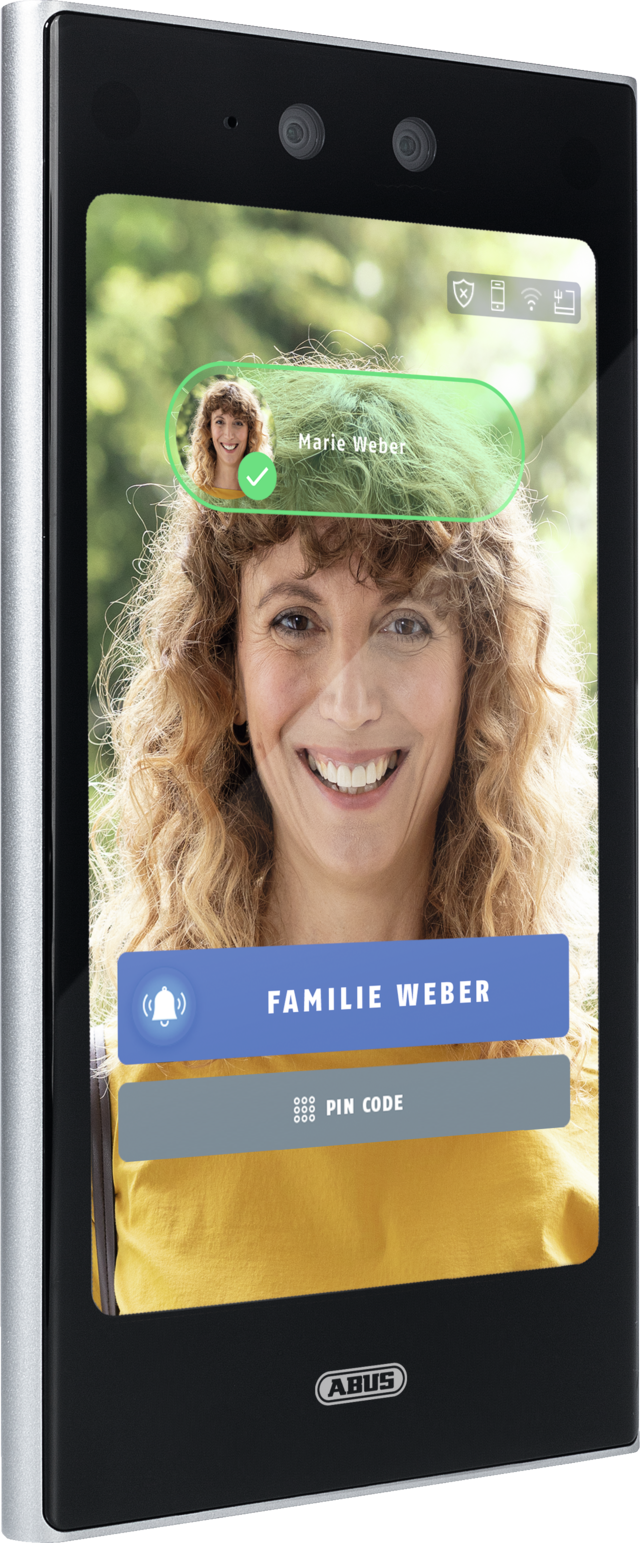

Residents can gain access by means of a facial scan or entering a PIN code directly on the 7'' touch screen (approx. 17.8 cm). Unknown persons use the virtual ring button on the display.
See who is at the door – with the video door intercom system: Live image, intercom and door opening on the interior monitor or via mobile phone app - even while out. High image quality with clear, rich colours thanks to Full HD dual camera.
Excellent voice quality thanks to high-quality microphone and loudspeaker with noise cancellation (noise cancellation suppresses background noise and prevents echoes).
Secure access, high protection against manipulation: terminal cannot be duped with a photo or video (anti-spoofing technology). Extra secure: 2-factor authentication combines facial recognition with PIN code/key card.
For up to 10 residential units: 10 main monitors and each up to 5 extension monitors possible per IP door station.
Simple and quick to install: All you need in the entrance area is a power connection, a connection to the electric door opener and a LAN or Wi-Fi available; your specialist company will take care of the rest.
Weatherproof terminal for outdoor use (IP65 housing)
No keys: never again stand in front of a locked front door because you forgot your keys

Downloads

General downloads:

Declarations of conformity:

CE Certificate

Software:
Installation software:

Firmware:

Firmware V3.3.15_240913

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Alarm output (NO/NC):	1
Alarming:	App Push, ABUS CMS, Touch Monitor
Audio:	2-Way-Audio
Backlight compensation:	WDR
Battery - type:	Seiko MS621R
Colour:	black / silver
Compatible with ABUS Link Station:	Yes
Compatible with Secoris:	No
Compatible with wAppLoxx Pro:	No
Connections:	Power supply 12V DC, RS485, RJ45 Ethernet, 1 x relay, Wiegand, USB-C
DC voltage supply:	12 V
Depth:	24 mm
Dimensions:	(W x H x D) 111 x 209 x 24 mm
Display surface:	Touch Screen
Fastening:	Wall
Gross weight:	1,1 kg
Height:	209 mm
Horizontal viewing angle:	41,5 °
IP protection class:	65
IR LEDs:	Yes
Image sensor:	Progressive Scan CMOS
Installation location:	Wall
Intended use:	Entrance area
LAN network access:	10/100/1000 Mbit/s
Loudspeaker:	Yes
Max. humidity:	90 %
Max. operating temperature:	60 °C

Microphone:	Yes
Min. operating temperature:	-30 °C
Mobile access:	Yes
Monitor type:	LCD
Net weight:	0,6 kg
Number of IR LEDs:	2
Number of users:	10.000
OSD language:	DE, UK
Operating mode:	Face recognition, pin, card, single or multiple authentication, group access (max. 5 people), mask recognition
Other functions:	Video door communication for up to 3 apartments with max. 5 indoor extension monitors each, Manipulation protection (Anti Spoofing)
PSTI conformity given:	Yes
PSTI conformity required:	Yes
Pixels (effective):	1920(H) x 1080(V) pixel
Power consumption:	2.000 mA
Product security updates at least until:	2026-05-01
Proximity keyfob:	Mifare Classic
Relay output:	1, Max. 30 VDC @ 2 A / 125 VAC @ 0,5 A
Resolution live view:	1080p (Display), 720p (Network Stream) TVL
Resolution modes:	Stream 1: 1280 x 720 @ 25 fps
Sabotage monitoring:	Yes
Screen diagonal:	7 in
Vertical viewing angle:	90 °
Video compression:	H.264
WLAN network access:	802.11b/g/n (2.4 GHz)
Width:	111 mm
