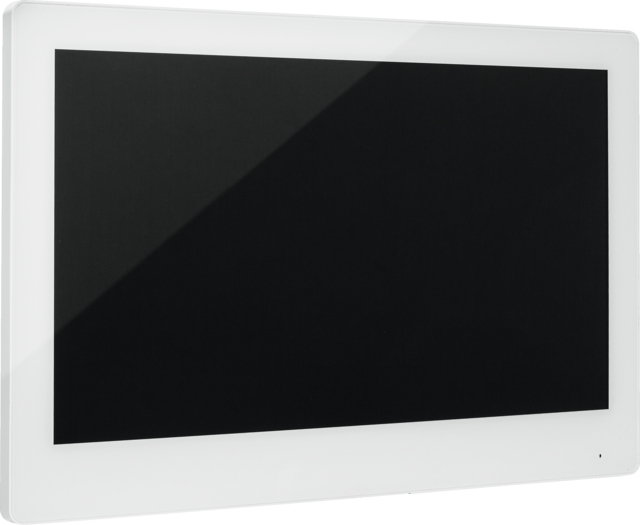

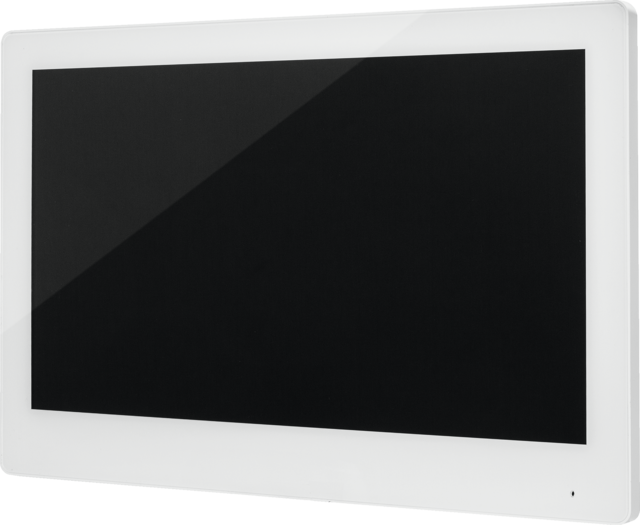

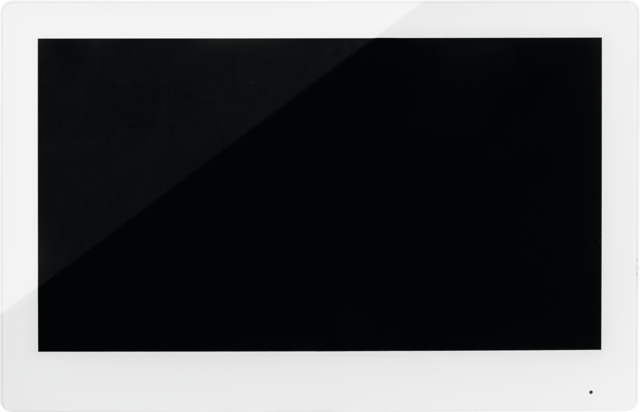

10" PoE Touch Monitor white, LAN/WiFi for door intercom

Description

TVHS20220 TOTAL MODULAR: THE VIDEO INTERCOM SYSTEM

See people in front of the door, talk to them, open the door. Easy to install, modularly adaptable to any building - and easy to operate on the monitor.

see everything, intercom, just open the door

The 7" touch monitor is the indoor station for operating the ModuVis door intercom. It displays the live pictures of the video module (and other cameras) and allows intercom in high speech quality. The door is opened by touch - via the door opener (door buzzer) connected to the video module. The monitor has an internal memory (microSD) for recording scenes.< CRLF>
.

ease of use local & amp; on the road: via monitor & amp; App

Operation is either via the stationary touch monitor or mobile on the smartphone/tablet using ABUS Link Station App.

IP installation (PoE, WLAN)< /b>

Communication between the PoE monitor, video module and other modules is via the IP network. The monitor can be easily wired using PoE installation, or used via WLAN and separate power line. 2-wire variant: see TVHS20210.

totally modular, extensively expandable

A clear advantage: Depending on requirements, the ModuVis system can be used to create up to 49 flats - with one monitor per flat. The added security: Up to 16 IP cameras can be integrated for video surveillance and displayed on the monitor. Whichever variant of monitor and video module (IP/PoE/WLAN or 2-wire) is selected - the systems are compatible with each other.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

Indoor station for ModuVis / FaceXess
Simple operation and communication in very good voice and picture quality within the door intercom system (up to 49 monitors)
Live image display of the video module or of up to 16 network cameras (IP/WLAN)
Intercom and react (e.g. opening the door) when someone rings the bell
Recording on internal memory (expandable with microSD card)
Saving and displaying pictures of missed people who rang the bell
Relay output for flat door opener
Digital input for floor bell push button and connection for existing door bell
PoE network connection and WLAN/WiFi
Including wall bracket (mounting plate)

Downloads

General downloads:

Declarations of conformity:

CE Certificate

Additional information:

Software:
Installation software:

Firmware:

Firmware V2.1.2_231219 / V2.2.3_231021

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

10 PoE Touch Monitor white, LAN/WiFi for door intercom"

Specifications

Alarm output:	2 (2A@30VDC / 0.5A@125AC)
Audio:	Built-in microphone and speaker
Compatible with ABUS Link Station:	Yes
Connections:	1 x RJ45, 1 x DC, 8 x alarm input, 2 x alarm output
DC voltage supply:	12 (+/-10 %) V
Dimensions:	254 x 166 x 15 mm
Display:	10" Touchscreen Monitor
Height:	166 mm
LAN network access:	RJ45 10M/100M self-adaptive
Length:	15 mm
Max. humidity:	90 %
Max. operating temperature:	55 °C
Microphone:	Yes

Min. operating temperature:	-10 °C
Network access:	RJ45
Network camera protocols:	TCP/IP, RTSP
Operation:	Touch-Screen
PSTI conformity given:	Yes
PSTI conformity required:	Yes
PoE standard:	IEEE 802.3af
Power consumption:	6 W
Resolution:	1.024 x 600 Pixel
Storage medium:	microSD card, 32 GB (option)
WLAN network access:	802.11b/g/n
Width:	254 mm
