Bell button module (6 buttons) for door intercom (stainless steel) Bell button module (6 buttons) for door intercom (stainless steel) Klingeltasten-Modul (6 Tasten) für Türsprechanlage (Edelstahl)
New

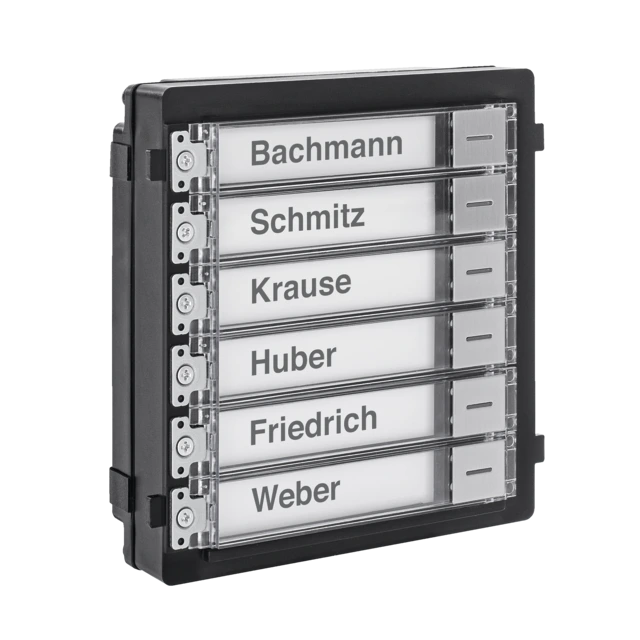

Bell button module (6 buttons) for door intercom (stainless steel)

Description

TOTAL MODULAR: THE VIDEO INTERCOM SYSTEM
See people in front of the door, talk to them, open the door. Easy to install, modularly adaptable to any building - such as the number of bells required.

Extend ModuVis intercom station by 6 bell buttons
The bell push button module extends the ModuVis system (video module and possibly other modules) by 6 bell push buttons, e.g. to equip an apartment building. The keys are backlit, panels are included to cover unused keys.

Easy installation
The bell button module is simply connected to the video module. This establishes the connection or communication, e.g. to the ModuVis monitor. Depending on the installation frame used, the module is mounted on or under the surface.

Totally modular, extensively expandable
A clear advantage: depending on the number of flats and local requirements, additional modules are simply added to the system. In this way, up to 49 doorbells are possible (1 video module with 1 button plus up to 8 bell button modules with 6 buttons each), e.g. for an apartment building or a residential complex. One ModuVis Touch Monitor is integrated for operation in each apartment block.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Bell button module for ModuVis door intercom system
  • Extends the system by 6 bell buttons with Backlighting
  • Including covers for unused bell buttons
  • Suitable for surface-mounted or flush-mounted frames
  • Up to 8 modules can be integrated into a ModuVis system

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Dimensions: 98 × 99.8 × 33.7 mm
Height: 99,8 mm
IP protection class: 65
Length: 33,7 mm
Max. humidity: 0,95 %
Max. operating temperature: 60 °C
Min. operating temperature: -40 °C
PSTI conformity required: No
Width: 98 mm
Required accessories
