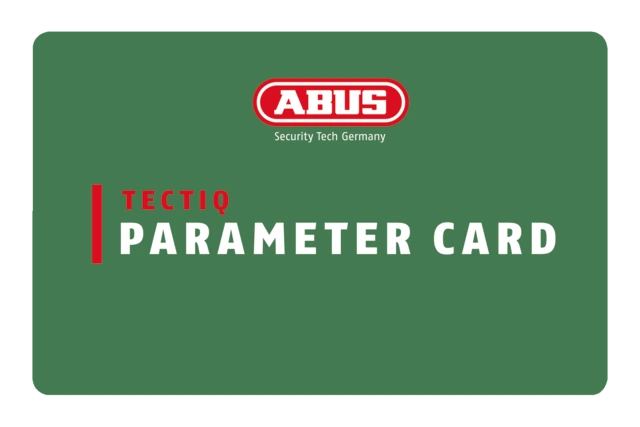

TECTIQ Parameter Card

TECTIQ parameter card: A door component (fitting, cylinder) has been serviced or changed? Simply reload the current programming including system time using the parameter card.

Description





With the digital TECTIQ® locking system.



Perfectly synchronised


The TECTIQ parameter card is a system medium in the TECTIQ access control system. The current component and system data from the TECTIQ Access Manager locking system software is loaded onto the chip card and transmitted to the wirelessly integrated door components (fittings, cylinders, wall readers).



For transferring the system time and date after a battery change. Or to transfer the programming after a component has been changed (e.g. change of door group/location).



The RFID chip card with passive transponder (MIFARE® DESFire®) does not require a battery.

Product advantages

  • System card for secure data transfer between the TECTIQ Access Manager and the door components
  • Data-on-Card: Parameterises the door component with the information from the TECTIQ Access Manager (ID) and writes information (firmware & serial number) back again
  • For updating the date/time, e.g. after a battery change, and for transferring the programming after a change (e.g. relocation of a component)
  • MIFARE® DESFire® card structure enables convenient, secure, contactless and readout-protected data transmission
  • Smart card in cheque card format for wallet, card holder, etc.
  • Consecutively numbered

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Area of application: for parameterising the TECTIQ door products
Colour: Green
Design: Card
Dimensions: 86 x 54 x 1 mm
Item abbreviation: TEC-ST-Parameter
Material: plastic
Max. operating temperature: 50 °C
Min. operating temperature: -20 °C
Programming technology: RFID (13,56 MHz)
RFID conformity: ISO 14443
RFID frequency: 13,56 MHz
RFID technology: MIFARE® DESFire® EV1, EV2, EV3
Security features: Copy and read protection through MIFARE® DESFire® + ABUS security application, cards are assigned to the customer's TECTIQ system
Transponder conformity: Passive transponder ISO 14443 A (MIFARE® DESFire®)
Transponder encryption: AES 128-Bit
Transponder programming: TECTIQ Access Manager via TECTIQ Card Reader
