KeyGarage 787 SMART-BT for wall mounting open KeyGarage™ 787 SMART-BT KeyGarage 787 SMART-BT for wall mounting oblique front view KeyGarage 787 SMART-BT for wall mounting open oblique front view
New

787 KEYGARAGE™ One

Key handover made easy: keep keys safe and share them with others. Our KEYGARAGE™ One 787 key box can be opened using individual numeric codes or a smartphone.

All variants for 787 KEYGARAGE™ One
Description
Our smart KEYGARAGE One 787 for wall mounting brings convenience to your key management. Discover the advantages of the app-controlled key box:
  • secure storage and easy sharing of keys
  • Lock and open the key box using a numeric code or smartphone
  • Convenient set-up and clear management via app
You can attach the KEYGARAGE to a wall in a protected outdoor area so that it is securely fixed and accessible. The spacious compartment of the key box offers space for up to 20 keys or three car keys or for up to 30 access cards in EC card format. If you know the correct numeric code, you can open the key box.
This is practical for handing over keys to guests in a holiday flat – you don't have to make an appointment on site. But you can also easily grant access to tradespeople, cleaners or mobile care services with the smart key box. As the admin, you do this by using the app to create an individual numeric code for the person you want to grant access to – this also works with a time limit.
You can also send an invitation via the app so that others can operate the KEYGARAGE key box with their smartphone. You retain control and can limit or revoke permissions at any time. The key box with sturdy metal housing is IP54 splash-proof and can be installed in protected outdoor areas.

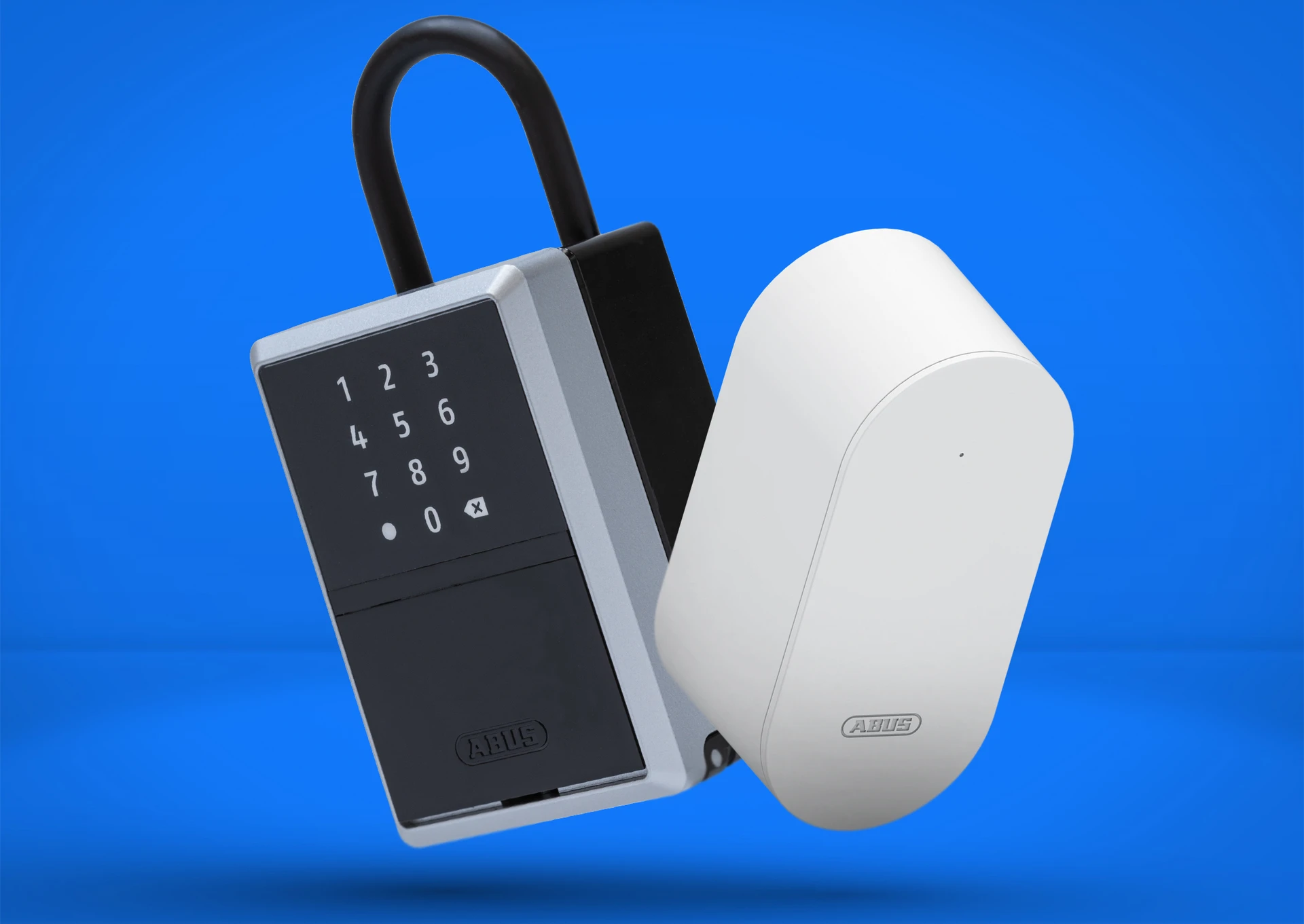

Use the separately available BRIDGE One to control your KEYGARAGE One remotely, manage permissions, optionally receive push notifications when it is used and view the event log.
New name – new app
With the integration of the key storage box KEYGARAGE™ 787 SMART Bluetooth® into the new ABUS One app, the product name has also changed to KEYGARAGE™ One 787. The previously used HomeTec Pro Bluetooth® app can still be used to operate the KEYGARAGE for the time being.
  • Made in Germany
Application example - KeyGarage™ 787 SMART-BT Application example - KeyGarage™ 787 SMART-BT Application example - KeyGarage™ 787 SMART-BT



Awards & Partners
AV-Test - Test result "Secure"
AV-Test - Test result "Secure"

Awards & Partners

Technologies

  • Secure storage of keys and small valuables in a sturdy metal housing
  • Up to 20 keys, up to 3 car keys or 30 plastic cards fit in the key box compartment
  • There are 2 hooks for hanging keys or key rings
  • Smart operation and management of the KEYGARAGE with the free HomeTec Pro Bluetooth or ABUS One apps
  • Overview of key box use in the app's clear event log
  • Automatic locking after the compartment is closed
  • Illuminated keypad for optimal input of the numerical code in the dark
  • LED for status indication (unlocked, locked, incorrect PIN and low battery)
  • Battery compartment for 2 x AA batteries, accessible from the outside

Operation and use

  • For secure storage of keys or small valuable objects for authorised persons
  • Quick and easy access for frequently changing groups of people (e.g. tradespeople, service staff, holiday guests, vehicle hire customers, care service)
  • Share access via an individual 6-digit numeric code or by invitation to a smartphone
  • For wall mounting indoors and in protected outdoor areas
  • Storage of whole key rings possible thanks to the large internal compartment
  • Real-time remote access to all functions such as unlocking, locking, viewing event logs and managing access permissions via the separately available BRIDGE One.

Variants

  • Colour: black-silver
  • 797 One: KEYGARAGE with shackle for hanging on a door knob, for example

FAQ

Can I also use the KEYGARAGE One outside?
Yes, you can. The KEYGARAGE One is tested to protection class IP54 and is weather-resistant. However, we recommend choosing a sheltered location outdoors.

Can I retrofit the wall-mounted version of KEYGARAGE One with a shackle at a later date?
Yes, the shackle is available separately as an accessory.

Can I also control the KEYGARAGE™ One remotely?
If you want to control the KEYGARAGE One from outside the Bluetooth® range, you must connect it to your Wi-Fi network via the separate BRIDGE One. This allows you to open KEYGARAGE One with the ABUS One app from anywhere and at any time via the internet, assign and delete numeric codes, invite your contacts to use the ABUS One app and give them access to it, and also to view the event log. In addition, you can receive push notifications when someone unlocks, opens or locks your KEYGARAGE One or when the battery level is low.

Can I generate a numeric code even if I am not within range of the KEYGARAGE™ One?
To assign a numeric code outside the Bluetooth® range, you must pair your KEYGARAGE One with a BRIDGE One that is connected to your Wi-Fi network. The BRIDGE One allows you to control the KEYGARAGE One from anywhere outside Bluetooth® range via the internet.

If you are not using a BRIDGE One, you always need an active Bluetooth® connection to the KEYGARAGE One to create a numeric code. Only user invitations can be created and sent via the app without a Bluetooth® connection.

As an admin, can I enter any numeric code?
Technically, yes, but for security reasons we recommend that you do not choose a simple series of numbers. Furthermore, the code "000000" is not approved for security reasons and therefore cannot be used as an opening code.

Do I always have to enter a 6-digit numeric code?
Yes, this is mandatory as only 6-digit codes are accepted. A 6-digit code ensures higher security: It enables one million opening codes. With a 4-digit code it would only be 10,000.

How many different users can be created?
Up to 28 different users can be created. If more than 28 users are created, the oldest user without current permission is automatically deleted.

How does hands-free mode work?
When hands-free mode is activated, you do not need to hold your smartphone in your hand to unlock the KEYGARAGE. A simple press of a button on the KEYGARAGE One keypad is all it takes if your smartphone is within the radius you have defined in the ABUS One app.

Which batteries are required?
Two AA batteries are required. These are enclosed in the packaging.

What is the battery life?
If the KEYGARAGE One is operated exclusively via code input, the battery life is up to one year. If it is operated exclusively via the app, the battery life is up to two years.

What do I do when the batteries are empty?
The battery compartment of the KEYGARAGE One is accessible from the outside so that batteries can be replaced quickly and easily. Only a screwdriver is required to open the battery compartment.

Will I get a message when the batteries need to be replaced?
If the battery capacity is low, this will be indicated via the LED lights (three orange flashes) each time before unlocking and locking the smart key box, alerting you to the fact that the batteries need to be replaced soon.

If you use a BRIDGE One to connect your KEYGARAGE to the Wi-Fi network, you can also receive push notifications via the app.

Which app should I download?
To operate the KEYGARAGE One, you need the free ABUS One app (formerly HomeTec Pro app). This is compatible with iOS™ and Android™ operating systems. You can find them manually in the App Store and Play Store or here.

The app does not connect to the KEYGARAGE™ One. What can I do?
If the KEYGARAGE One has already been configured in the app but suddenly cannot establish a connection, it is usually sufficient to briefly deactivate the Bluetooth® connection on your smartphone. As soon as you have reactivated Bluetooth® communication, the connection should be re-established without any problems.

Alternatively, it may help to close the app properly and reopen it.

What can I do if the ABUS One app is not displayed on my Apple Watch?
If the ABUS One app is not displayed on your Apple Watch, you have probably deactivated Automatic App Install option in the Watch app. Open the Watch app on your iPhone, scroll down to the Available Apps item and install the ABUS One app by clicking on Install.

Where can I find more answers about the ABUS One app?
You can find information and answers about the ABUS One app here: FAQs about the ABUS One system

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Assembly & Commissioning



Specifications
Number of plastic cards: 30
colour: black-silver
Depth e: 63 mm
Weight: 883 g
Design: Technical drawing
Technical drawing
number of keys: 20
Width a: 82,5 mm
Height f: 120 mm
