Padlock brass 83WPIB/53 Key

Submariner 83WPIB

This padlock with interchangeable cylinder is extremely weather-resistant. It provides high security for outdoor objects: containers in the harbour, parked trailers, doors on boats, and others.

All variants for Submariner 83WPIB
Description
Made of solid brass and with a stainless steel shackle, the Submariner 83WPIB padlock stands up to thieves as well as the most adverse weather conditions.
If it is wished to protect high-value assets in industry and commerce with a padlock, the Submariner 83WPIB offers high security through its massive robustness and thanks to double bolted locking mechanism. A plastic coating and the cylinder’s weather protection cap protect against corrosion. In addition, drainage channels lead liquid that has penetrated the lock back to the outside. This makes it ideally suited for securing objects in sea and port areas.
Maximum flexibility
The Submariner 83WPIB adapts to different requirements: you can replace both the cylinder and the shackle. This gives you a lock that can be used flexibly and even allows keying alike – different locks can be optionally opened with the same key. The Submariner 83WPIB: durable theft protection in all weather conditions.

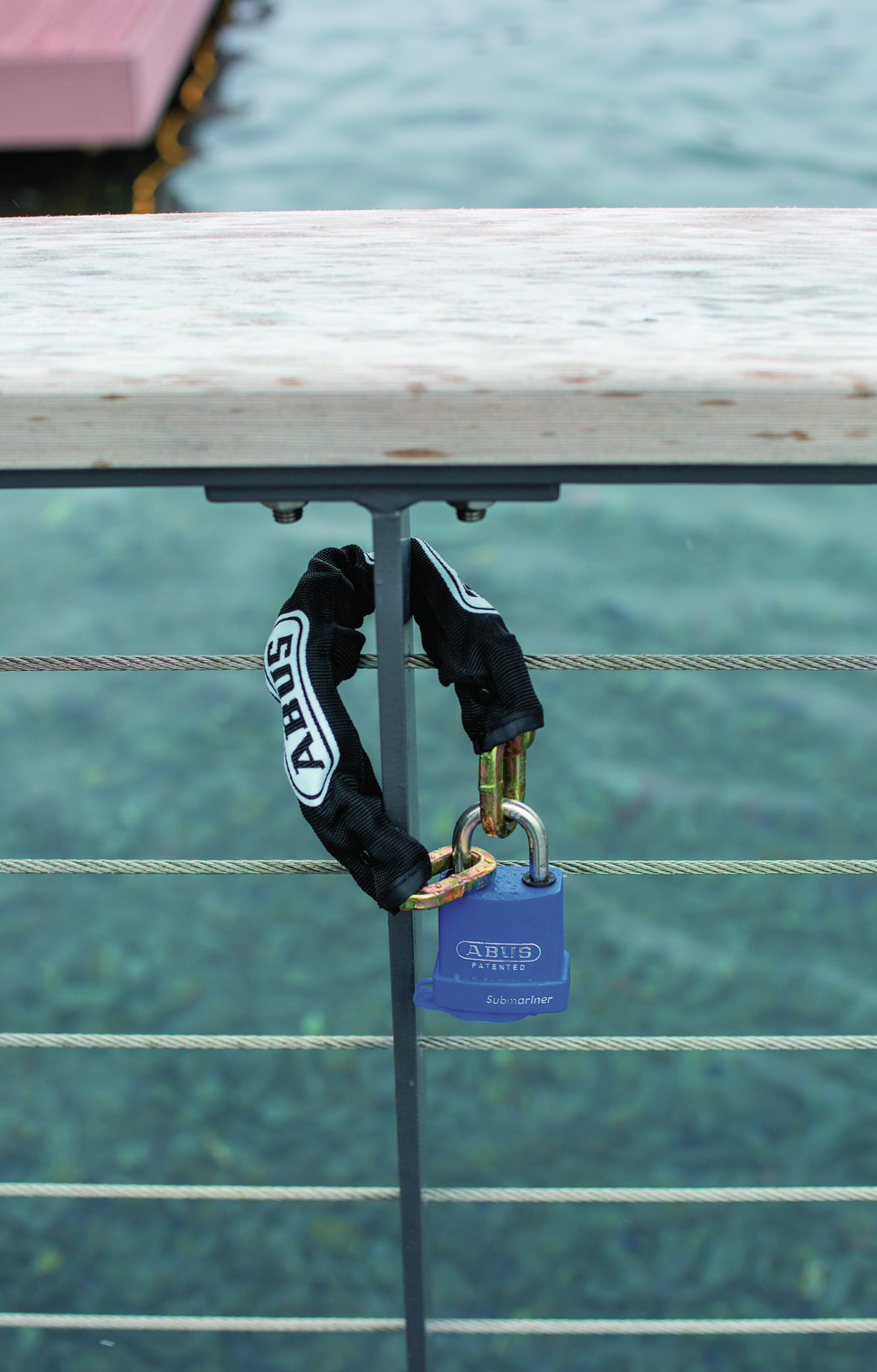

Application example - Padlock 83

Technologies

  • Lock body made of solid brass
  • Stainless steel shackle
  • Double bolted locking mechanism increases the security of the lock
  • 2 variants: with automatic locking by simply pressing down the shackle or with key retaining, i.e. locking only with a key (key retaining is set up by inserting the Z-bar)
  • Rekeyable: the cylinder can be exchanged and thus also adapted to existing bittings
  • Extremely weather-resistant: complete plastic coating and cylinder protection cap protect the lock from corrosion; drainage channels transport moisture that has penetrated the lock to the outside
  • Shackle can be exchanged within seconds
  • Precision pin cylinder

Operation and use

  • Protection of items with a higher value and with a high risk of theft
  • Suitable, among other things, for securing industrial or company gates, warehouses, trailers, containers and garages
  • Ideal for extreme weather conditions (e.g. in sea and harbour areas, for securing on vehicles and boats/ships in outdoor use)
  • Extremely flexible: can be adapted to a wide range of requirements in a short space of time

Variants

  • Size: 45 mm
  • For Figure 8 cylinder with cylinder

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Locking type: key
Width a: 57 mm
Vertical clearance c: 27 mm
Depth e: 34,5 mm
Weight: 371 g
Security Level Home Security: 8
Design: Technical drawing
Technical drawing
colour: blue
Horizontal clearance b: 23,5 mm
Shackle diameter d: 8 mm
Height f: 96 mm
Keyed alike: No
