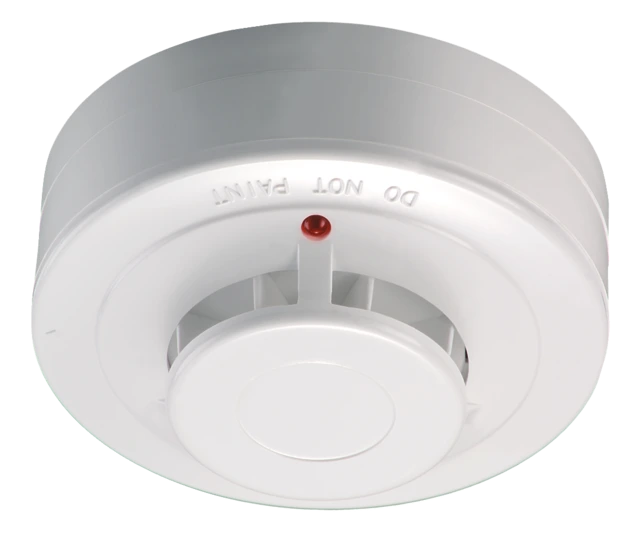

12 V Differential Heat Detector

12 V Differential Heat Detector

Description

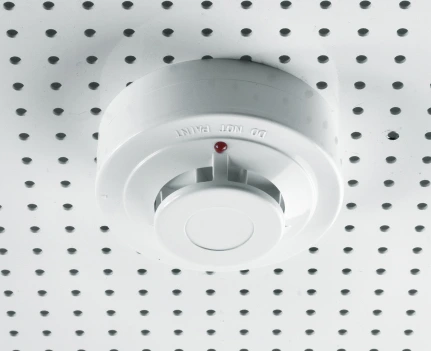

The 12 V thermo-differential detector detects incipient fires. It reacts to a maximum temperature and a sudden rise in temperature. These indicators are reliably detected and reported to the alarm center. The 12 V thermo-differential detector is mounted on the ceiling in the center of the room. The minimum distance to the side wall should be 30 cm. Since the heat detector does not detect smoke (as opposed to optical smoke detectors), it is used mainly in places with high dust and smoke pollution (kitchens, smoke rooms, garages). The detector triggers an alarm when the maximum temperature of 57° C is exceeded or when the temperature rises more than 5° C within 3 minutes. By changing a jumper, you can configure it as NO or as NC detector. It is therefore suitable for every wired alarm system. The 12 V raise of heat detector is supplied externally with 10 –15V operating voltage and is EN54 certified.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Suitable for connecting to alarm and fire detection systems
  • Detects temperature changes
  • Usable in steamy rooms
  • Potential-free alarm relay

Downloads

General downloads:

Certificates:

Additional information:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Certifications: EN 54-5
Compatible with: Secoris, Secvest, Terxon
Connections: Screw terminal NO or NC, 1A at 30V DC
DC voltage supply: 10-15 V
Dimensions: (HxD) 46x100 mm
Height: 46 mm
Housing material: ABS
Installation location: Ceiling
Max. humidity: 95 %
Max. operating temperature: 50 °C
Min. operating temperature: -10 °C
Net weight: 0,142 kg
PSTI conformity required: No
Power consumption: 50 mA
Sensor type: thermocouple: thermodifferential (3°/minute, max. Temp. 60°C)
Type of detection: Thermal
Width: 100 mm
