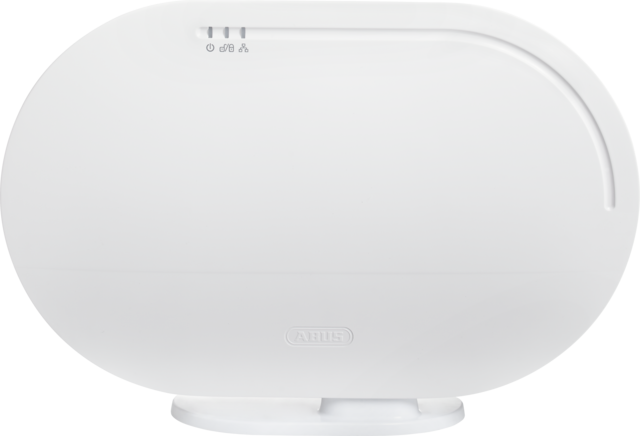

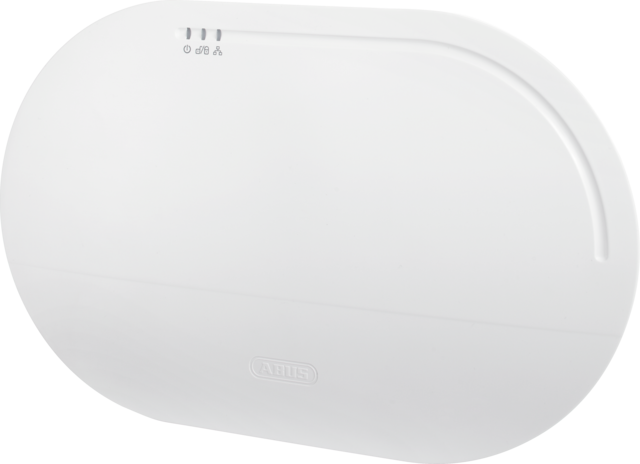

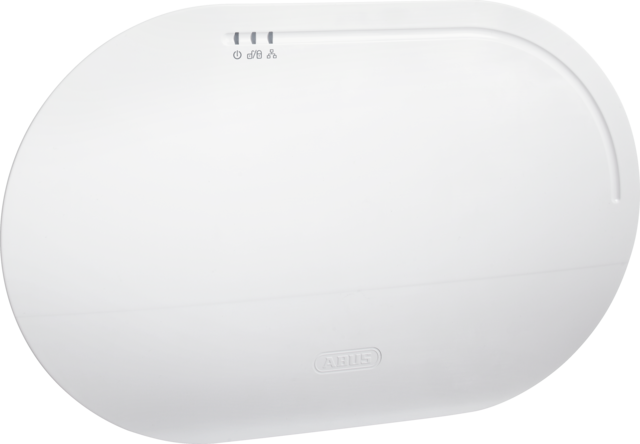

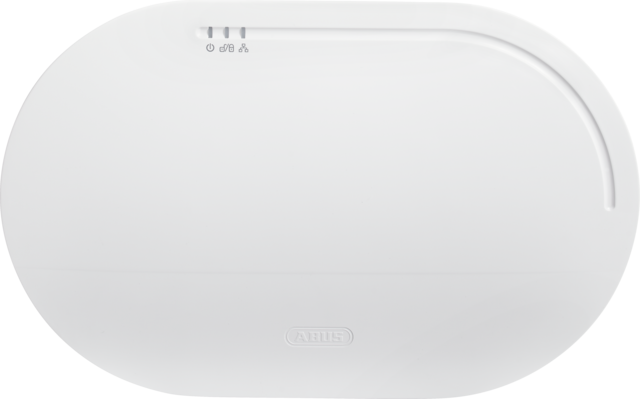

Smartvest Wireless Alarm System and App – Alarm Control Panel

Description

FUAA35010A

Up to 32 wireless components and four IP cameras can be connected to the Smartvest alarm panel via the free app, making it the hub of any modern home, combining reliable all-round security with attractive home-automation functions. It is very easy to install any other components thanks to Plug and Play, as these are preconfigured and can easily be integrated using the free app. All other settings (e.g. presence simulation) are easy and intuitive to make using your tablet or smartphone. An integrated hygrometer makes it possible to react to changes in room temperature and humidity at any time. If an alarm is triggered, the alarm panel activates its built-in, high-volume 90dB siren; it can also raise the alarm simultaneously via push notifications in the app and email.

Awards & Partners

Product advantages

Smart and reliable all-round security for your home that is easy to install yourself

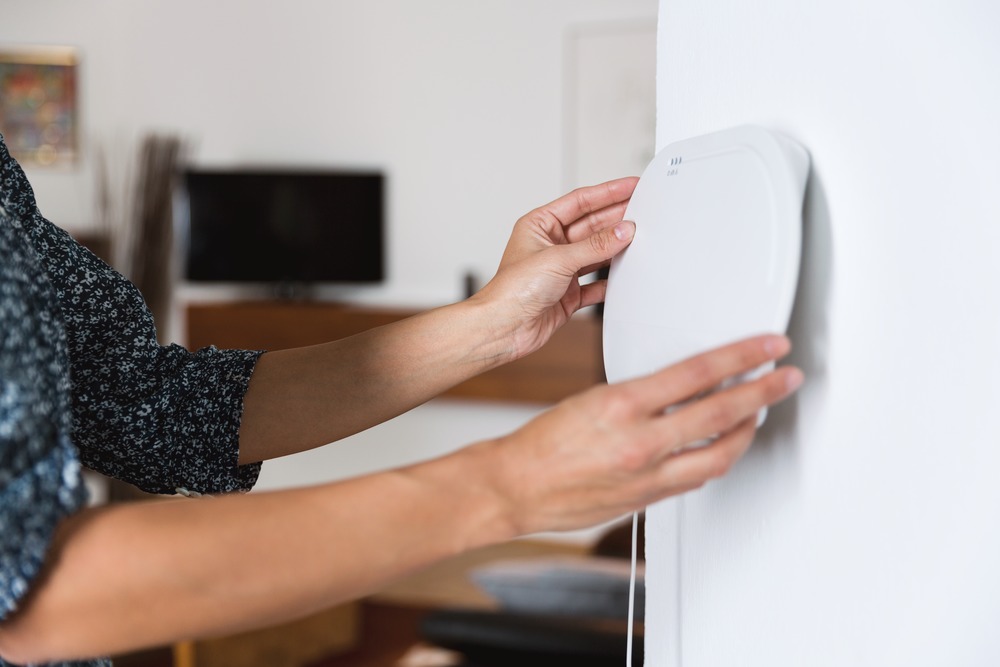

The 5 V power supply unit and pre-configured detector means quick wireless Plug&Play installation of the alarm control panel without the need for wires or drilling
All-round security with the auxiliary battery as the backup power supply and the option to extend to a maximum of 32 wireless components and 4 IP cameras
Mobile access from any location via the free Smartvest app (for iOS and Android) that allows you to monitor and control what is happening at home
Immediate triggering of alarms with the built-in, high-volume 90 dB siren and push notifications via app and e-mail
Intuitive operation via app with live camera view, snapshot function and presence simulation thanks to lighting/TV control (wireless socket as required accessory)
Peace of mind at all times with space to save up to 1000 events and camera recordings
Up to 32 scenarios that can be individually configured, such as smart lighting control: system disarmed, motion detected, light on
Integrated hygrometer which displays room temperature and humidity

Downloads

General downloads:

Declarations of conformity:

Declaration of Conformity

Additional information:

Open Source License Information

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Smartvest Wireless Alarm System and App – Alarm Control Panel

Specifications

Alarming:	Push notification / E-Mail / SMS / Acoustic warning signal
Backup power supply:	Yes
Battery - battery operation:	Yes
Battery - quantity:	6
Battery - type:	AA (1,5V)
Colour:	White
Compatible with:	SHGW10000 / SmartFriendsBox
DC voltage supply:	5 V
Dimensions:	(B x L x H) 280 x 89 x 280 mm
Display:	LED
Encryption:	AES128, HTTPS
Gross weight:	1,04 kg
Height:	280 mm
Housing material:	Plastic
Integrated siren:	< 90 dB
Luminous colour:	Blue / Yellow / Red
Max. humidity:	80 %
Max. operating temperature:	40 °C
Min. humidity:	10
Min. operating temperature:	0 °C

Net weight:	0,54 kg
Network access:	RJ-45 connector (10/100 Mbps)
Number of events:	1.000
Number of users:	1
Number of wired zones:	0
Number of wireless zones:	32
PSTI conformity given:	No
PSTI conformity required:	Yes
Plug type:	DC-plug: 3,5 x 1,35mm
Power consumption:	480 mA
Radio frequency:	868 MHz
Radio modulation:	FSK
Simultaneous network access:	3
Software:	App: Smartvest (Android / iOS)
Supported IP cameras:	PPIC32020 / PPIC32520 / PPIC34520 / PPIC35520 / PPIC36520 / TVAC19000 / TVAC19100 / TVAC1600x
Transmission power:	4,5 dBm
VdS class:	Without
Wireless range:	(Depending on installation) 30 - 100 m
