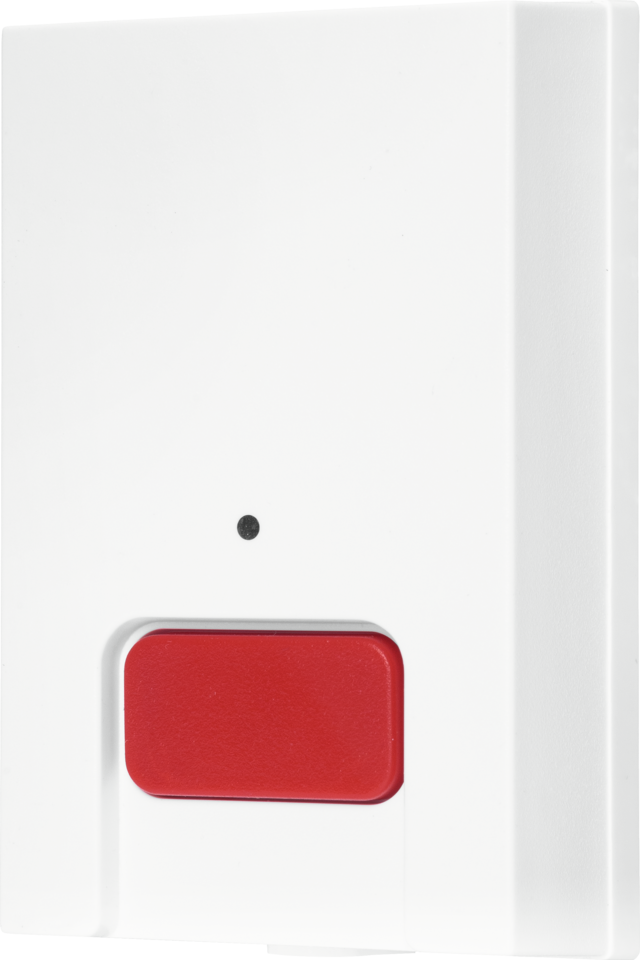

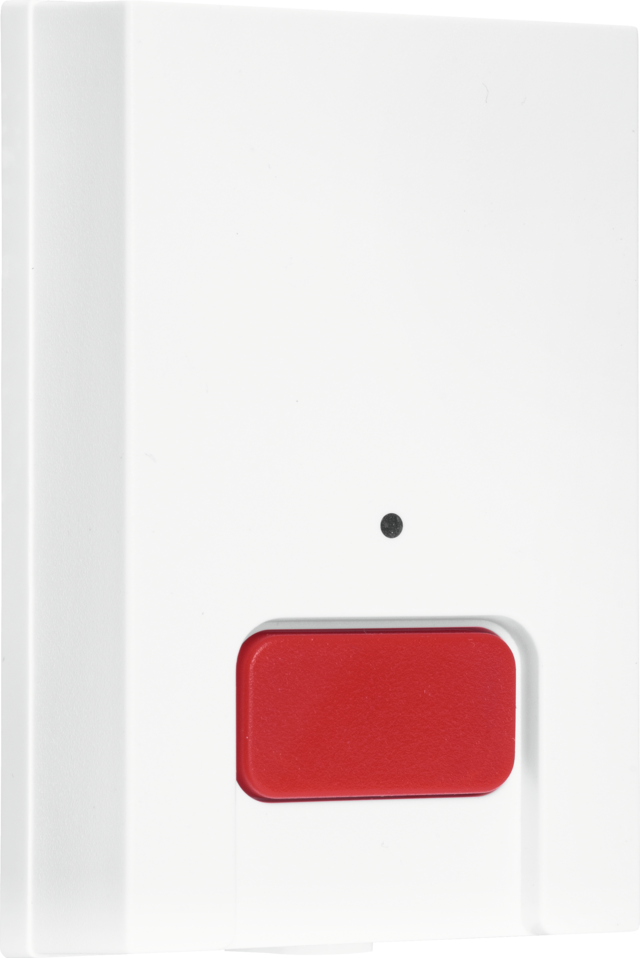

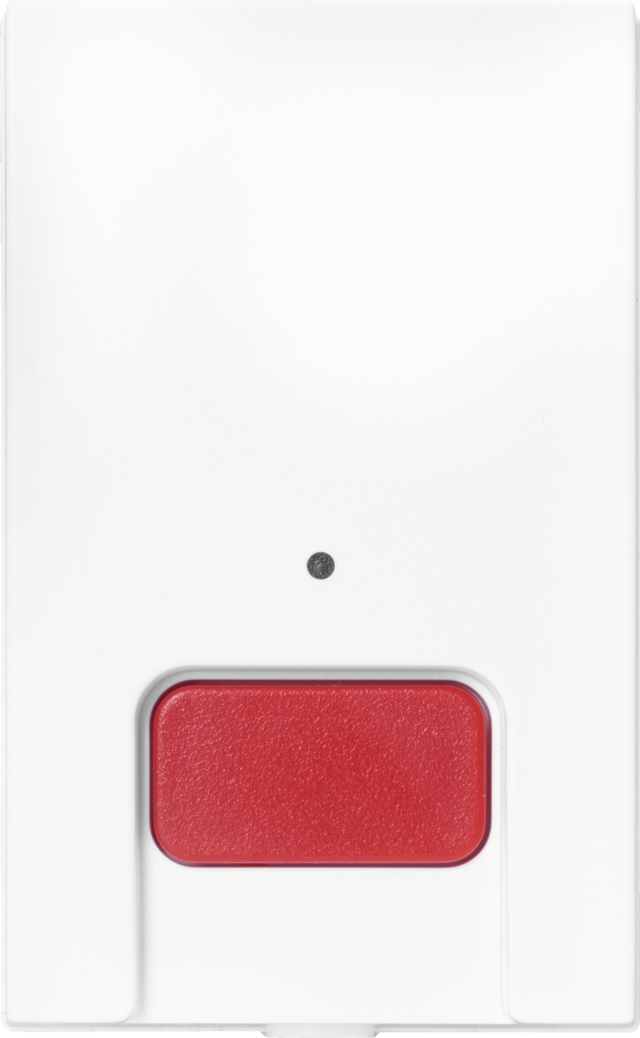

Comfion wireless wall button (alarm)

The button can be used as a panic button for a silent alarm or for home automation for greater convenience.

Description

FUAT80100 Silent alarm or smart home automation

With the Comfion wireless wall button, the choice is yours! This innovative wireless panic button offers two different use cases, depending on requirements: The button can be used as a classic panic button for a silent alarm or as a button for home automation for greater convenience.

Panic button mode

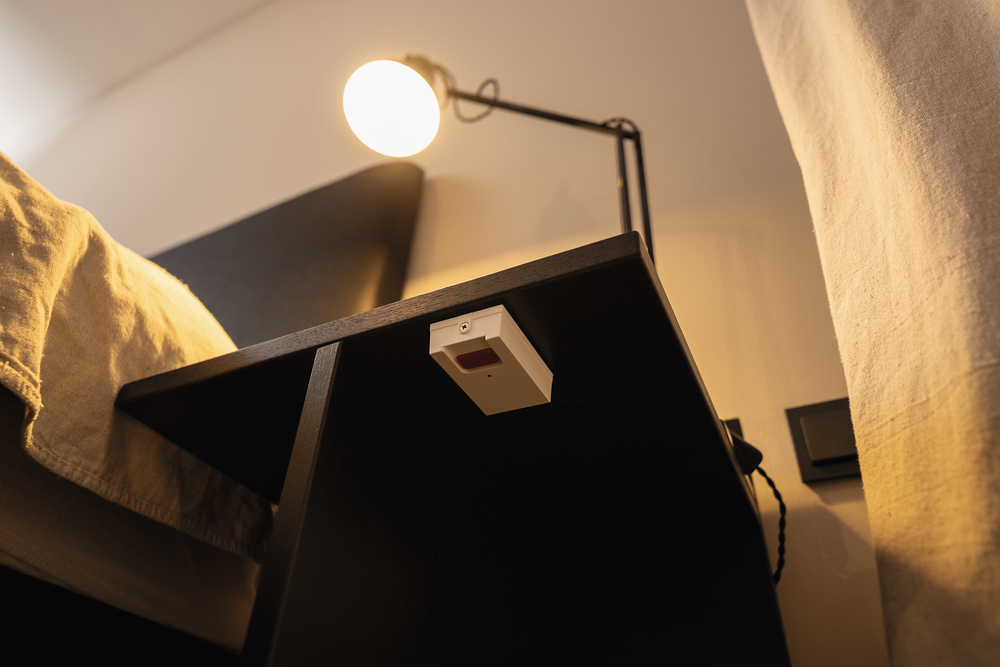

Pressing the button for two or three seconds immediately triggers a panic alarm at the Comfion alarm panel. A vibration confirmation (optional) indicates that the alarm has been successfully transmitted. You can choose whether the alarm sounds loudly on site or whether a control centre should be informed inconspicuously – perfect for discreet emergencies. Thanks to this flexibility, the button is ideal for use in bedrooms or placed inconspicuously on the edge of a shop counter.

For more convenience
Alternatively, the button can be used to control automated functions. A previously defined automation can be triggered in the Comfion by simply pressing the button – ideal for smart control solutions in everyday life.

Certified security according to EN Grade 2
The device is certified to EN 50131 Grade 2, which guarantees maximum security and reliability in the event of an alarm. Thanks to its flexible mounting options, the button can be either glued or screwed into place, depending on the individual requirements of the surroundings.

This button not only impresses with its security functions, but also with its versatility in the field of home automation.

Awards & Partners

EN50131 Grade 2 Logo

Product advantages

Two operating modes: panic alarm or button for smart home automation
Loud alarm or silent alarm option as required
Vibration confirmation on alarm activation
Certified to EN 50131 Grade 2 for maximum security
Simple installation: screw or glue mounting

Downloads

General downloads:

Declarations of conformity:

CE Declaration of Comformity

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Area of application:	Interior
Battery - max. battery life:	5 y
Battery - quantity:	1
Battery - type:	CR123A
Certifications:	EN 50131 Grade 2
Colour:	white
Compatible with:	Comfion
DC voltage supply:	3 V
Depth:	21 mm
Dimensions:	48 x 76 x 21 mm
EN:	Level 2
Environmental class:	II
Fuse protection type:	Intrusion protection
Gross weight:	0,06 kg
Height:	76 mm

Max. humidity:	95 %
Max. operating temperature:	50 °C
Max. receiving range (free field):	1.000 m
Max. transmission range (free field):	1.000 m
Min. operating temperature:	-20 °C
Modulation:	2FSK
Net weight:	0,042 kg
Radio frequency:	868 MHz
Radio power:	25 mW
Sabotage monitoring:	Yes
Security level:	2
Standard:	EN50131-3:2009, EN50131-5-3:2017
Voltage monitoring:	Yes
Width:	48 mm
