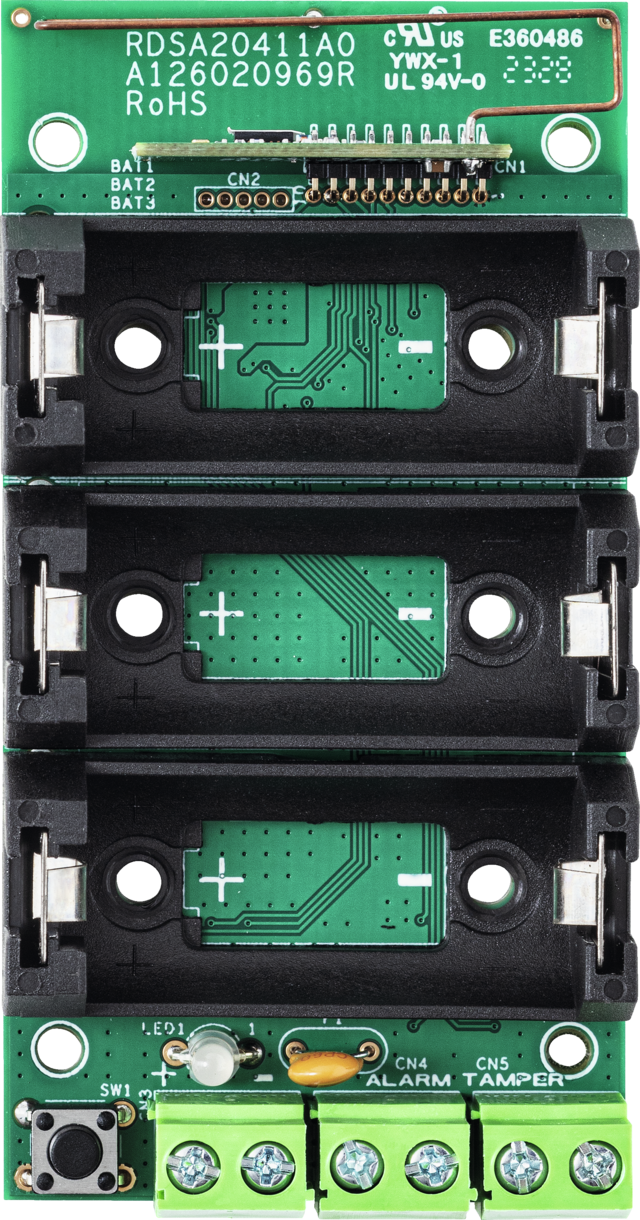

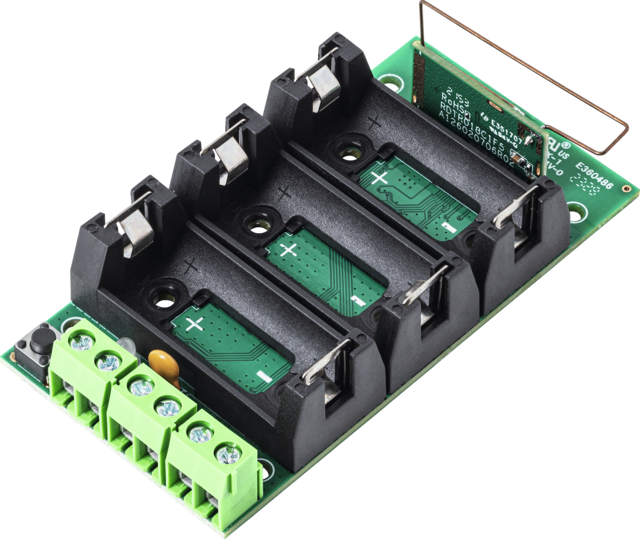

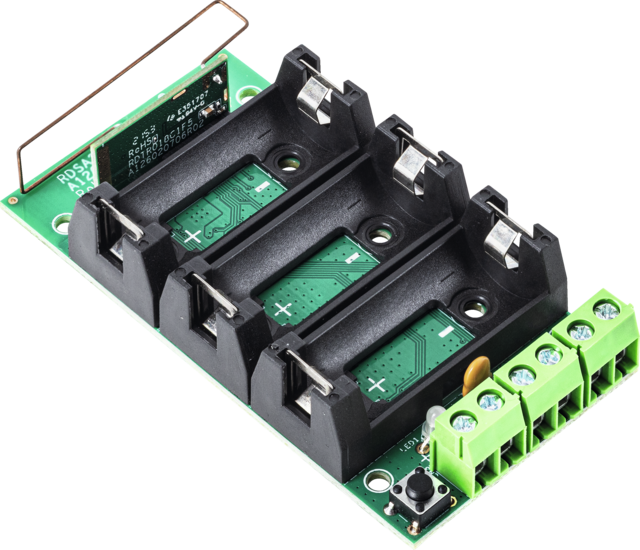

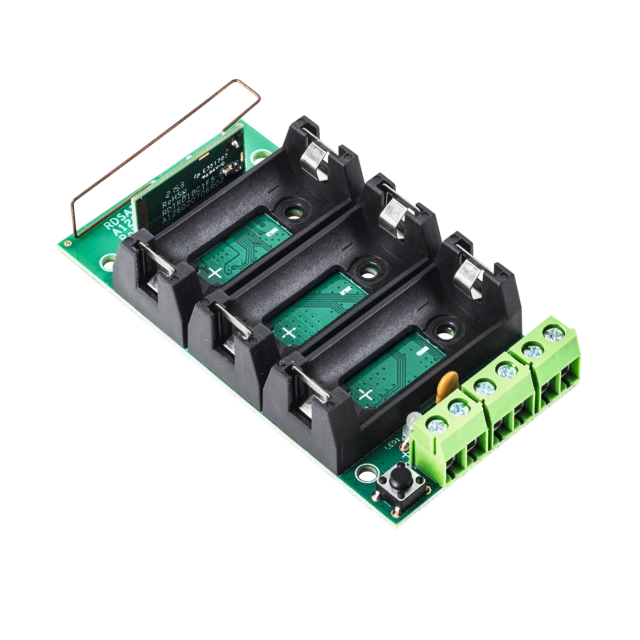

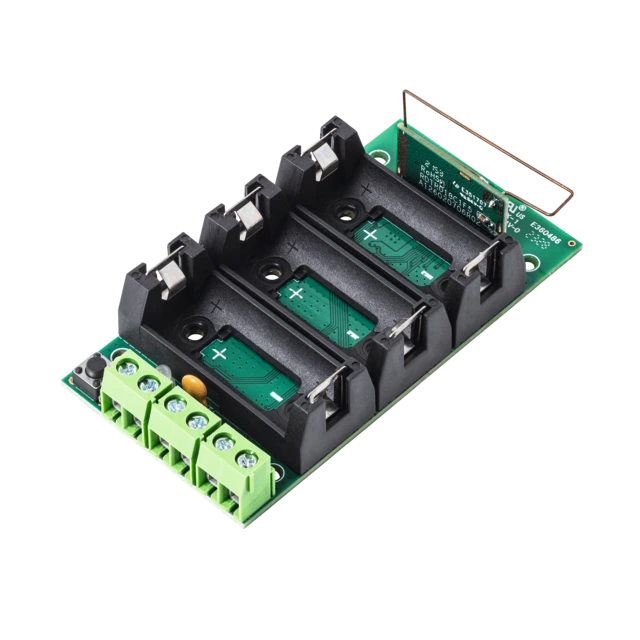

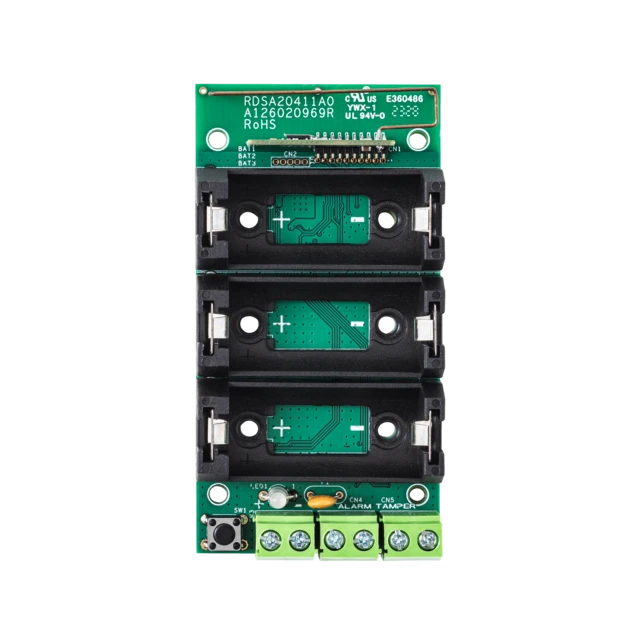

Comfion Wireless-Transmitter

The wireless transmitter can be used to integrate a wired alarm detector into the Comfion security system. In this way, the alarm signal is transmitted and the detector is protected against sabotage.

Description


The Comfion security system is designed so that existing wired components – such as an alarm detector – can also be integrated into the alarm system. The alarm signal is then transmitted to the Comfion system, where it is processed securely.

Acceleration sensor with added value
An acceleration sensor is built into the wireless transmitter. In conjunction with the wired alarm detector, this sensor in the detector registers possible sabotage attempts – and responds with an alarm. The radio transmitter can also be used as a vibration sensor with this function.

Battery-operated power supply
The Comfion radio transmitter is powered by a battery. It can even supply the connected alarm detector with power in an emergency.

Comfion Wireless-Transmitter

Product advantages

  • Wireless transmitter for integrating a wired detector into the Comfion alarm system.
  • Equipped with an alarm input, a sabotage input and a voltage output
  • Tamper protection via an integrated acceleration sensor
  • Installation by a specialist company
  • Secure radio connection to the Comfion alarm control panel, with a long range of up to 1,000 m (free field) and high tamper/data protection as in online banking (AES128 encryption)
  • Power supply via battery operation, alternatively the transmitter can supply the connected detector with power via the batteries
  • Very safe and reliable thanks to EN50131 Grade-2 certification
  • Can be used as a vibration sensor (thanks to integrated acceleration sensor)

Downloads

General downloads:

Declarations of conformity:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Comfion Wireless-Transmitter
Comfion Wireless-Transmitter
Specifications
Battery - max. battery life: 4,5 y
Battery - quantity: 3
Battery - type: LR123A 3V
Compatible with: Comfion
Dimensions: 43 x 84 x 16 mm
Display: LED
Environmental class: II
Gross weight: 0,081 kg
Height: 84 mm
Housing material: no housing
Inputs: Alarm / Sabotage Terminal
Installation location: Indoor
Length: 16 mm
Max. operating temperature: 50 °C
Max. receiving range (free field): 1.000 m
Max. transmission range (free field): 1.000 m
Min. operating temperature: -20 °C
Modulation: 2FSK
Net weight: 0,033 kg
Operation: Comfion App
Outputs: DC-Terminal 3.3V
Programming: Comfion App
Radio frequency: 868 MHz
Radio power: 25 mW
Sabotage monitoring: Yes
Sensor type: accelerometer
Voltage monitoring: Yes
Width: 43 mm
