Key Switch incl. ABUS Quality Cylinder Key Switch incl. ABUS Quality Cylinder

Key Switch incl. ABUS Quality Cylinder

Description

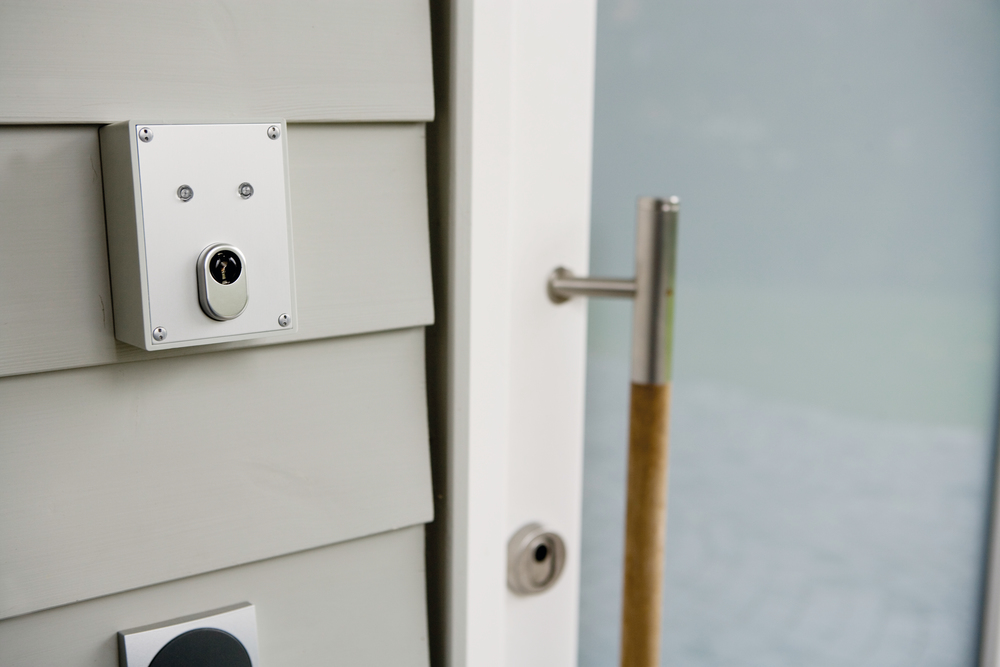

Use the surface mount key-switch to arm and disarm your alarm system. Simply turn the key instead of entering a PIN code. Operating your system is faster and easier. Apart from the arm/disarm function of the alarm system (or individual partitions), you can use the surface mount key-switch to control electronic equipment (entrance lighting, garage door, etc.). Two switch contacts are provided. You can set these as a permanent contact or as a pulse generator. The two colored LEDs permanently inform you about the state of connected devices. For example, you can see if the system is currently armed or disarmed. The reinforced fascia plate, the high-quality ABUS cylinder and a robust weatherproof housing (IP 55) protect the key-switch against external influences. The surface mount key-switch is designed for half-cylinders (10/30). It is available for both surface and flush fitting. The surface-fitted variant is protected from tampering by a cover contact and an anti-removal wall contact.

Individual component

Surface Mount Key-Switch
Operation
Surface Mount Key-Switch
to the product

Product advantages

  • Easy installation and operation
  • Easy to activate and deactivate by turning key
  • For on-wall mounting
  • High security thanks to core extraction protector as well as cover and wall sabotage switch
  • Sturdy housing

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Key Switch incl. ABUS Quality Cylinder
Key Switch incl. ABUS Quality Cylinder
Specifications
DC voltage supply: 10-15 V
Dimensions: (WxHxD) 117x85x42 mm
Height: 87 mm
Housing material: ABS
IP protection class: 55
Installation location: Surface fitting
Length: 55 mm
PSTI conformity required: No
Power consumption: 2 mA
Sabotage monitoring: Yes
Status display: Yes (2 LEDs)
Width: 117 mm
