Secvest Wireless Magnetic Contact FSL (white)

Description

FUMK50010W Reliable alarm triggering in the event of intrusion

The wireless opening detector detects and reports the unauthorised opening of doors and windows using a magnetic contact. In such cases, it informs the wireless alarm panel, which then triggers a corresponding alarm.

Detection and reporting

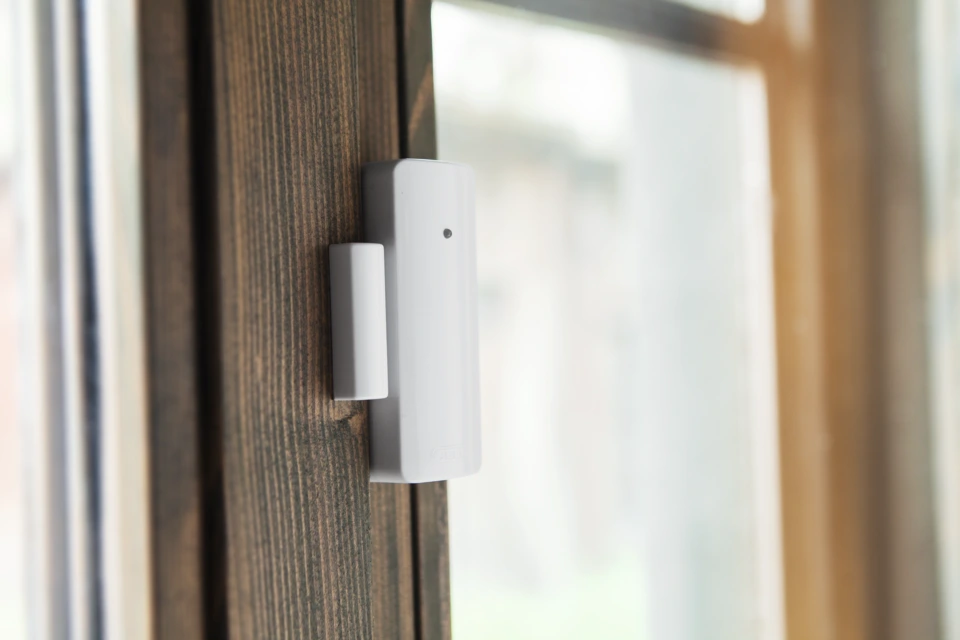

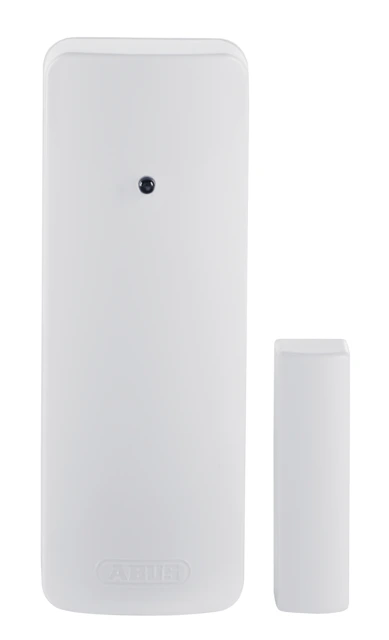

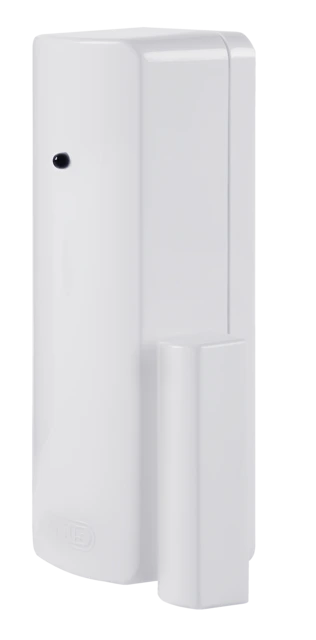

This product consists of a detector and a magnet. These components are mounted parallel to each other on the moving part of the window or door and on the window or door frame. The detector triggers as soon as the distance between the two contact points is increased when the window or door is opened. The components can be mounted on the bottom window frame in order to allow a window to be tilted open without disrupting the magnetic contact.

Even greater protection with additional wired alarm zones
The wireless opening detector also allows the wiring of additional detectors in order to effectively enhance intrusion protection. The detector can be connected to a passive glass breakage detector, for example, which can be mounted to the window pane and detects window breakages. The wireless opening detector for the Secvest wireless alarm system is available in white and brown.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners

EN50131 Grade 2 Logo

Product advantages

Reliably detects opening of windows and doors
Connection option for additional wired detectors
Can be used as a wireless module
Tamper monitoring

Downloads

General downloads:

Certificates:

VdS home

Declarations of conformity:

CE certificate

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Secvest Wireless Magnetic Contact FSL (white)

Specifications

Battery - max. battery life:	2 y
Battery - type:	3V CR2 Li/MnO2
Certifications:	VdS home,EN 50131 Grade 2
Colour:	white
Compatible with:	Secvest, Terxon, BUMO60040
Connections:	Screw terminal (FSL)
DC voltage supply:	3 V
Dimensions:	(WxHxD) 33x89x29 mm
Environmental class:	I
Height:	89 mm
Housing material:	ABS
Installation location:	Windows, doors
Length:	29 mm
Max. operating temperature:	55 °C
Max. transmission range (building):	30 m
Max. transmission range (free field):	100 m

Min. operating temperature:	-10 °C
Modulation:	FM
Net weight:	0,076 kg
PSTI conformity required:	No
Power consumption:	30 mA
Radio frequency:	868,6625 MHz
Radio power:	10 mW
Sabotage monitoring:	Yes
Security level:	2
Sensor type:	Reed contact
Status display:	Yes
Type of detection:	Magnetic field measurement
VdS class:	other
Voltage monitoring:	Yes
Width:	33 mm
