BRIDGE One black

No matter where you are, thanks to BRIDGE One you can connect ABUS One products to your Wi-Fi network and experience the benefits of a smart home. Simply open your front door or patio door for others via the app – it's easy with ABUS One.

All variants for BRIDGE One

Icon remote control © ABUS — **Remote Control** 142 / 5.000 Simply connect your ABUS One products to the Wi-Fi and control them on the go with the free app on your mobile device.

Icon voice control © ABUS — **Voice control** Control your ABUS One products conveniently via voice command by simply connecting them to one of the common voice assistants.

Icon log © ABUS — **Event log** Stay in control of your ABUS One products and access the event log from anywhere so you don't miss any important information.

Description

BRIDGE One ACCESS FROM EVERYWHERE

BRIDGE One connects your ABUS One devices to your Wi-Fi network and to the internet.

It allows you to stay in control of access to your home – no matter whether you're travelling or at work. With its help and the ABUS One app, you can access and manage your smart locks from any location. Receive real-time event notifications and stay up to date with what's happening at your door.

Opening the lock for friends remotely so they can water your flowers?No problem thanks to BRIDGE One. Or do you rent out holiday accommodation and want to send your guests a temporary or unlimited numerical code for your KEYGARAGE One where the keys are stored? You can then set a numerical code in the app from anywhere, send it to the holiday guests and even see in the event log when they took the keys out of the smart key box. If you wish, you can receive a push notification on your mobile device when the key box is opened.

Further smart home options are available if you link voice assistants or set up routines in your smart home system. Just one voice command in your home and the door opens – made possible by the BRIDGE One.

Application example - BRIDGE One scope of delivery

Awards & Partners

Works with ABUS one

Technologies

Compatible with all common Wi-Fi standards (IEEE 802.11 a/b/g/n/ac; 2.4 GHz, 5 GHz)
Requires an internet connection and a free socket (230 V) at a maximum distance of 5 metres from the ABUS One product to be controlled

Operation and use

For remote control of ABUS One products
Remote locking and opening ABUS One locks via app
Check access history on the go
Integration into a smart home and linking with voice assistants

Variants

Colours: black, white

Downloads

General downloads:

abus.design.pdp.tabs.downloads.app_downloads:

FAQ

Installing the BRIDGE One

How do I fit the BRIDGE One?
You have three options for mounting your BRIDGE One and connecting it to a power socket:

Directly at the socket
Standing on the base
Mounted on the wall

You will find illustrated explanations in the operating instructions and in the app.

How do I activate the BRIDGE One in the ABUS One app?
This is done quickly. Either click on "ADD NEW ABUS DEVICE" on the start page of the ABUS One app or go to the page of one of your ABUS One devices in the ABUS One app and click on the "ADD WLAN BRIDGE" button at the bottom of the WLAN BRIDGE section. Next, scan the QR code on the keycard.

If you have already set up the BRIDGE One via a power socket, you can skip the tutorial and select your Wi-Fi network directly and enter the Wi-Fi password. If your network is not displayed automatically, simply enter the name of your Wi-Fi network in the SSID field.

Once setup is complete, your BRIDGE One is linked directly to your ABUS One device.

How far can the distance between the BRIDGE One and the ABUS One device be?
The ABUS One device to be controlled and the BRIDGE One should not be more than five metres apart.

Can I also connect the BRIDGE One to several devices?
Yes, your BRIDGE One works with up to five devices. So you can connect your WINTECTO One at the patio door, your LOXERIS One at the front door or your KEYGARAGE One to the same BRIDGE One.

On the app page of the ABUS One device, you can connect the BRIDGE One to the respective ABUS One device by clicking the "ADD WLAN BRIDGE" button and scanning the keycard.

Please note, however, that the BRIDGE and the device to be controlled should not be more than five metres apart.

Can I connect all ABUS One products to the BRIDGE One?
You can connect the following products to the BRIDGE One:

WINTECTO™ One
LOXERIS™ One
KEYGARAGE™ One 787 for wall mounting
KEYGARAGE™ One 797 with hanger

Functions of the BRIDGE One

When do I need a BRIDGE One?
You need the BRIDGE One if ...

... you want to control your ABUS One device remotely (e.g. locking and unlocking).
... you want to assign, change or delete numerical codes remotely (e.g. for the KEYGARAGE One or for the separate keypad).
... you want to assign authorisations to ABUS One app users remotely.
... you want to send remote invitations to contacts to use the app.
... you want to manage authorisations remotely (e.g. time restrictions or cancellation of authorisations).
... you want to receive remote push notifications and view the event log.
... you want to integrate your ABUS One device into your smart home.
... you want to operate your ABUS One device using the voice assistant.

Smart home and use of voice assistants

Do I need the BRIDGE One for the integration of voice assistants?
Yes, if you also want to control your ABUS One devices via voice assistants, you must use the BRIDGE One, as it connects the devices communicating via Bluetooth® to your WLAN.

How do I connect the BRIDGE One to my smart home or voice assistant?
Go to the page of your BRIDGE One via the main page of your ABUS One app. Here you will find the menu item "Smart Home". Select the appropriate voice assistant here and the app will guide you through the integration of ABUS One into your smart home in just a few steps.

Questions about the technology of the BRIDGE One

Which network standards does the BRIDGE One support?
The BRIDGE One works with the common WLAN standards IEEE 802.11 a/b/g/n/ac in both the 2.4 GHz and 5 GHz frequency ranges.

How is the BRIDGE One supplied with power?
The BRIDGE One requires a permanent power supply (230 volts) and is connected to a power socket. A USB cable and a socket adapter are included in the packaging.

How is the BRIDGE One secured against unauthorised access?
The BRIDGE One communicates with AES 128-bit encryption and also features the proven ABUS SmartX™ technology, which makes the Bluetooth® connection even more secure. These technologies allow connected devices to be operated securely via app.

In order to offer the greatest possible security, the ABUS Keycard is also used as physical proof of ownership. It is unique and is used to unlock and verify components using a personalised QR code.

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Your BRIDGE is where you need it:

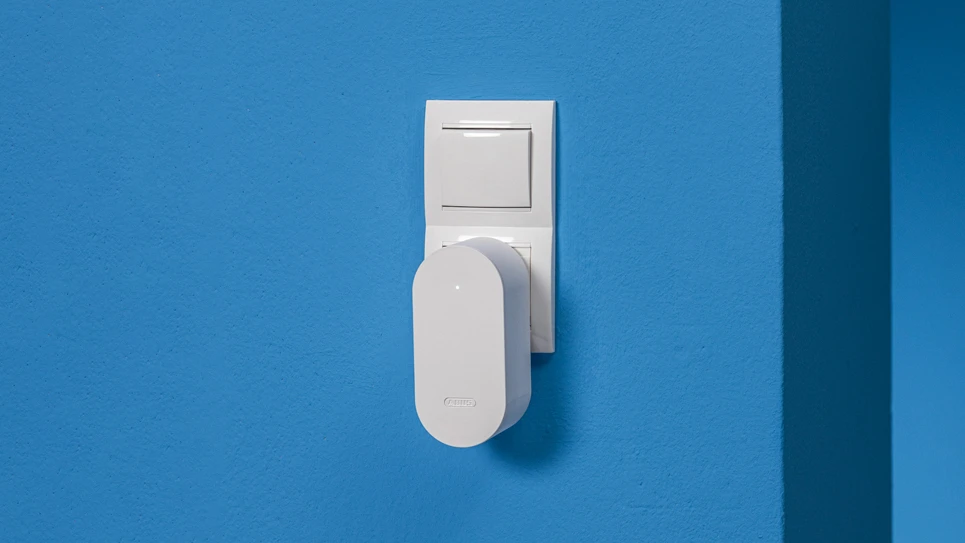

BRIDGE One in white plugged into a socket on a blue wall © ABUS

In the socket

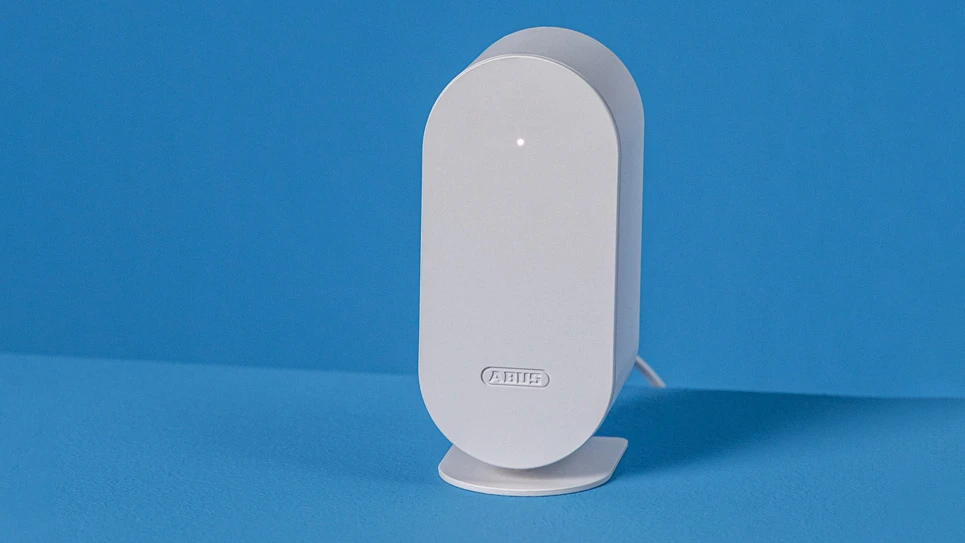

BRIDGE One in white standing against a blue background © ABUS

On the Cupboard

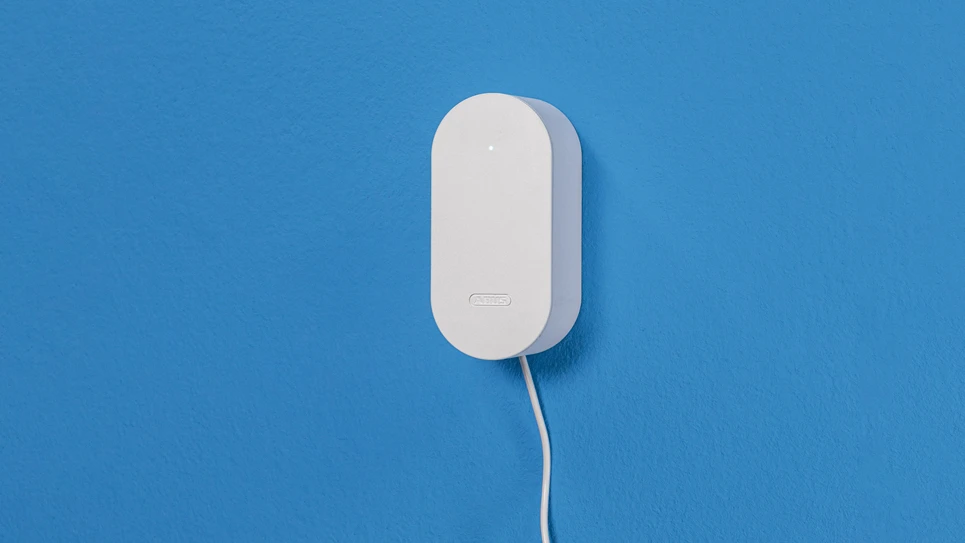

BRIDGE One in white hanging on the wall against a blue background © ABUS

Mounted to the wall

DISCOVER THE FREEDOM OF SMART CONVENIENCE

Control your patio door with the WINTECTO One, your front door with the LOXERIS One or manage your smart key box KEYGARAGE One via the Internet from anywhere - whether you are at work or traveling. In combination with the BRIDGE One, you get access to many convenient functions.

Open or lock your door on the go with just one touch in the app, check the current status of your locks in real time, look in the event log to see who used them and at what time, or assign access authorizations.

In addition, you can integrate your smart locks into your smart home with the BRIDGE One and control them intuitively by voice using voice assistants or integrate them into smart routines. An example is: open the door, turn on the light.
