New

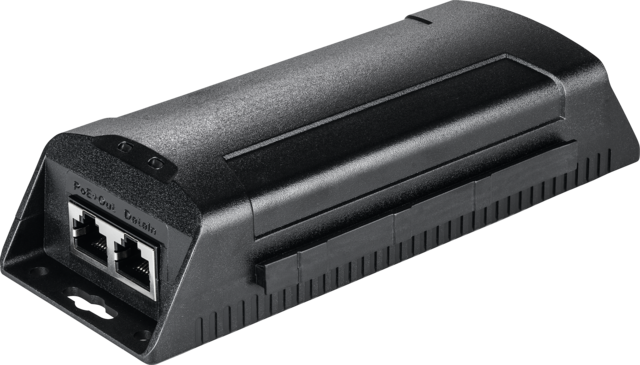

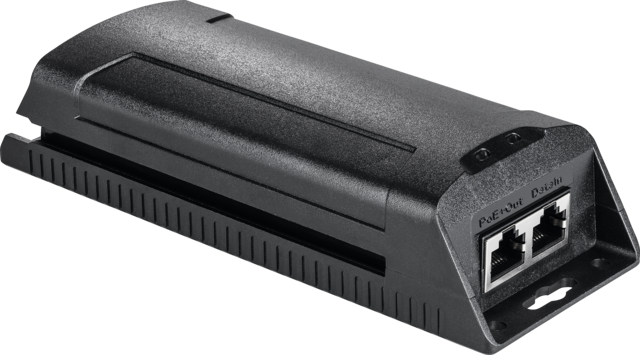

PoE Injector, 30 W

Description

Minimise the need for cables when installing IP cameras. Using the Power over Ethernet (PoE) injector, the data and IP camera power supply are fed into an Ethernet line. Power is then supplied exclusively via the network cable - a separate power line is no longer necessary. Additionally, you are no longer reliant on an available power supply (socket etc.) when selecting the camera location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • For transmitting power and data via network cable to all PoE capable network cameras
  • Transmission range up to 100 m
  • PoE+ with 30 W output power
  • Meets IEEE 802.3af/at, IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T standard

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

PoE Injector, 30 W
PoE Injector, 30 W
Specifications
AC voltage supply: 100 - 240 V
Connection type: RJ-45
Data output: 10/100/1000 MB/s
Dimensions: (W x H x D) 64 x 60 x 160 mm
Height: 60 mm
Language of instructions: DE, GB
Language packing: DE, GB, FR, NL, DK, IT
Max. humidity: 90 %
Max. operating temperature: 55 °C
Min. operating temperature: -10 °C
Net weight: 0,2 kg
Output power: 30 W
PSTI conformity required: No
PoE standard: 802.3af/at
Width: 64 mm
