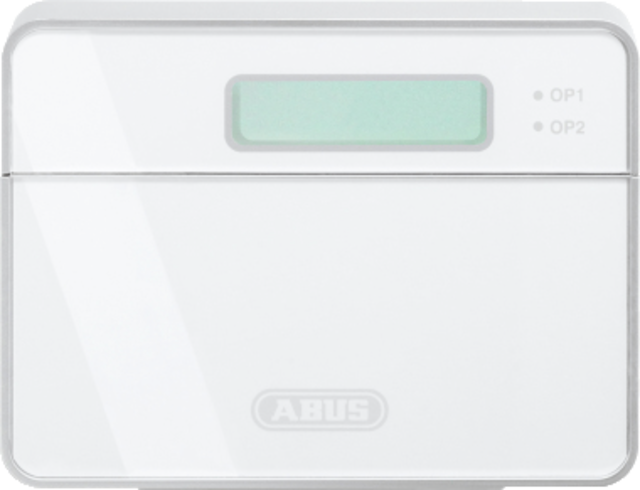

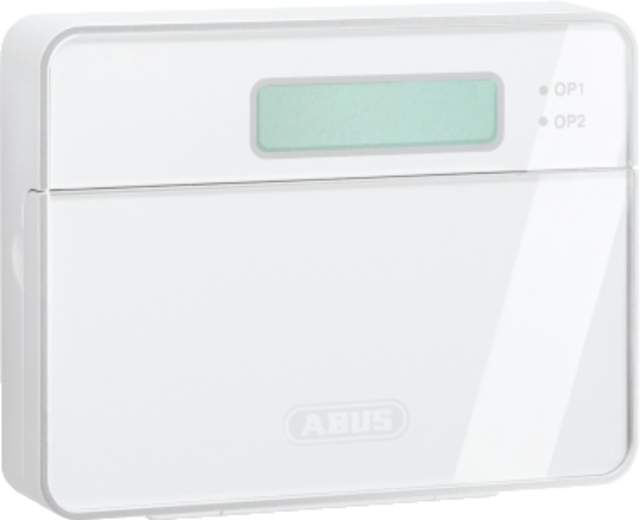

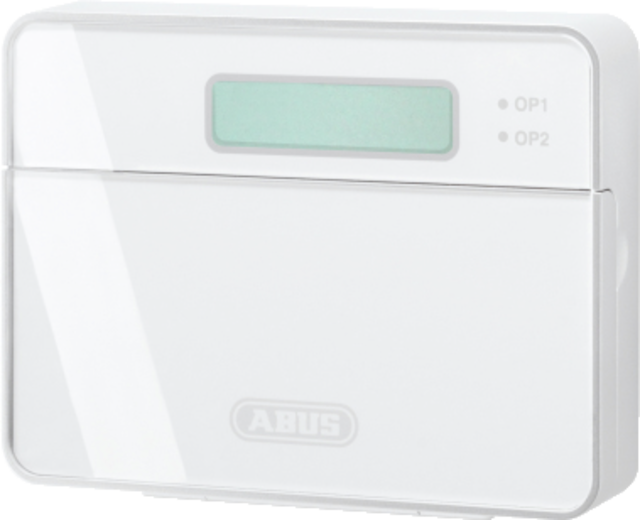

Terxon GSM dialer right view Terxon GSM dialer front view Terxon GSM dialer front view

Terxon GSM Dialer

Description

As soon as a detector triggers an alarm in your building, your alarm panel knows the current status. The Terxon GSM dialer transmits this information as an SMS or voice message via an analog telephone line or mobile wireless network to up to eight telephone numbers that are saved by you in the foreground. In the event of an alarm, the speech dialling unit transmits two pieces of information: an identification text and an event text (SMS or voice). The identification text (station message) conveys general data (name, address) and the event text conveys events that are defined by you (break-in, fire, medical emergency, system fault, etc.). You can save 8 event texts of any kind, the station message and 8 reset messages. Each voice message can be 30 seconds long or 40 characters long. The speech dialling unit is installed between the alarm system and telephone line. It has eight inputs, which activate the event text provided for this purpose in the event of an alarm. In addition, up to 4 outputs can be switched via the speech dialling unit. The switching of an output can be assigned to particular events or started remotely (manually). Via the listening and speaking mode, you can listen in on the property and talk through the loudspeaker on it by means of the integrated microphone. The dialling unit is programmed via a menu-driven LCD display. The SD 3 speech dialling unit fits visually with the Terxon alarm center and its components due it its elegant white design.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • TBR/CTR-21 compliant
  • Message transmission by PSTN and GSM
  • Voice or SMS messages possible
  • Also usable as a standalone communication module
  • Remote access by telephone
  • Illuminated display

Downloads

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Connections: Screw terminal for PSTN and power supply
DC voltage supply: 10,5-28 V
Dialling procedure: DTMF (multi-frequency method, tone dialing method)
Dimensions: (WxHxD) 150x115x30 mm
Display: Illuminated segment display
Height: 115 mm
Housing material: ABS
IP protection class: 32
Inputs: 8
Language of instructions: 5 languages (UK, DE, FR, NL, DK)
Language packing: 5 languages (UK, DE, FR, NL, DK)
Length: 30 mm
Max. operating temperature: 55 °C
Memory location telephone numbers: 10
Min. operating temperature: -10 °C
Net weight: 0,36 kg
Number of voice messages: 8
OSD language: 5 languages (UK, DE, FR, NL, DK)
Outputs: 4 transistor outputs (OP), negative switching, max. current output 100 mA / 12 V DC per output
PSTI conformity required: No
Power consumption: 50 mA
Programming 1: Menu
Recording duration: 0,0083333333333331 h
Remote access: Yes
Sabotage monitoring: 1
Transmission path: GSM, PSTN
Transmission type: Language, SMS
Type of inputs: Positive/negative controllable inputs (5-24 V DC)
Voltage monitoring: Yes
Width: 150 mm
