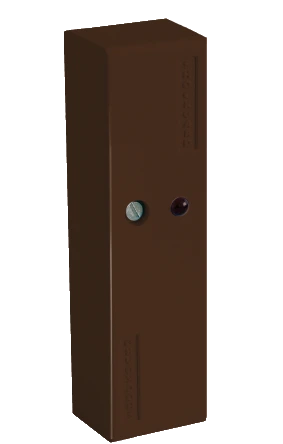

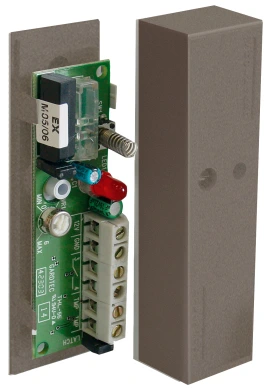

Seismic alarm sensor, brown front view Seismic alarm sensor, brown right view

Seismic Alarm Sensor (brown)

Description

The seismic alarm sensor reacts to seismic signals and vibrations. Vibrations such as those caused by attempts to break in are detected and reported to the alarm panel. The sensor registers the vibration of the surface on which it is mounted. The best place to install the seismic alarm sensor is on objects that are not to be moved (a safe, or other valuable objects) or penetrated (wooden doors, glass walls, plaster walls). The detection diameter is up to 4 meters, depending on the material. Large wooden walls or window frontages can be protected with a single sensor. The patented frequency analysis detects the difference between knocks and penetrations. This protects the sensor from false alarms. On the seismic alarm sensor, you can choose between two sensitivity levels by means of a jumper. You can make fine adjustments to this setting with a sensitivity potentiometer. An LED alarm memory is integrated in the seismic alarm sensor. When the sensor triggers, the LED lights up. The alarm memory is not reset until the voltage supply is removed (1 second). The operating voltage is between 9 and 16 V DC. The seismic alarm sensor is available in white (EM2000W) and brown (EM2000B).

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Innovative seismic detector
  • Detects all types of vibrations, such as from breaking or prying open, breaches or movement
  • Adjustable to two sensitivity levels

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

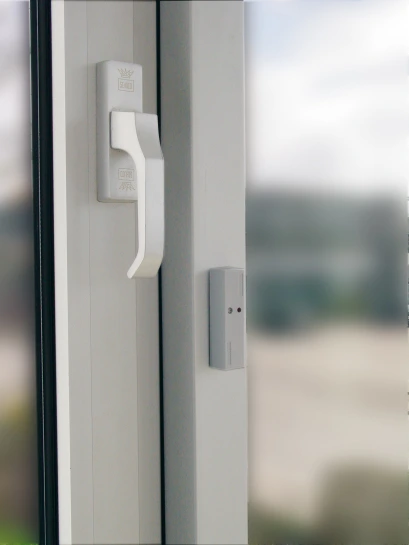

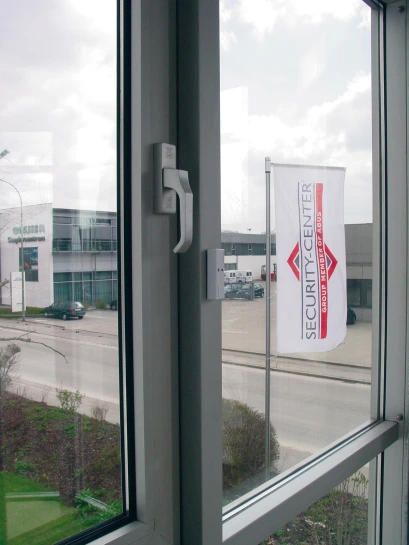

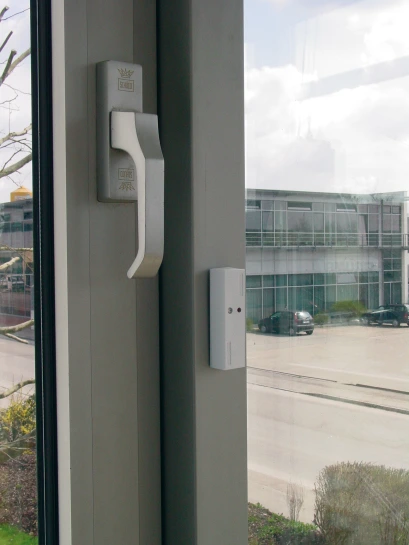

Seismic alarm sensor, brown Example of application
Seismic alarm sensor, brown Example of application
Seismic alarm sensor, brown Example of application
Seismic alarm sensor, brown Example of application
Seismic alarm sensor, brown Example of application
Seismic alarm sensor, brown Example of application
Specifications
Adjustable sensitivity: Yes
Connections: NC, 150 mA, 24V DC, 10 Ohm 1/4 P
DC voltage supply: 9-16 V
Dimensions: (WxHxD) 25x85x23 mm
Display: Yes
Height: 85 mm
Housing material: ABS
Length: 23 mm
Max. operating temperature: 60 °C
PSTI conformity required: No
Power consumption: 9 mA
Sabotage monitoring: 1
Sensor type: Piezo sensor
Status display: Yes
Type of detection: Vibration detection
Width: 25 mm
