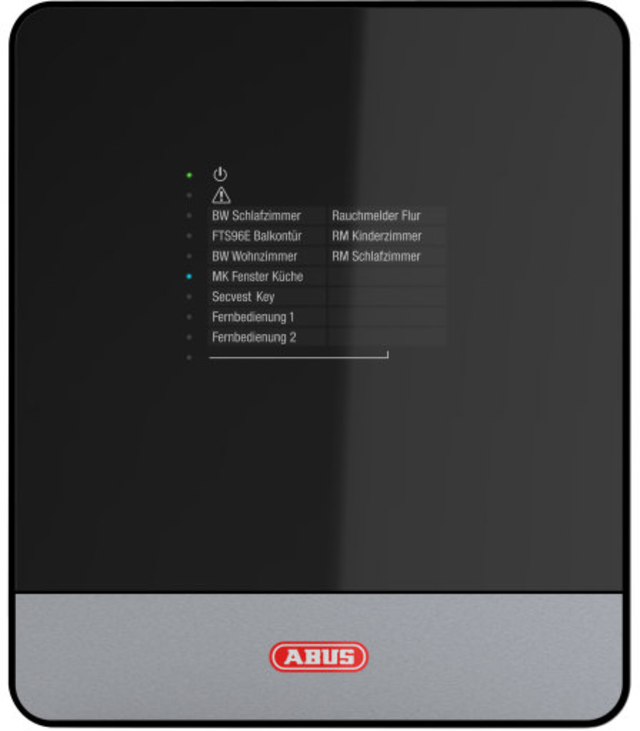

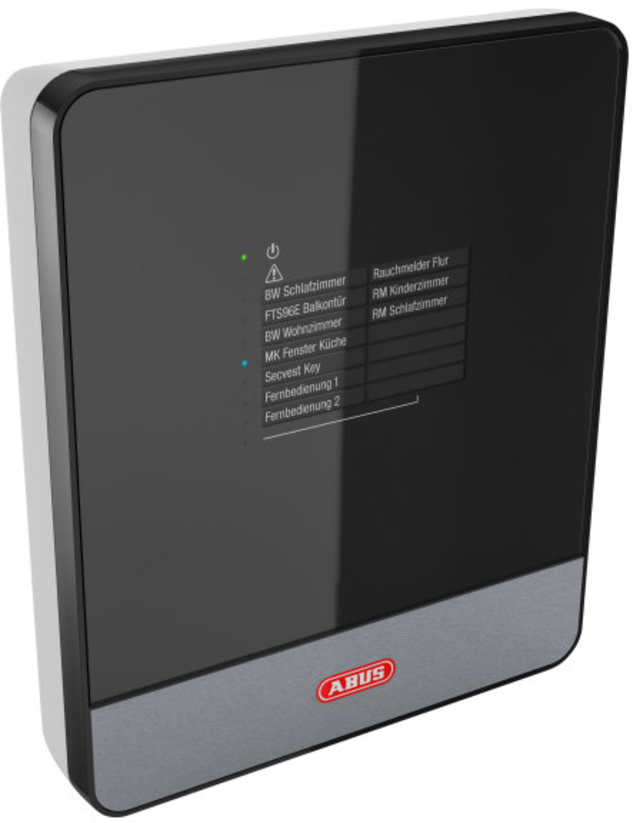

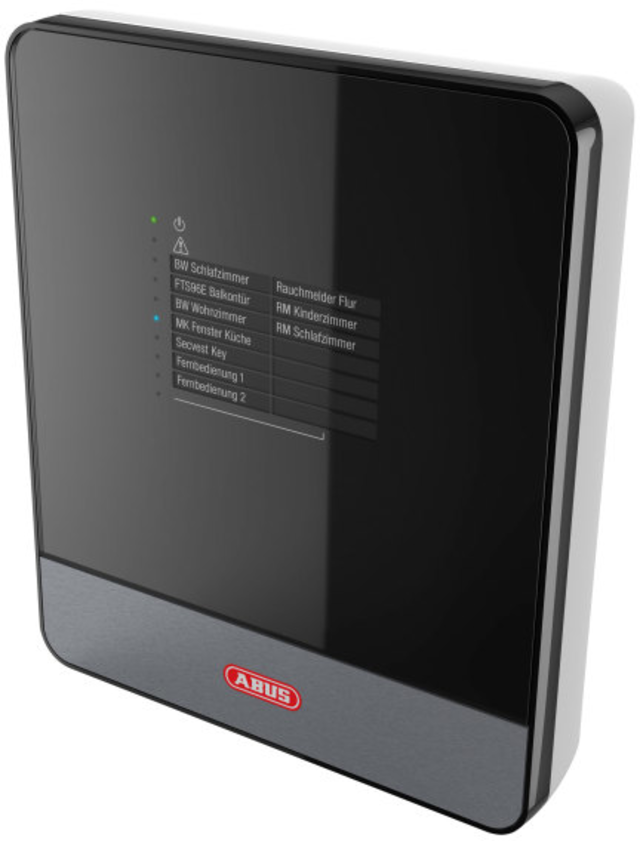

Secvest IP Wireless Alarm Control Panel

Description


For use in flats and smaller properties.
The Secvest IP system combines alarm technology with brilliant video technology and thus creates an innovative IP-based system which reliably warns you about break-ins, fire and water – including push notifications for mobile devices. In an emergency, alarms can be verified via a connected PIR network camera which provides a true picture of the situation. The centre can be operated using a web browser or iPhone / iPad application, so that direct access to the Secvest IP wireless alarm centre is not necessary. Internal activation is also possible.
The 10 LEDs on the centre are used to indicate its status, plus the status of detectors and operating elements. Alarm messages are completely IP-based. An e-mail is sent in the event of an alarm – including an attached image (when the PIR network camera is connected). Alternatively, the centre can inform you of an alarm by voice message by calling a mobile device, PC or landline phone using VoIP. The optional internal siren is used to indicate local alarms. Additionally, the Secvest IP enables access to the saved alarm images on the connected PIR network cameras. The Secvest IP can be expanded by two IP alarm zones using the optional IP alarm module.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Individual component

International Switching-Mode Power Supply 13,8 V/1,7 A
Secvest 2WAY wireless alarm system
International Switching-Mode Power Supply 13,8 V/1,7 A
  • 13.8 V optimal external power supply
  • Suitable for FUAA50000, FUAA50500

Product advantages

  • Up to 11 wireless detectors in three zones and 3 additional operating units
  • Push notification to iPhone and iPad
  • Programming and operation via integrated web server
  • Active alarm verification via video motion detection (in conjunction with PIR network camera)
  • Alarm images are saved in the alarm panel
  • E-mail notification of alarms
  • Compatible with IP alarm module
  • Internal arming possible
  • Voice notification of alarms
  • Fast notification through Voice-over-IP calls with voice message in case of alarm

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Access protection: User name, password
Active intrusion protection: With mechatronic components (jimmying attempt monitoring only in the active state)
Alarming: E-mail, VoIP (landline, cellular communication, VoIP client) and push notification
Backup power supply: Yes
Battery - type: 12 V, 1.2 Ah
Communication/alarm: email
DC voltage supply: 13.8 V
DSL monitoring: Yes
Dimensions: (WxHxD) 193x233x45 mm
Display: Status LEDs
Duplex antenna technology: Yes
Environmental class: II
Event memory: Yes
Expandable (radio): Yes
Fuse: Reverse polarity protection
Gross weight: 2,56 kg
Height: 233 mm
Housing material: ABS
IP protection class: 34
Installation location: With surrounding conditions optimally adjusted for wireless performance
Integrated siren: No
Language of instructions: 12 V, 1.2 Ah
Language packing: DE, UK, FR, NL, DK
Length: 45 mm
Max. backup power supply duration: 5 h
Max. humidity: 75 %
Max. operating temperature: 55 °C
Max. receiving range (building): 30 m
Max. receiving range (free field): 100 m
Max. transmission range (building): 30 m
Max. transmission range (free field): 100 m
Min. operating temperature: 0 °C
Modulation: FM
Net weight: 0,76 kg
Network access: RJ-45 Ethernet 10/100 Base-T
Network protocols: TCP/IP, DHCP, SMTP, DNS, NTP, HTTP
Number of control devices: 3
Number of events: 500
Number of remote controls: 3
Number of users: 2
Number of virtual IP zones: 3
Number of wireless zones: 3
OSD language: DE, UK, FR, NL, DK
Operation: Local: via Secvest Key, wireless remote control, wireless additional door lock; remote: online via web interface, iPhone/iPad app
Outputs: 1xrelay, 4xtransistor
PSTI conformity required: No
PSU: External
Power consumption: 1.200 mA
Programming: Via integrated seb-server
Radio alarm bandwidth: Narrow band
Radio frequency: 868,66 MHz
Radio power: 10 mW
Remote configuration: Yes
Sabotage monitoring: Yes
Sub-areas/monitoring areas: 1
Supported browsers: Safari 5, Mozilla Firefox 5, Google Chrome, Internet Explorer 9
Switching outputs: 7
Video verification: Optional with PIR network camera
Voltage monitoring: Yes
Width: 193 mm
