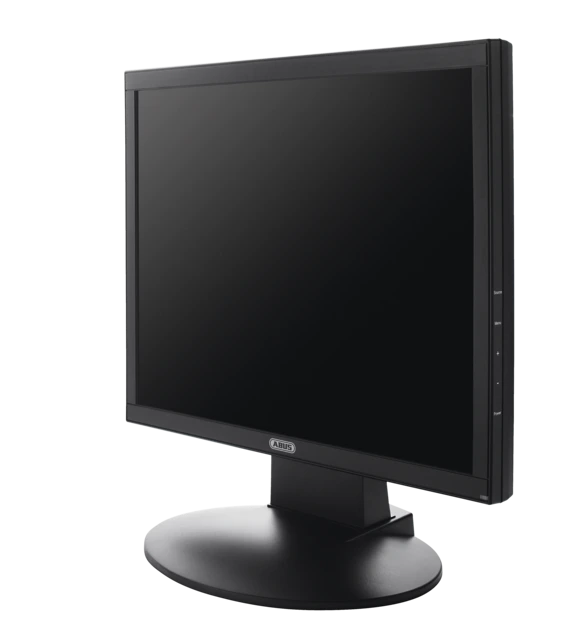

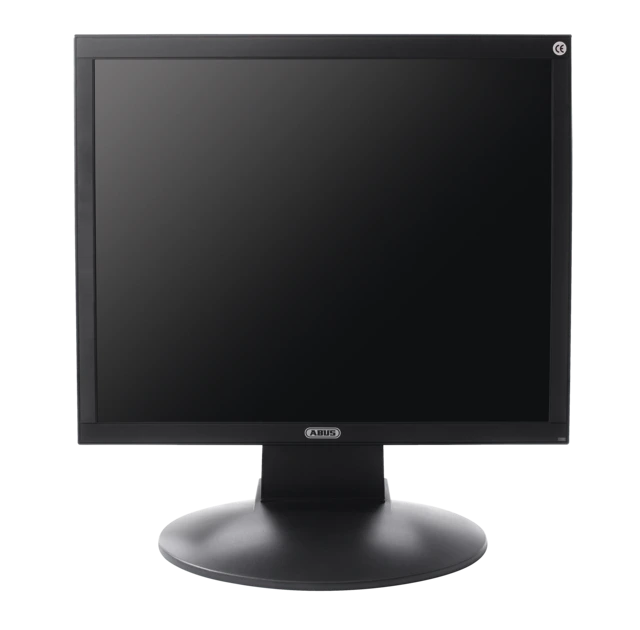

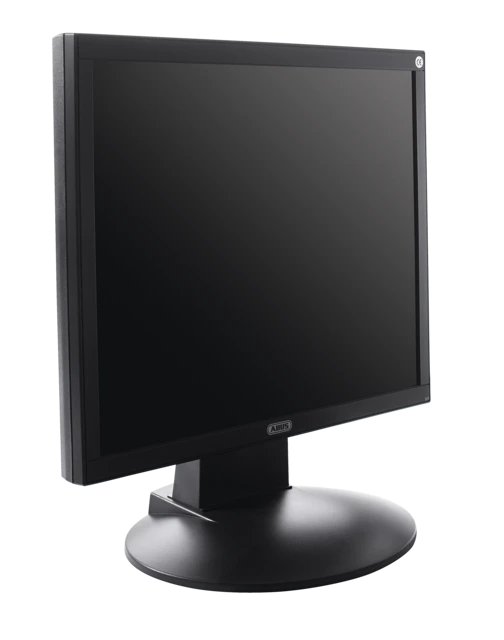

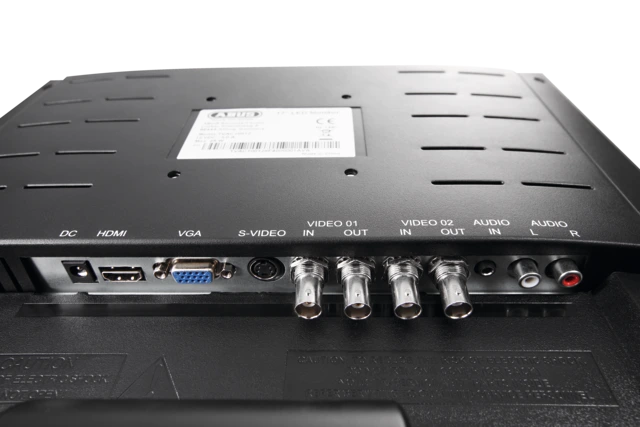

17" LED Monitor front view right 17" LED Monitor front view 17" LED Monitor front view left 17" LED Monitor back view

17" LED Monitor with BNC input

Description




Detailed surveillance pictures
With its high resolution, outstanding picture fidelity and rapid reaction time, the monitor produces accurate surveillance pictures. The LED backlighting ensures optimum contrast and an extremely realistic colour display.
With the picture-in-picture and picture-over-picture functions, multi-tasking is quick and simple. With the aid of picture-in-picture, a small preview window can be conveniently displayed.


Versatile connections
The HDMI, VGA and BNC video inputs offer flexibility for connecting the monitor to a recorder, live cameras or a computer. Integrated loudspeakers and audio inputs also allow sound signals to be played back. All of these features make the monitor a cost-effective component for versatile surveillance and IT systems.


Efficient uninterrupted 24/7 use
Thanks to high-quality industry components, the monitor is optimally suited for uninterrupted 24/7 use. The energy-efficient LED display ensures very low power consumption.


Easy installation
VESA standard mounts allow mounting to a wall or ceiling. This makes installation fast and easy.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Resolution: 1280 x 1024 pixels
  • Fast reaction time (5 ms)
  • LED background lighting: brilliant colour display and contrast
  • Graphical on-screen display (OSD)
  • Connections: HDMI, VGA, S-Video, 2 x BNC in/out, 2 x cinch (audio), PC audio input
  • Integrated loudspeaker
  • Low power consumption (LED technology)
  • For wall and ceiling installation (with VESA mount)

Downloads

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Brightness: 250 cd/m²
Certifications: CE
Colour levels: 16,7
Comb filter: 3D
Connections: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x PC Audio, 2 x Chinch Audio, 2 x BNC Out
Contrast ratio: 1.000:1
DC voltage supply: 12 V
Dimensions: 372 x 370 x 50 mm
Display surface: matte
Gross weight: 4,6 kg
Height: 370 mm
Housing material: Plastic
Image format: 5:4
Input: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x PC-Audio, 2 x Chinch-Audio
Length: 50 mm
Loudspeaker: 2 x 2,5 W
Max. humidity: 70 %
Max. operating temperature: 45 °C
Min. operating temperature: 0 °C
Monitor type: LED
Net weight: 3,3 kg
Output: 2 x BNC
Power consumption: 2 mA
Reaction time: 5 ms
Screen diagonal: 17 in
Signal detection: Automatic
Video system: PAL / NTSC
Viewing angle horizontal/vertical: 170° x 160°
Width: 372 mm
