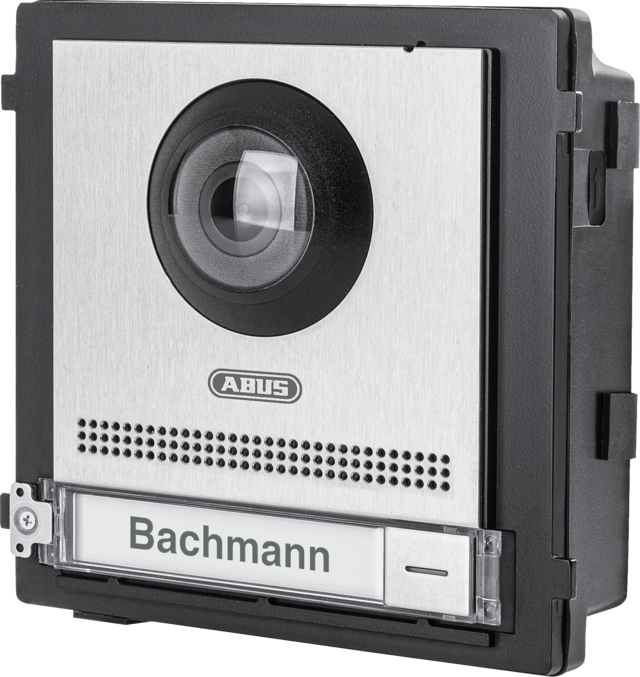

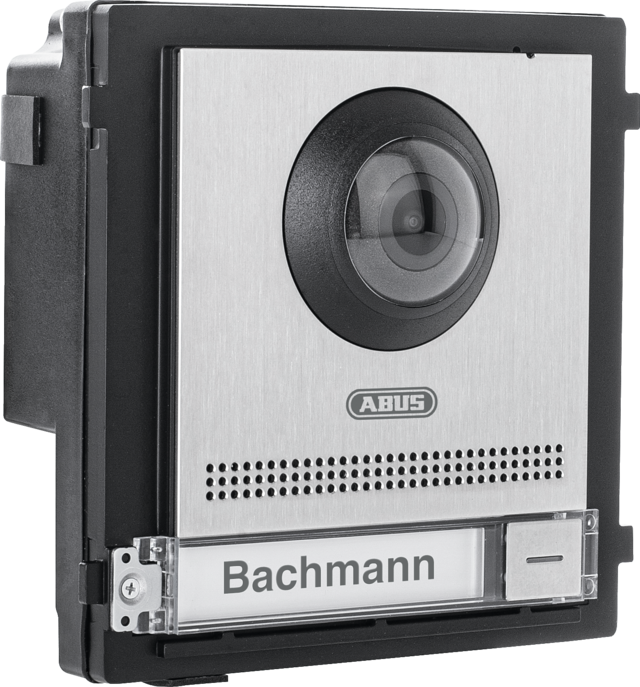

IP video module for door intercom (stainless steel)

Description



See people in front of the door, talk to them, open the door. Easy to install, modularly adaptable to any building - and the individual wishes of the users.

The optimal video call station
The video module is the central control unit of the ModuVis system. With camera, microphone and loudspeaker for intercom and bell button, it forms the basic configuration for an intercom station with 1 bell. It transmits speech clearly and without distortion. The integrated 2 megapixel camera overlooks the entrance area during a ringing event - thanks to IR LEDs by day and night. An electronic door opener (door buzzer) is connected to the relay input/output.

Comfortable operation: monitor or app
The user operates the ModuVis system (video module, other modules) on the 7"". monitor or on the smartphone/tablet via ABUS Link Station App.

IP installation (PoE)
Communication between the TVHS20000S IP video module, monitor and other modules is via the IP network. Simply wired using PoE installation - without a separate power line. 2-wire variant: see TVHS20010S.

Totally modular, extensively expandable
A clear advantage: depending on the number of flats and local requirements, additional modules are simply added to the system. In this way, up to 49 rings are possible - and at least one monitor is integrated for each party. The added security: up to 16 IP cameras can be integrated for video surveillance. Whichever variant of video module and monitor is selected (IP/PoE/WLAN or 2-wire) - the systems are compatible with each other.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • IP video module for ModuVis door intercom system as basic configuration of an Intercom station (1 bell), can be extended with further modules to up to 49 bells
  • Central control unit of the door intercom system (mandatory for every PoE installation)
  • 2 MPx day/night camera with IR-LEDs and 180° viewing angle for optimal overview during ringing events (no continuous monitoring)
  • Push alarm on mobile device via ABUS Link Station App
  • High-quality microphone and loudspeaker for very high speech quality (clear sound of voices, filtering out background noise)
  • Bell button with backlighting
  • PoE network connection
  • Further relay inputs/outputs e.g. for door opener (door buzzer)
  • 2 doors can be controlled (e.g. for garden gate)
  • Weatherproof IP65, can be flexibly mounted using a mounting frame(surface-mounted or flush-mounted)

Downloads

General downloads:

Additional information:

Software:
Installation software:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
IP video module for door intercom (stainless steel)
IP video module for door intercom (stainless steel)
Specifications
Alarm output: 2 (30 V, 1 A)
Audio: Built-in microphone and speaker
Connectible devices: TVHS20020, TVHS20030, TVHS20040, TVHS20340
Connections: 1 x RJ45, 1 x DC, 4 x alarm input, 2 x alarm output
DC voltage supply: 12 (+/-10 %) V
Dimensions: 98 × 99.8 × 43.9 mm
Display: 2-Way Audio
Height: 99,8 mm
Horizontal viewing angle: 180 °
IP protection class: 65
IR LEDs: Yes
Image enhancement: BLC, DNR, WDR
LAN network access: RJ45 10M/100M self-adaptive
Length: 43,9 mm
Lens: Fix
Loudspeaker: Yes
Material: Front: Stainless Steel / Back: Plastic
Max. humidity: 0,95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1.920 x 1.080 @ 25 fps
Microphone: Yes
Min. operating temperature: -40 °C
Network access: RJ45
Network camera protocols: TCP/IP, RTSP
PSTI conformity required: No
PoE standard: IEEE 802.3af
Power consumption: 10 W
Resolution: 2 MPx
Resolution modes: Stream 1: 1.920 x 1.080 @ 25 fps, Stream 2: 720 x 480 @ 25 fps
Sabotage monitoring: Yes
Vertical viewing angle: 96 °
Video compression: Stream 1: H.264, Stream 2: H.264
Width: 98 mm
