Padlock Steel Rock 83/80

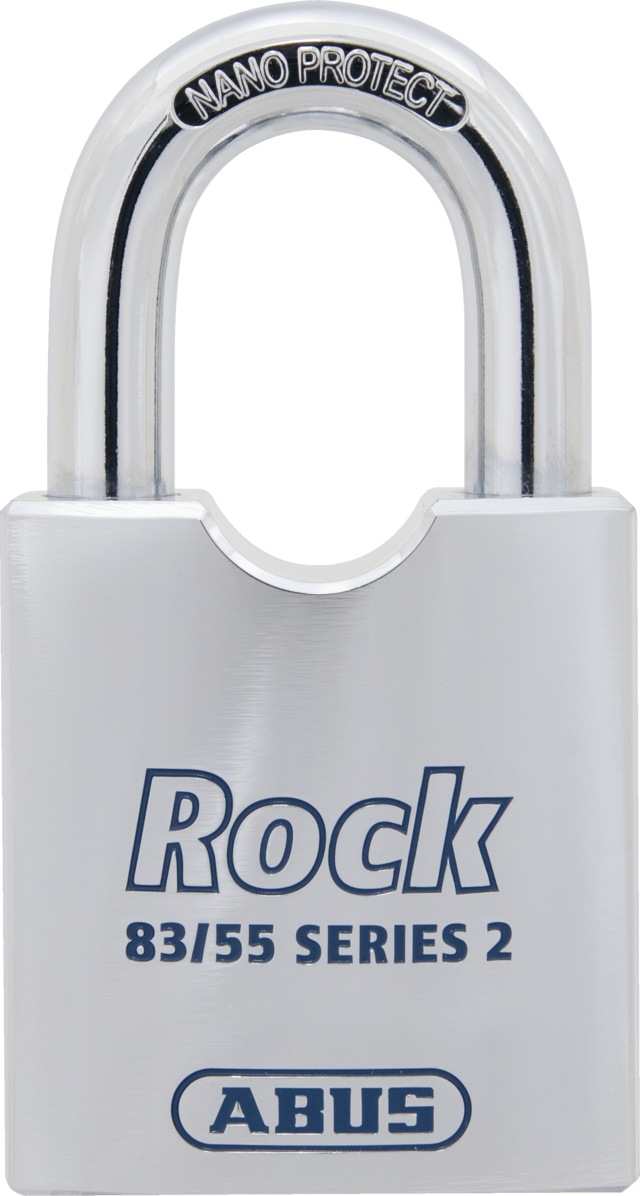

Rock 83/55

Robust and flexible: The Rock 83/55 padlock made of hardened steel and with interchangeable cylinder secures factory gates, warehouses and trucks. It can also be adapted to already existing bittings.

  • Security Level 9/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
All variants for Rock 83/55
Description
Both the lock body and the shackle of the Rock 83/55 resist attempts to break the padlock open with specially hardened steel. The possibility of a keyed-alike solution optimises key management.
As the cylinder can be exchanged, the padlock can be integrated into a keyed-alike bitting system. In other words, you only need one key to unlock several locks. One key can therefore be used to open the warehouse doors and unlock the tool cabinet if desired.
Thanks to its precision pin cylinder, locking and unlocking of the Rock 83/55 is particularly smooth. The double bolted locking mechanism inside increases security against manipulation attempts.
Depending on the place of use, it makes sense that the lock can only be locked with the key (key retaining). It's your choice: the Rock 83/55 is available in a variant with key retaining and in an automatic version, where pressing down the shackle is sufficient.

Technologies

  • Lock body and shackle made of hardened special steel
  • Hardened special steel shackle with NANO PROTECT™ coating for very high corrosion protection
  • Double bolted locking mechanism increases the security of the lock
  • 2 variants: with automatic locking by simply pressing down the shackle or with key retaining, i.e. locking only with a key (key retaining is set up by inserting the Z-bar)
  • Rekeyable: the cylinder can be exchanged and thus also adapted to existing bittings
  • Cylinder protection cap against moisture and dust optionally available
  • Double bolted locking mechanism
  • Precision pin cylinder

Operation and use

  • Protection of items of high value and with a very high risk of theft
  • Suitable, among other things, for securing industrial or company gates, warehouses, trailers, containers and garages
  • Flexible: can be adapted to different requirements in a short time thanks to its interchangeable cylinder
  • Can be combined keyed alike with various ABUS door cylinders

Downloads

General downloads:

Specifications
Locking type: key
Security card: No
Width a: 55 mm
Vertical clearance c: 37 mm
Depth e: 25 mm
Weight [g]: 513 g
Security Level Home Security: 9
Design: Technical drawing
Technical drawing
type of cylinder: without cylinder
colour: silver
Horizontal clearance b: 25 mm
Shackle diameter d: 11 mm
Height f: 102 mm
Keyed alike: Yes
