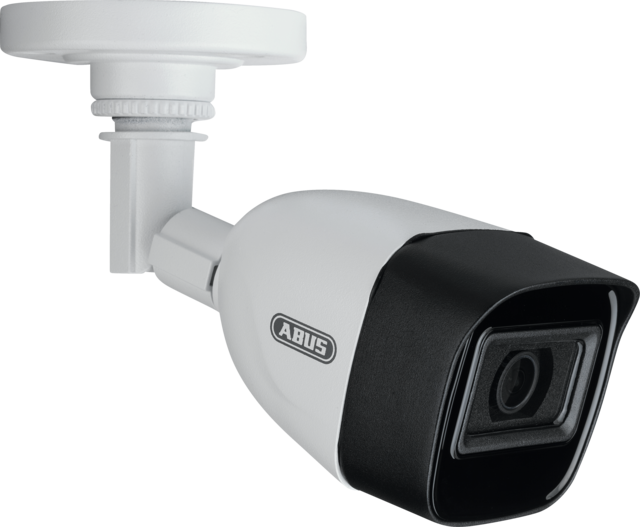

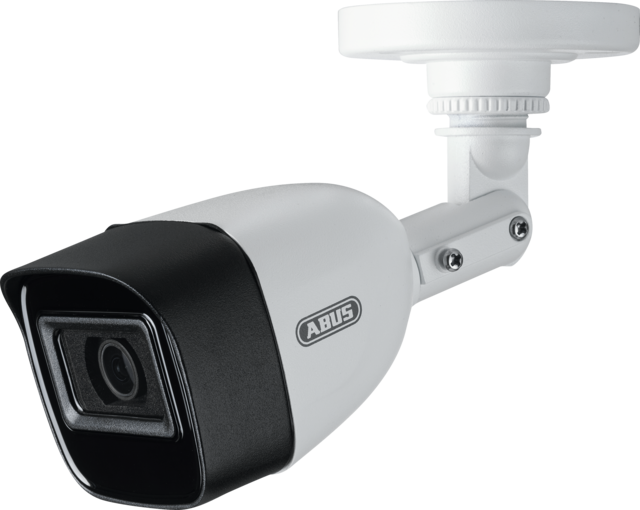

ABUS Analogue HD Video Surveillance 2MPx mini tube camera ABUS Analogue HD Video Surveillance 2MPx mini tube camera ABUS Analogue HD Video Surveillance 2MPx mini tube camera

ABUS Analogue HD Video Surveillance 2MPx mini tube camera

Description


even in very low light and at night, indoors and outdoors, with a 106° viewing angle. It supports multiple video formats and is easily connected to a recorder via a standard analog video combo cable (picture and power).

Reliable Data transfer at high resolution
The Analog HD camera offers the best of both worlds: It transmits data securely and without interference via an analogue video combi-cable. It delivers detailed images in full HD resolution with 1920 x 1080 pixels at 25 frames per second, just the same as IP technology. And this at a very attractive price-performance ratio.

Commercial Weatherproof Monitoring Around the Clock
Due to its robust housing with protection class IP67, the camera is ideally suited for outdoor use under weather conditions. The integrated IR LEDs, with a range of up to 30 meters (depending on the exact location), and the automatic day/night switchover, ensure reliable monitoring day and night. Thanks to Ultra Low-Light and Noise Reduction (DNR), the camera delivers sharp images even in very low light conditions. WDR (120 dB) allows image details to be seen even in backlighting and strong contrasts.

Uncomplicated commissioning
Thanks to the included combination cable and plug-and-play installation, the camera is quickly mounted on the ceiling or wall and put into operation. Of course, existing BNC cabling can also be used.

Product advantages

  • 2MPx camera for indoors and outdoors
  • Detailed Full HD (2MPx) resolution with 1920 x 1080 pixels at 25 fps
  • Ultra Low-Light function and noise reduction (DNR) for more detail even in very low light conditions
  • Supports TVI, AHD, CVI and CVBS analog formats
  • Integrated IR LEDs for best visibility at night/darkness, up to 30 meters
  • WDR (120 dB) for more detail even in backlighting and strong contrasts
  • Automatic day/night switching
  • Can be mounted on ceilings and walls
  • Including 1 x 30 m combined video cable (video signal + power supply)
  • Plug&Play installation and connection using a BNC connector, including for existing analogue cables

Downloads

General downloads:

Declarations of conformity:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Aperture: F1.2
Automatic aperture control: No
Colour: White
Compatible with: TVVR33xxxxx / HDCC9xxxx
Compatible with Secvest: No
Compatible with Smartvest: No
Compatible with wAppLoxx: No
DC voltage supply: 12 V
Day/night switching: Auto / Manual
Dimensions: (Ø x L) 70 x 158,6 mm
Dynamic range (WDR): 120 dB
Focal length: 2,8 mm
Gross weight: 1,29 kg
Horizontal viewing angle: 106 °
Housing material: Metal
IP protection class: 67
IR LEDs: Yes
IR range (up to): 30 m
IR swivel filter: Yes
Image enhancement: BLC / HLC / WDR
Image sensor: CMOS
Image settings: Brightness / Sharpness / Mirroring / Smart IR
Lens mount: M12
Max. humidity: 90 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: TVI / AHD / CVI: 1920 x 1080 @ 25/30 fps CVBS: PAL / NTSC
Min. humidity: 10
Min. operating temperature: -40 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,005 lx
Net weight: 0,893 kg
Noise reduction: 3D DNR
OSD language: EN
Optical Wave Length: 850 nm
PSTI conformity required: No
Power consumption: 4,6 W
Private zones: 4
Shutter speed: 1/25s - 1/50,000s
Technology: TVI / AHD / CVI / CVBS
Video output: 1x BNC
White balance: ATW / Manual
