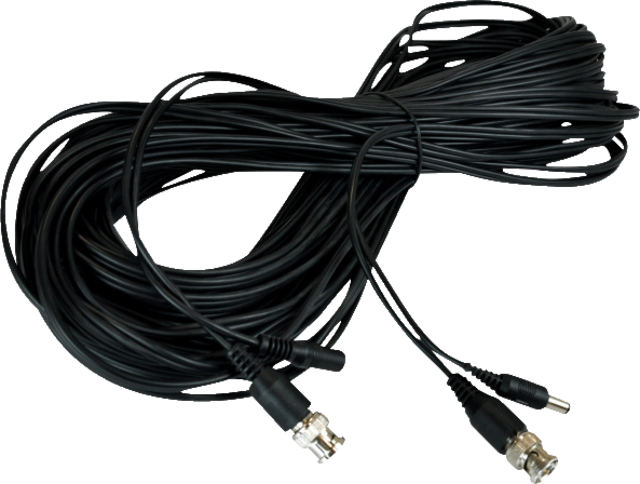

10 m Preassembled Video Combination Cable

10 m Preassembled Video Combination Cable

Description


This pre-assembled combined video cable is an extremely practical accessory for analogue video surveillance cameras. It can be used both for video signal transmission and power supply. Not only are video signal and power supply combined in one cable, the cable is already pre-assembled and ready to connect, saving you the time-consuming tasks of stripping wires, clamping and crimping. The pre-assembled combined video cable is available in lengths of 10m (TVAC40110), 20m (TVAC40120) and 30m (TVAC40130).
Note: Pre-assembled video cables TVAC40110, TVAC40120 and TVAC40130 are only compatible with the analogue HD cameras HDCC31500 and HDCC41500.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Video signal and power supply in combined in one cable
  • Pre-assembled BNC and DC connections
  • Suitable for all cameras with BNC socket (female) and power supply connection (male)
  • 10 m cable length

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Cable length: 10 m
Cable type: Combined video cable
Connection type: BNC (male) - BNC (female)
DC voltage supply: 12 V
Damping: 0.53 dB
Diameter: 6 mm
Housing material: PVC
Insulation: PE
Intended use: indoors
Max. operating temperature: 60 °C
Min. operating temperature: -10 °C
Outer diameter: 6 mm
PSTI conformity required: No
