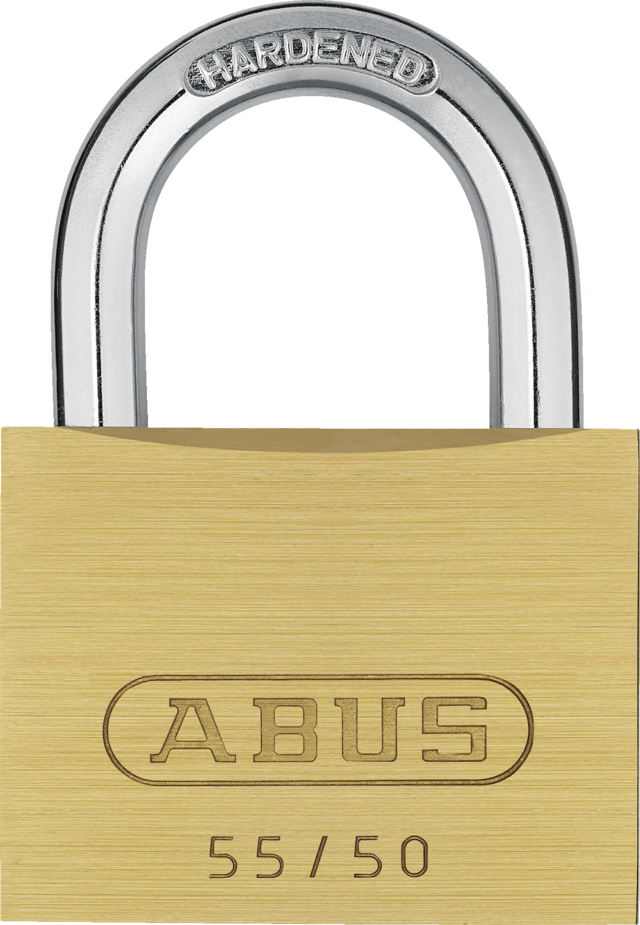

Padlock brass 55/50 ka.-5501

55

Our 55 padlock made from brass is one of our classic locks for a number of use cases.

All variants for 55
Description
Our 55 padlock made from brass is one of our classic locks for a number of use cases.

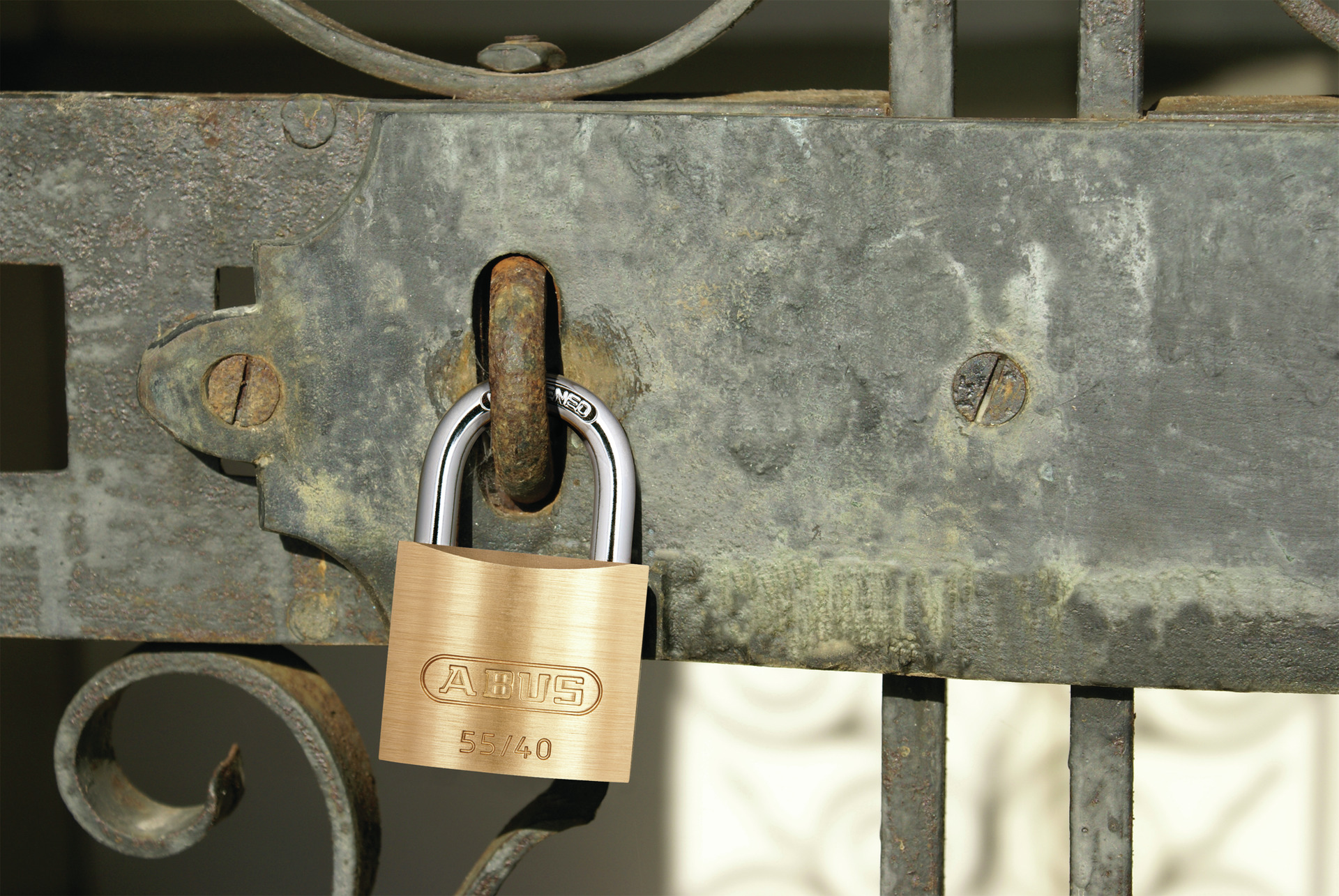

The lock body on the 55 brass lock is made of solid brass. The hardened steel shackle and internal parts made of non-corrosive materials ensure the lock’s durability. Inside is a precision pin cylinder with mushroom counter pins. The exterior is protected from wind and weather. It locks without a key by pressing down the shackle. The application possibilities are wide-ranging: For example, you can use it to secure loop cables or to secure doors, gates, cabinets, lockers, tool boxes, basement windows, sheds, switchgear, or barriers.

Technologies

  • Body made of solid brass
  • Inner components made of non-corrosive materials
  • Shackle made from hardened steel
  • Precision pin tumbler cylinder
  • Self-locking: locking without key by pushing down the shackle

Operation and use

  • Basic protection
  • Cobra loop cables, doors, gates, cabinets, lockers, toolboxes, cellar windows, sheds, switchgears, barriers

Tips

  • This classic lock is available in different sizes

Variants

  • Sizes: 25 mm, 30 mm, 40 mm, 45 mm, 50 mm, 60 mm
  • Additional Shackle Lengths: 63 mm

Downloads

General downloads:

Specifications
Locking type: key
colour: brass
Horizontal clearance b: 25 mm
Shackle diameter d: 7 mm
Height f: 68 mm
Keyed alike: No
Design: Technical drawing
Technical drawing
Security card: No
Width a: 48 mm
Vertical clearance c: 24 mm
Depth e: 14 mm
Weight [g]: 194 g
Security Level Home Security: 5
