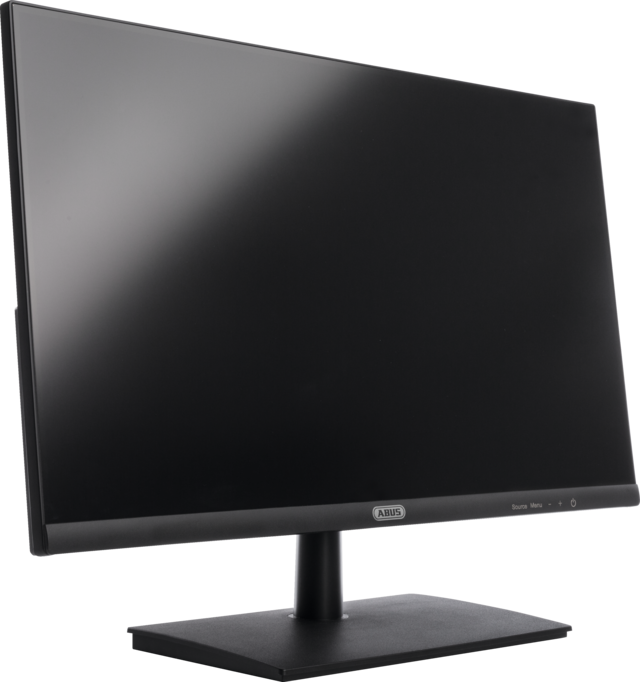

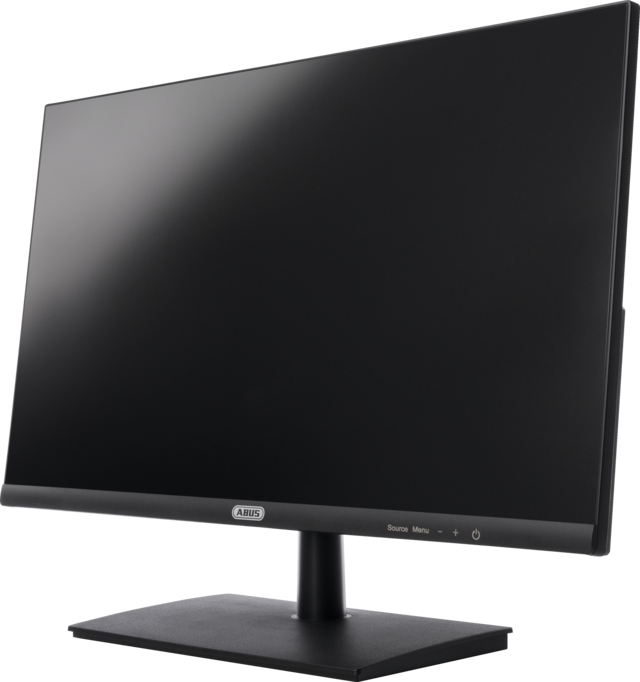

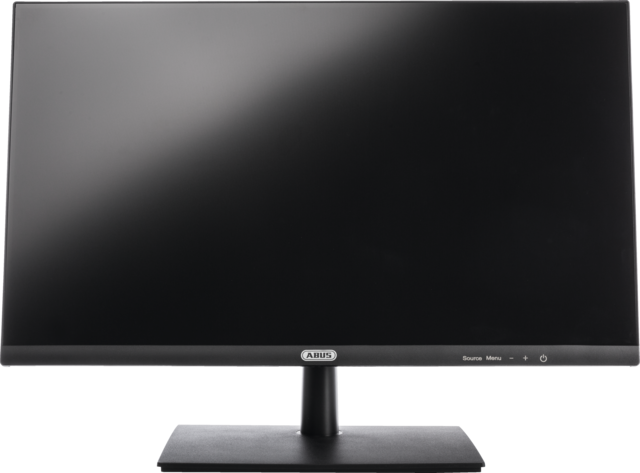

23.8 Full HD LED Monitor" 23.8 Full HD LED Monitor" 23.8" Full HD LED Monitor

23.8" Full HD LED Monitor

Description

Detailed surveillance images in full HD
The convenient LED monitor with a 24” (inch) display size shows you detailed surveillance images in 16:9 format and in full HD 1080p resolution.

Full HD monitor for easy identification
Thanks to a rapid reaction time (of just 5ms), the LED monitor displays you surveillance pictures almost in real time. It shows quick movements on the screen clearly and continuously, without any distortions, flickering or ghost images. You’ll see accurately detailed images in full HD quality so you can monitor, easily identify individuals and quickly resolve situations.

Connections for a wide range of applications
Connect the monitor to a recorder or PC with flexible options. Thanks to the HDMI input, the monitor is optimally suited to displaying images in full HD. An additional VGA input secures the connection to a variety of surveillance systems, a computer and other components.

Energy efficiency for long-term monitoring
The efficient LED display ensures very low power consumption – ideal for long-term use.

Simple installation with VESA brackets
The monitor is compatible with standard VESA brackets for quick installation on the wall or ceiling.

Tip: The monitor is also available in 21.5" with full HD resolution (TVAC10033) and in 27" with 4K resolution (TVAC10071).

Product advantages

  • 24" LED monitor with full HD resolution: 1920 x 1080 pixels
  • Fast reaction time (5 ms) for flowing images
  • Brilliant colour display and high contrast in 16:9 format
  • Ideal for high-resolution full HD recording systems
  • Graphical on-screen display (OSD)
  • Connections: HDMI, VGA
  • Low power consumption for long-term monitoring (LED technology)
  • Compatible with VESA brackets for wall and ceiling installation

Downloads

General downloads:

Specifications
AC voltage supply: 100~240 V
Brightness: 250 cd/m²
Colour levels: 16,7
Comb filter: 3D
Connections: 1 x HDMI, 1 x VGA
Contrast ratio: 1000:1
Dimensions: 540 x 418 x 227 mm
Display surface: matte
Gross weight: 4,44 kg
Height: 418 mm
Housing material: Plastic
Image format: 16:9
Input: 1 x HDMI, 1 x VGA
Length: 227 mm
Max. humidity: 90 %
Max. operating temperature: 60 °C
Min. operating temperature: -20 °C
Monitor type: LED
Net weight: 3,43 kg
PSTI conformity required: No
Power consumption: 30 W
Reaction time: 14 ms
Screen diagonal: 23,8 in
Signal detection: Automatic
Viewing angle horizontal/vertical: 178° x 178°
Width: 540 mm
