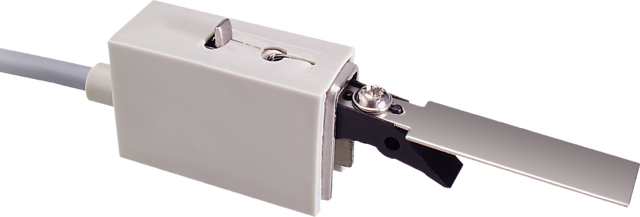

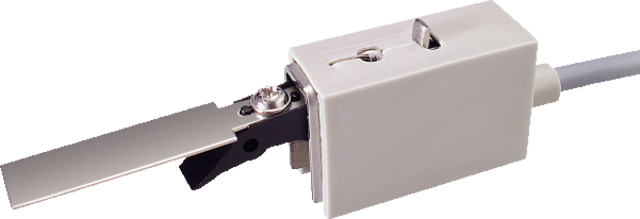

Bar Switching Contact Bar switching contact left view

Bar Switching Contact

Description

The VdS-certified bar switching contact monitors the latches of doors, gates, safes, etc. The electromechanical contact with a watertight micro-switch is inserted into the door frame and activates the locking bar when the door is latched. The actuating lever can be individually shaped in such a way that contact is made with a wide variety of bars. Inserting the cylinder pin into the switching lever makes it possible to install the bar switching contact to the side of the lock-bar section.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Awards & Partners
VdS certificate
As a company in the German Insurance Association (GDV), the VdS damage prevention center is the independent certification center for security technology. With its strict certification guidelines, the VdS ensures products, which guarantee security.
Awards & Partners

Product advantages

  • For monitoring the locked status of doors
  • Housing, spring and lever arm made of stainless steel (Nirosta)
  • Microswitch (changer) with gold contact

Downloads

General downloads:

Certificates:

Additional information:

Bar Switching Contact
Bar Switching Contact
Specifications
Cable length: 2 m
Cable type: LIYY
Certifications: VdS C
Compatible with: Secoris, Secvest, Terxon
Connections: NC, switch capacity 1 mA to 2 A / 30 V
Environmental class: III
Height: 18 mm
Housing material: Stainless steel
IP protection class: 50
Length: 63 mm
Max. humidity: 95 %
Max. operating temperature: 65 °C
Min. operating temperature: -40 °C
PSTI conformity required: No
Sensor type: Micro-switch
Switching power: 60 W
Type of detection: Locking monitoring
VdS approval no.: G 186105
VdS class: C
Width: 11,5 mm
