Secvest Wireless Magnetic Contact CC (white) Secvest Wireless Magnetic Contact CC (white) Secvest Wireless Magnetic Contact Detector (CC) white (FUMK50000W)

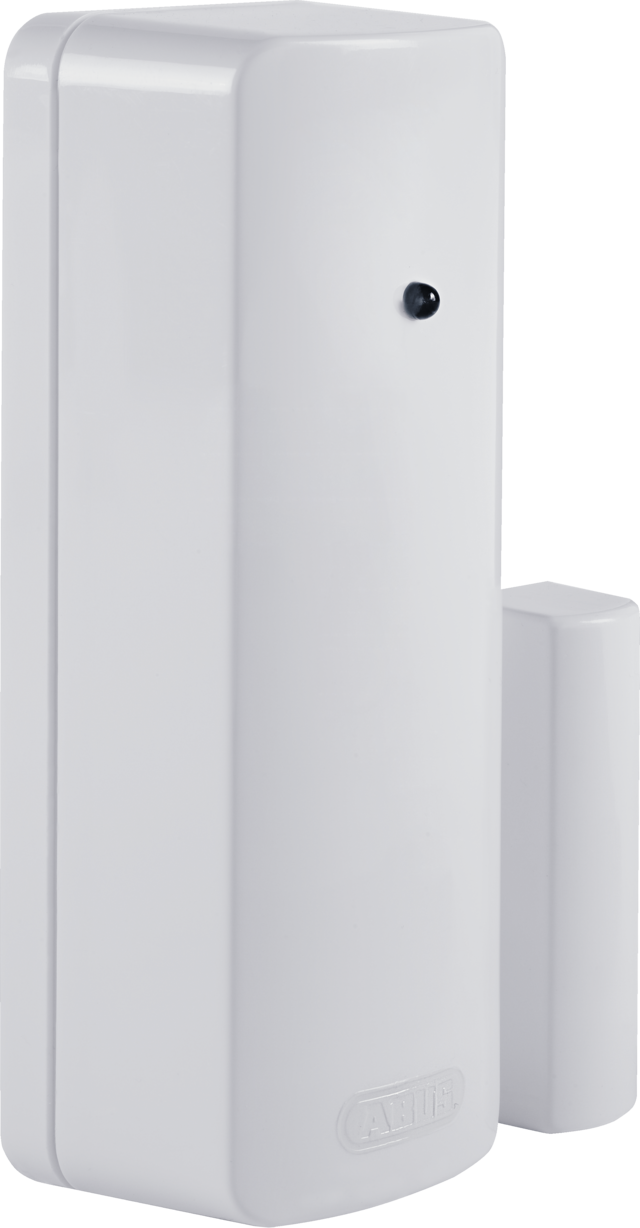

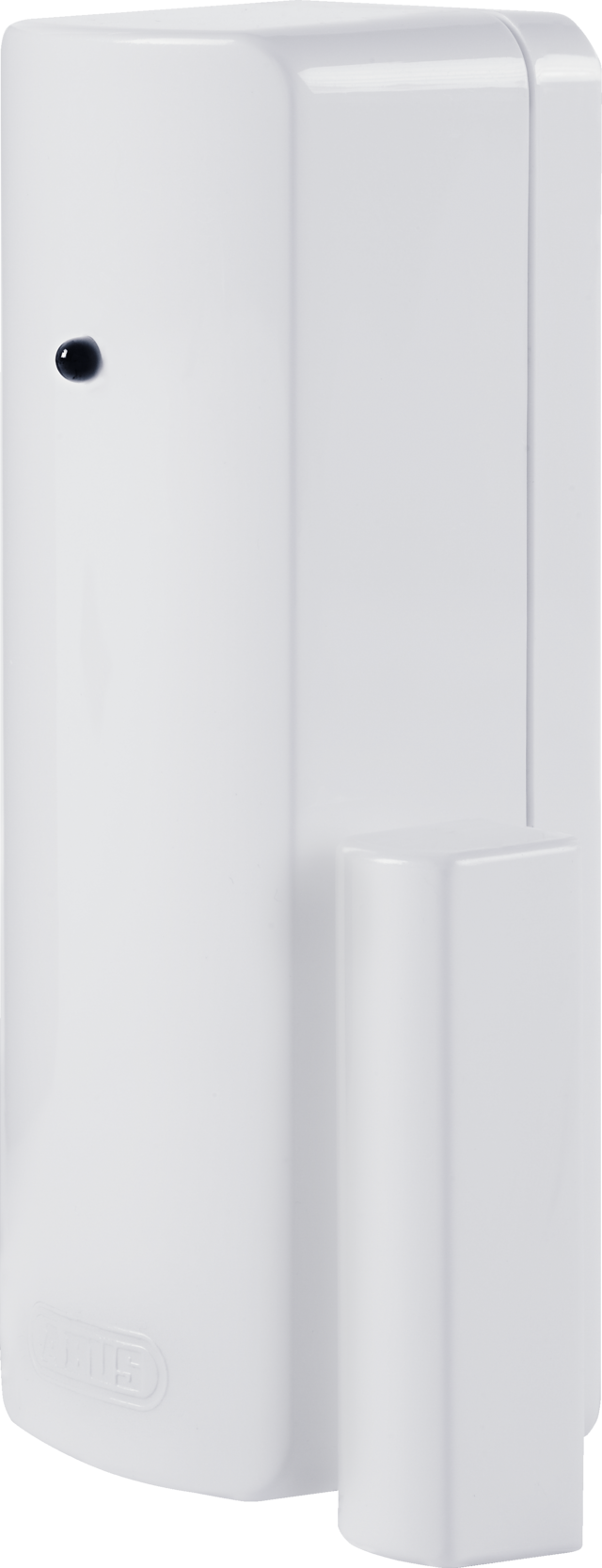

Secvest Wireless Magnetic Contact CC (white)

Description


The wireless opening detector detects and reports the unauthorised opening of doors and windows using a magnetic contact. In such cases, it informs the wireless alarm panel, which then triggers a corresponding alarm.

Detection and reporting

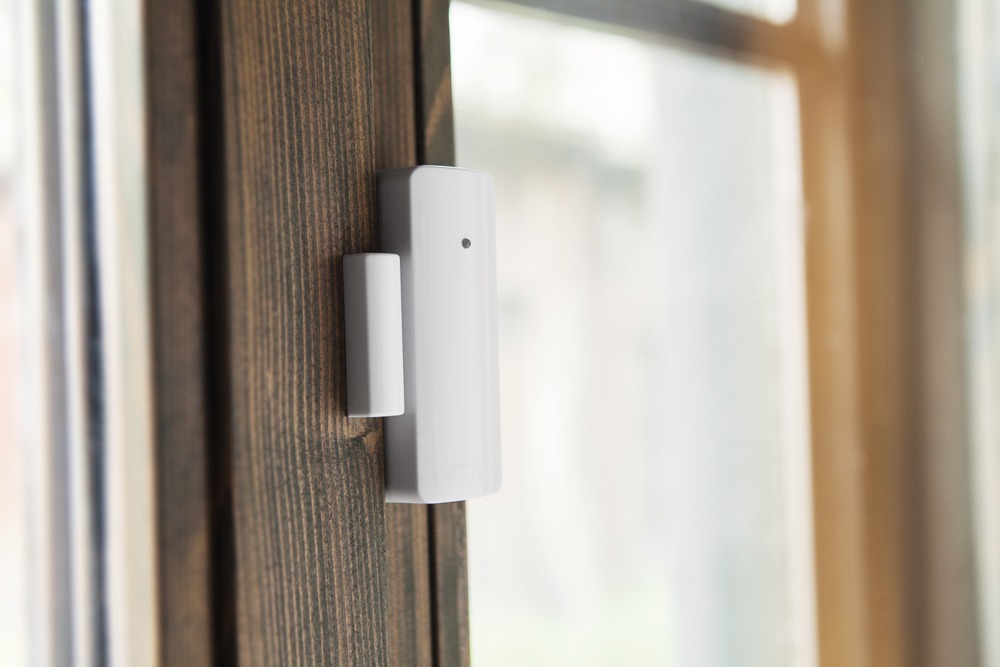

This product consists of a detector and a magnet. These components are mounted parallel to each other on the moving part of the window or door and on the window or door frame. The detector triggers as soon as the distance between the two contact points is increased when the window or door is opened. The components can be mounted on the bottom window frame in order to allow a window to be tilted open without disrupting the magnetic contact.

Even greater protection with additional wired alarm zones
The wireless opening detector also allows the wiring of additional detectors in order to effectively enhance intrusion protection. The detector can be connected to a passive glass breakage detector, for example, which can be mounted to the window pane and detects window breakages. The wireless opening detector for the Secvest wireless alarm system is available in white and brown.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Awards & Partners
EN50131 Grade 2 Logo
EN50131 Grade 2 Logo
Awards & Partners

Product advantages

  • Reliably detects opening of windows and doors
  • Connection option for additional wired detectors
  • Can be used as a wireless module
  • Tamper monitoring
Specifications
Battery - max. battery life: 2 y
Battery - type: 3 V CR2 Li/MnO2
Certifications: VdS home,EN 50131 Grade 2
Colour: white
Compatible with: Secvest, Terxon, BUMO60040
Connections: Screw terminal (CC)
DC voltage supply: 3 V
Dimensions: (WxHxD) 33x89x29 mm
Environmental class: I
Height: 89 mm
Housing material: ABS
Installation location: Windows, doors
Length: 29 mm
Max. operating temperature: 55 °C
Max. transmission range (building): 30 m
Max. transmission range (free field): 100 m
Min. operating temperature: -10 °C
Modulation: FM
Net weight: 0,076 kg
PSTI conformity required: No
Power consumption: 30 mA
Radio frequency: 868,6625 MHz
Radio power: 10 mW
Sabotage monitoring: Yes
Security level: 2
Sensor type: Reed contact
Status display: Yes
Type of detection: Magnetic field measurement
VdS approval no.: H 110004
VdS class: without
Voltage monitoring: Yes
Width: 33 mm
