Motion detector PIR (PET) Xtra-Flex EN3 Motion detector PIR (PET) Xtra-Flex EN3 Motion detector PIR (PET) Xtra-Flex EN3

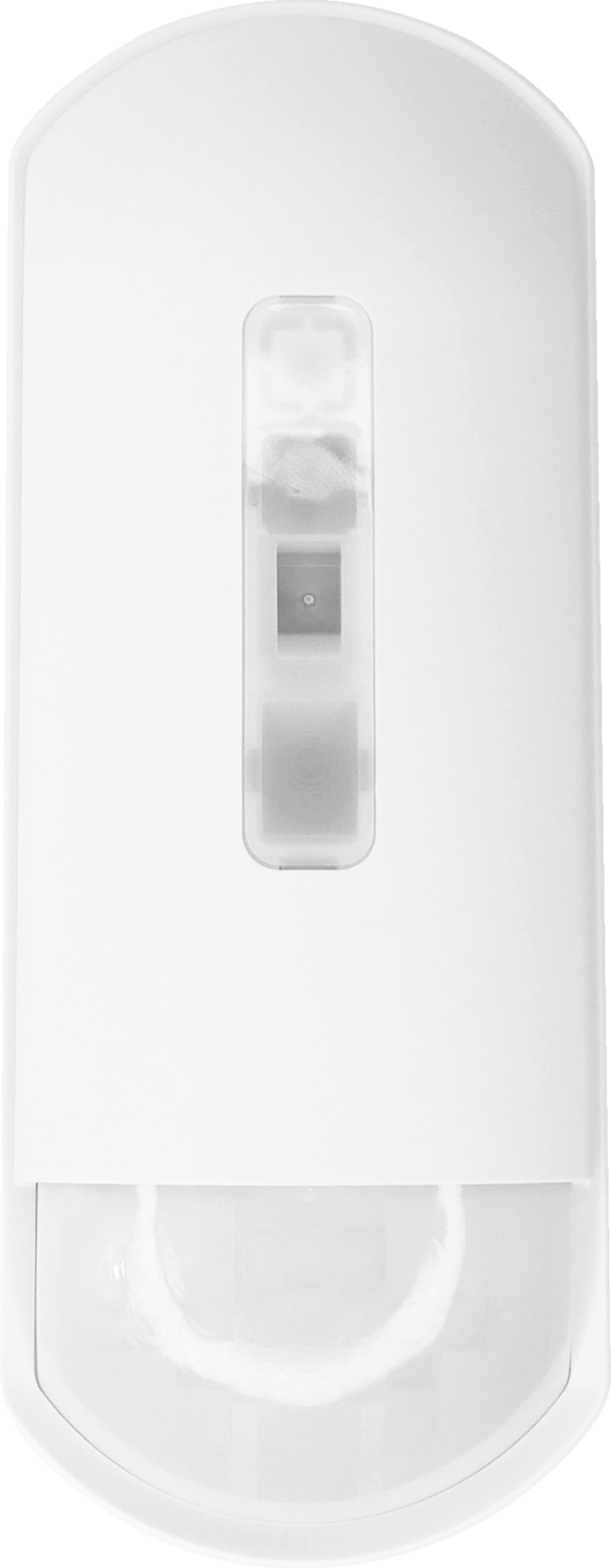

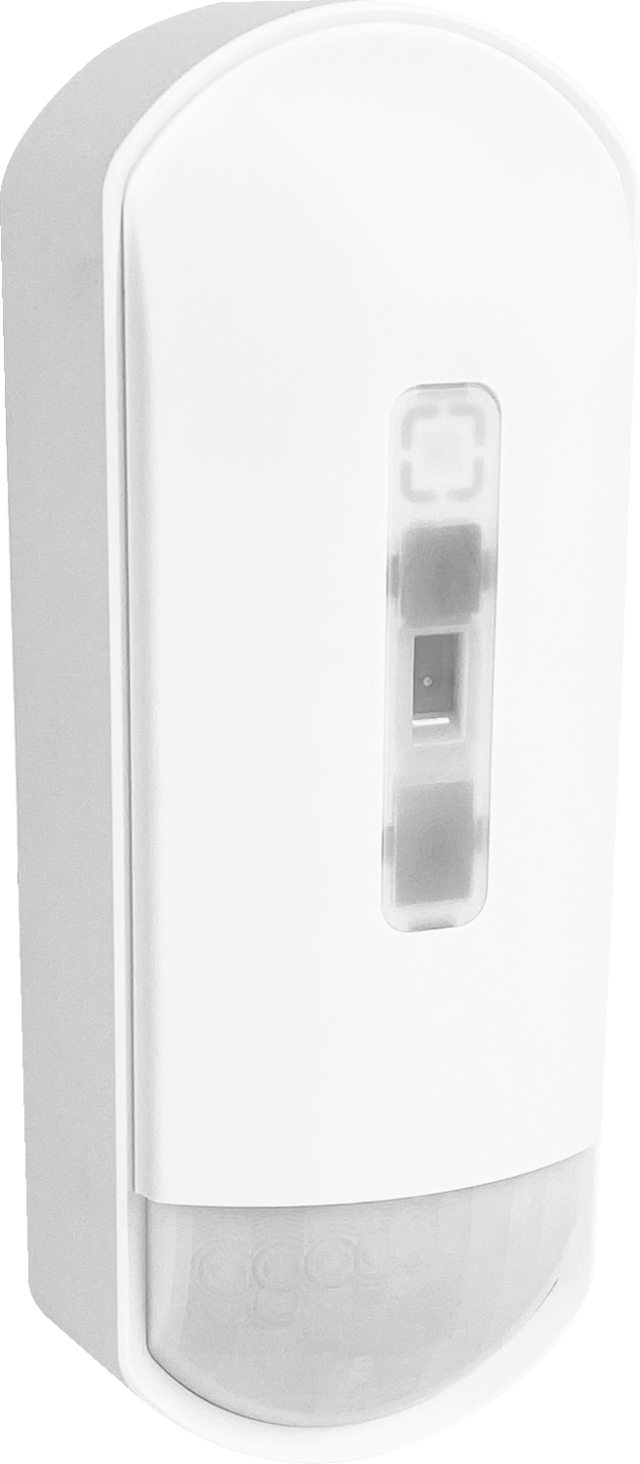

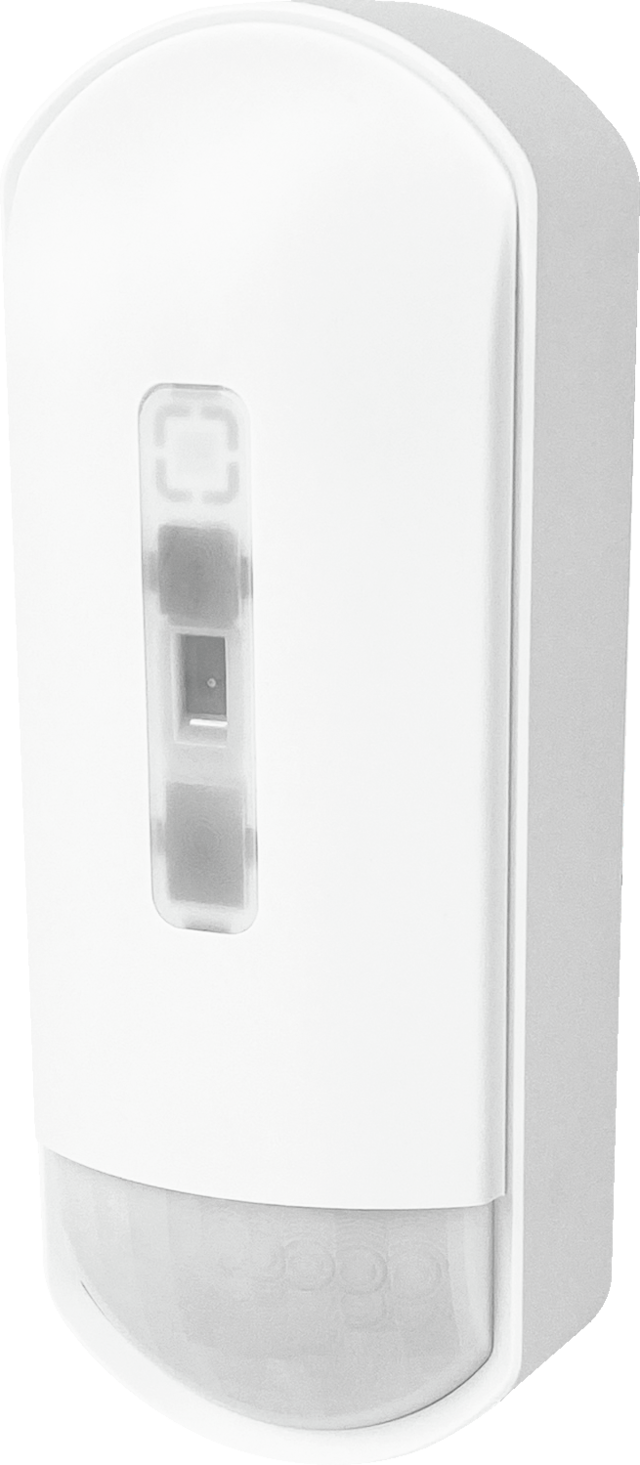

Motion detector PIR Xtra-Flex EN3

This detector onitors rooms using a passive infrared (PIR) sensor. Detects people very precisely in its flexibly adjustable field of view. Can’t be tricked, thanks to cover and creep-zone protection.

Description


Precise detection, top PIR range and false alarm protection
The EN Grade 3 certified wired motion detector has a passive infrared sensor (PIR) and sensitive pro Fresnel lens that captures a detailed thermal image with uniform coverage of the detection field. Humans are detected by body heat (heat movement) with high accuracy and distinguished from pets; any incident is reported to the IAS/control panel. Max. false alarm protection and pet-immune. Innovative pro lens (flexible zone blanking) ensures a stable IR range (15 m/24 m) under all setting variants (vs. mirror detectors).

Volume and line detector
Can be configured as a volume (wide detection: 85° at 15 m) or line detector (narrow detection: 5° at 24 m).

Tampering is futile
Thanks to creep-zone protection, has no blind spots and detects people directly under itself. Integrated cover protection triggers alarm immediately if detector's view (when system is disarmed) is obscured.

Easy fine adjustment
Easily adjust detector sensitivity via handy DIP switches: thermal image zones detected and pulses that must be detected before alarm relay opens. Fast wiring to alarm control panel via common resistors. Coloured status LED signals detector status at a glance.

Flexible installation
Can be mounted on the corner, wall or ceiling - with tamper protection (cover/tear-off contact). Note: the mounting height affects effective IR range.

Awards & Partners
https://c1.abus.com/var/ImagesPIM/d110001/derivates/11/262/230223-EN50131-Grad-3_logos.jpg
https://c1.abus.com/var/ImagesPIM/d110001/derivates/11/262/230223-EN50131-Grad-3_logos.jpg
Awards & Partners

Product advantages

  • Passive infrared motion detector (PIR) for indoor use, with flexible lens (spiral lens) and coloured LED status indicator
  • High-precision detection of humans: integrated professional Fresnel lens captures the thermal image in 80 zones, distinguishes between humans and pets (pet-immune)
  • Optimum detection performance and false alarm security for any room environment, sensitivity individually adjustable during installation
  • Flexible 2-in-1 solution: thanks to spiral lens, can be used as a volume detector and line detector (without accessories, such as long-range lens)
  • Detection range adjustable as required: wide detection (volume detector: 85° viewing angle, 15 m range) for room coverage; narrow detection (line detector: 5°, 24 m) for window front, shelf aisle etc.
  • High, stabilised IR range of thermal image detection for each setting option (compare with mirror detector)
  • Masking protection (anti-masking) to thwart tampering attempts, adjustable sensitivity: if the detector is masked or covered, e.g. when the alarm system is disarmed, a tamper alarm is triggered
  • Creep-zone protection for uninterrupted monitoring even directly under the detector (no blind spots)
  • Adjusting the detector precisely during installation is quick and easy via DIP switch
  • EN 50131 Grade 3 certified

Downloads

General downloads:

Motion detector PIR (PET) Xtra-Flex EN3
Motion detector PIR (PET) Xtra-Flex EN3
Specifications
Adjustable sensitivity: Yes, 4 Levels
Alarm memory: Yes
Anti-creep protection: Yes
Area of application: unheated interior
Certifications: EN 50131 Grade 3
Compatible with: Secoris, Secvest, Terxon
Cover monitoring: Yes
DC voltage supply: 9,5 - 16 V
Depth: 59 mm
Detector coverage area (m): 15 m
Dimensions: 160 x 62 x 59 mm
EN: Level 3
Environmental class: II
Fuse protection type: Intrusion protection
Gross weight: 0,18 kg
Height: 160 mm
Installation location: Wall
Installation type: Surface Mounting
Max. detection range (indoor): 15 m
Max. humidity: 95 %
Max. operating temperature: 50 °C
Min. humidity: 0 %
Min. operating temperature: -20 °C
Net weight: 0,18 kg
PIR viewing angle: 85 °
PSTI conformity required: No
Pet-proof: No
Power consumption: 16 mA
Sabotage monitoring: Yes
Standby power consumption: 12 mA
Type of detection: Heat detection
Width: 62 mm
