Name: ABUS OneLook Outdoor Camera
Brand: ABUS August Bremicker Söhne KG

Description

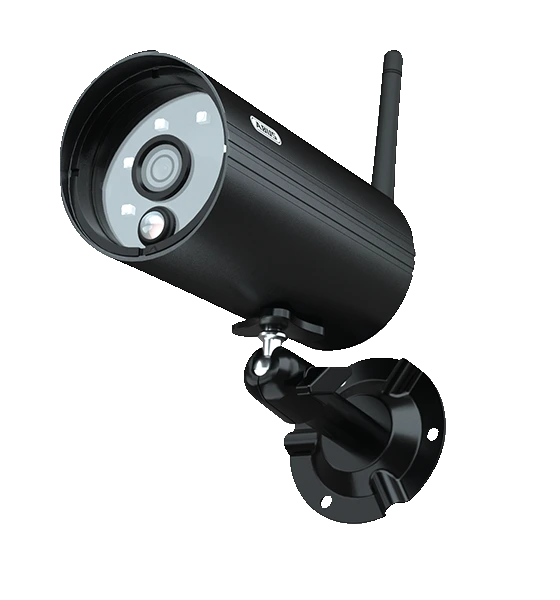

PPDF14520 Full HD wireless outdoor camera for day and night

The ABUS OneLook outdoor camera is a compact full HD wireless outdoor camera with encrypted digital radio and PIR sensor for motion detection; it also has a 1080p resolution for brilliant image quality even in darkness. The camera is fully compatible with the ABUS OneLook video surveillance set with 7” colour monitor and integrated loudspeaker (PPDF16000).

Ready for use 24/7
Suitable for use 24/7, day or night, thanks to integrated IR LEDs. Wireless transmission via encrypted digital radio (audio and video). The signals are optimised for connection to the ABUS OneLook video surveillance set. Wireless signal transmission is an advantage anywhere that cables are impossible or difficult to lay. The conversion into digitally encrypted signals allows malfunctions, interference, and any potential viewing of images by third parties to be reliably prevented.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

Product advantages

Compact full HD 1080p wireless outdoor camera (IP66)
Video and audio transmitted via encrypted digital radio
Includes PIR sensor for reliable motion detection
Full HD 1080p resolution and infrared night vision function for brilliant image quality
Can be used as an extension for the PPDF16000 wireless home video sets (PPDF16000, PPDF18000)
Up to four wireless cameras can be used with each monitor / recorder

Downloads

General downloads:

Declarations of conformity:

CE certificate

Additional information:

Open Source License Information

Software:
Firmware:

ABUS_PPDF14520(W)_Firmware_V1200

Firmware compatible to: PPDF14520, PPDF14520W
History
Version: 1200
Release date: June 2018
File name: r4_rx_rootfs-cpio_master.squashfs.img , t3_uImage_8136 , t5_tx.jffs2.img
Changes
• Improved Performance to the newest firmware of PPDF16000 (FW1245) and PPDF18000 (FW1253)
Firmware-Update:
1. Copy the two files xxx.img and _828x onto an emtpy microSD-card
2. Insert the microSD-card into the monitor
3. Navigate to the Storage settings - systeminformation
4. Click on Upgrade
5. Choose "Upgrade Camera x Firmware" so a checkmark appears besides the line
6. Click on "OK"
You must not disconnect the camera or recorder/monitor from the power supply during the firmware update, as this may result in irreparable damage to the device. The update procedure takes about 3 minutes

Specifications

Base event:	PIR / Software + Motion Mask
Channel width:	3 MHz
Colour:	Black
Compatible with:	PPDF16000 / PPDF18000
Compatible with Secvest:	No
Compatible with Smartvest:	No
Compatible with wAppLoxx:	No
DC voltage supply:	5 V
Day/night switching:	Auto
Dimensions:	(W x L x H) 62 x 155 x 148 mm
Encryption:	FHSS Hardware-Encryption
Focal length:	3,6 mm
Frequency range:	2,403 - 2,478 GHz
Gross weight:	0,802 kg
Horizontal viewing angle:	90 °
Housing material:	Metal
IP protection class:	66
IR LEDs:	Yes
IR range (up to):	8 m
IR swivel filter:	Yes
Image sensor:	1/3" CMOS
Max. operating temperature:	50 °C

Max. resolution @ frame rate:	Full HD (1080p) @ 20 fps
Microphone:	Yes
Min. operating temperature:	-10 °C
Minimum illumination (IR):	0 lx
Minimum illumination (colour):	2 lx
Net weight:	0,62 kg
Optical Wave Length:	850 nm
PIR range:	5 m
PIR viewing angle:	65 °
PSTI conformity given:	No
PSTI conformity required:	Yes
Plug type:	DC-plug: 3,5 x 1,35mm
Power consumption:	1,4 W
Resolution modes:	Full HD (1080p) / HD (720p)
Sensitivity:	-80 dBm
Transmission power:	20 dBm
Vertical viewing angle:	45 °
Video bit rate:	0,032 - 2
Video compression:	H.264
Wireless range:	(Depending on installation) 20 - 50 m
