Name: Secvest Wireless Retrofit Kit for FO 400
Brand: ABUS August Bremicker Söhne KG

Description

FUFT50058 Connecting mechanical security and electronic monitoring

At first glance, it is difficult to tell the difference between the FO 400 N window handle lock, which is purely mechanical, and the FO 400 E wireless window handle lock, which is electronic. You can use the wireless upgrade kit to prepare the FO 400 N mechanical window lock for use with the Secvest wireless alarm system.

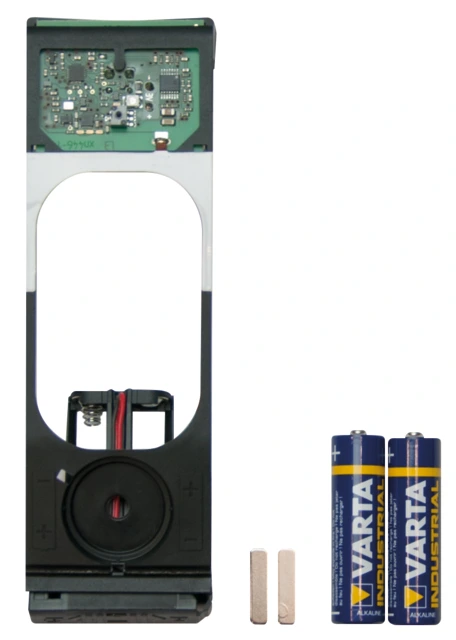

The wireless upgrade kit contains: Electronic unit with circuit board, batteries, leaf spring and magnet. Upgrading FO 400 N window handle locks that have already been installed is simple and uncomplicated and can be done at any time.

Note: We recommend the ABUS wireless test box for optimum detection of the wireless range of the mechatronic products on site.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

Double your protection by combining mechanical security with electronic monitoring
Active intrusion protection, thanks to simple upgrading of the mechanical system with electronics
Even detects intrusion attempts
Connection points for passive glass break detectors
Upgrade for the purely mechanical version manufactured in autumn 2014 or later (FO 400 N)

Downloads

General downloads:

Additional information:

Replacement battery

Specifications

Battery - max. battery life:	2 y
Battery - type:	2 x 1.5 V AA alkaline batteries, Varta Industrial / Industrial Pro, Duracell Industrial, Panasonic Powerline
Certifications:	VdS in combination with mechanic FO400
Compatible with:	Secvest, BUMO60040
Connections:	Clamping terminal
DC voltage supply:	3 V
Dimensions:	(WxHxD) 120x70x215 mm
Environmental class:	II
Gross weight:	0,153 kg
Height:	70 mm
Housing material:	ABS
Installation location:	Windows
Length:	215 mm
Max. humidity:	90 %
Max. operating temperature:	55 °C

Max. transmission range (building):	30 m
Max. transmission range (free field):	100 m
Min. operating temperature:	-10 °C
Modulation:	FM
Net weight:	0,99 kg
PSTI conformity required:	No
Radio frequency:	868.662 MHz
Radio power:	10 mW
Sabotage monitoring:	Yes
Sensor type:	Reed contact, magnetic field sensor system
Type of detection:	Magnetic field measurement
VdS approval no.:	M 100304
Voltage monitoring:	Yes
Width:	120 mm
