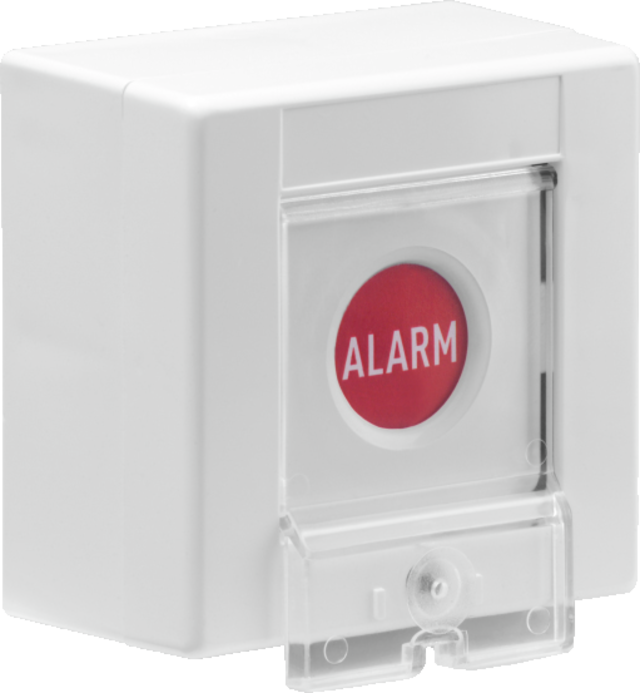

VdS Surface Mount Panic Alarm Button Panic button left view

VdS Surface Mount Panic Alarm Button

Description

If you press the panic button, you trigger a silent alarm to call for help. You can use the panic button as a standalone device or integrate it into the burglar alarm system. The button is tamper-monitored. For panic and tamper alarms, you have an NO or NC contact. The panic button is VSÖ and VdS C certified.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners
VdS certificate
As a company in the German Insurance Association (GDV), the VdS damage prevention center is the independent certification center for security technology. With its strict certification guidelines, the VdS ensures products, which guarantee security.
Awards & Partners

Product advantages

  • Simple surface mounting
  • Inconspicuous, discreet alarm signalling
  • Certified VdS Class C

Downloads

General downloads:

Declarations of conformity:

Certificates:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
VdS Surface Mount Panic Alarm Button
VdS Surface Mount Panic Alarm Button
Specifications
Certifications: VdS-C
Compatible with: Secoris, Secvest, Terxon
Connections: 1 x NO/NC alarm contact; 1x NO/NC tamper contact
Depth: 47 mm
Dimensions: (WxHxD) 85x85x47 mm
Height: 85 mm
Housing material: ABS
IP protection class: 32
Installation location: Surface or flush fitting
Length: 47 mm
Max. operating temperature: 55 °C
Net weight: 0,18 kg
PSTI conformity required: No
Sabotage monitoring: Yes
Switching outputs: Maximum switching power: 3 A/75 V
Switching power: 225 W
VdS approval no.: G 192028
VdS class: C
Width: 85 mm
