IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
New

IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm

The all-in-one alarm camera: with microphone, loudspeaker and flashing light for intercom to address perpetrators and alarm (warning tone, voice, flash). Also features intelligent object recognition.

Description

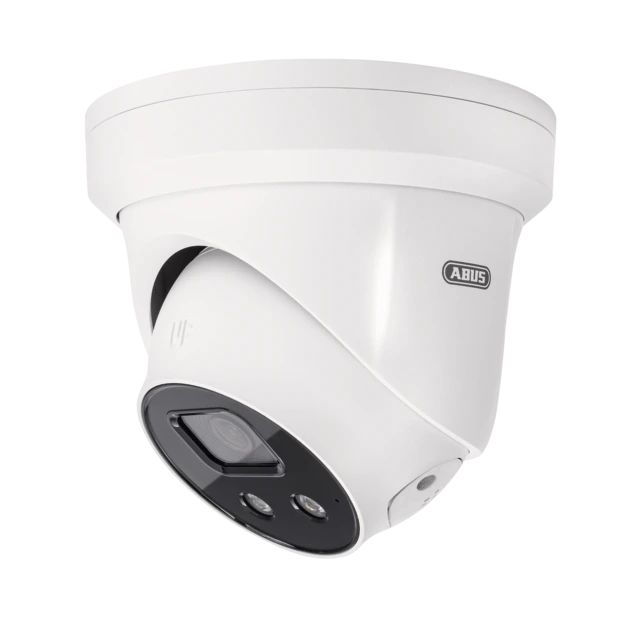

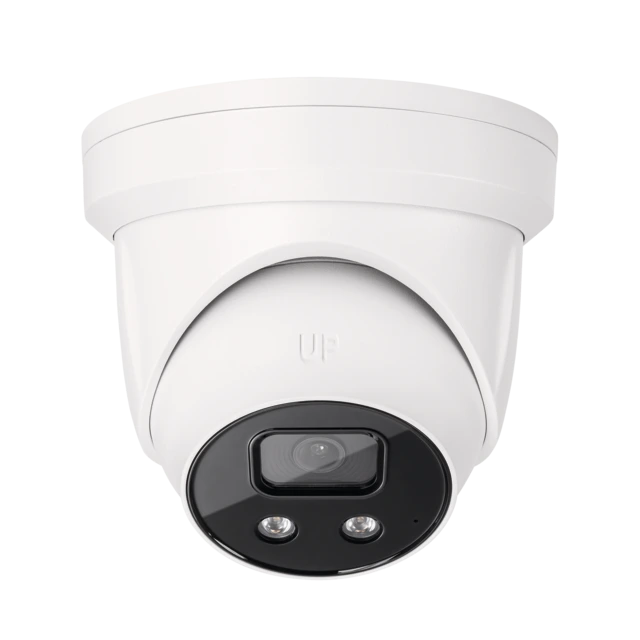

The IP Dome is a discreet surveillance camera with 2WAY audio and alarm function.

8 MPx (4K): detailed 24/7 monitoring
The IP camera delivers ultra-high resolution images in 8 MPx (4K) resolution, IR LEDs ensure good image details during day and night. The IP67 housing is for outdoor use. Mobile app access possible at any time.

Autom. Object recognition
The security camera uses intelligent VCA object detection to distinguish relevant movements (human/vehicle) from disturbing influences (branches, light, etc.) - and minimises unnecessary motion alarms. This defines incidents (VCA events, e.g. line crossed) that trigger alarms.

2WAY audio & alarm (siren, LED flash)
For intercom, addressing offenders or acoustic alarm output (voice message, siren). The integrated flashing light turns the alarm camera into a signaller.

Recording and compatibility
Recordings are saved on microSD card, ABUS recorder or via VMS software. The dome is compatible with ABUS Secvest, Secoris, WLX Pro.

Convenient start-up
The IP dome is mounted on the ceiling or on the wall using a bracket (TVAC32520). Recommended: the installation box (TVAC32500). The free ABUS IP Installer software makes setup in the network faster.

Notes: power supply unit not included, as power is supplied via PoE.
The effective IR range will vary depending on the installation location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 2-way audio security camera with integrated microphone, loudspeaker and flashing light for intercom to address people and perpetrators, as well as acoustic and visual alarms
  • Integrated alarm input/output (I/O) for switching scenarios for effective alarm utilisation or optimisation of operating procedures (e.g. sales room)
  • Intelligent object detection and precise motion detection with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
  • 8 MPx (4K) resolution: 3,840 x 2,160 @ 25 fps for crisp, ultra-high resolution surveillance images and coverage of a large surveillance area
  • 2.8 mm fixed lens for a good overview (111° viewing angle) in a robust, weatherproof housing (IP67)
  • 120 dB WDR function to compensate for image contrasts, strong backlighting etc. for highly usable image results in all lighting situations
  • Ultra low-light performance for excellent image results in poorly lit environments
  • IR LEDs for clear images in the dark (up to 30 m range)
  • Strong image compression (Dyn. GOP, H.265, H.264, MJPEG) for low storage space requirements
  • microSD card slot for internal data storage; 12 V DC & PoE (802.3af)

Downloads

General downloads:

Additional information:

Software:
Installation software:

Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
Specifications
Alarm input (NO/NC): 1
Alarm output: 1
Alarming: Flash, Loudspeaker, Email, App Push, FTP, CMS
Aperture at minimum illumination (colour): F1.6
Audio: Integrated: Microphone, Loudspeaker; Connectable: Microphone, Loudspeaker
Backlight compensation: WDR, BLC, HLC
Camera type: Dome
Compatible with ABUS Link Station: Yes
Compatible with Comfion: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC, 1 x alarm input, 1 x alarm output, 1 x audio input, 1 x audio output (cable length 250 mm)
DC voltage supply: 12 (+/-25 %) V
Day/night switching: ICR/Color/B/W
Design: Dome
Digital zoom: Yes
Dimensions: (LxBxH) 139x139x128 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS, TLS 1.1/1.2
Focal length: 2,8 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection, Region of Interest
Gross weight: 1,1 kg
Height: 128 mm
Horizontal viewing angle: 110 °
Housing material: Metal
ICR day/night function: Yes
IP protection class: 67
IR LEDs: Yes
IR range (up to): 30 m
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
Image sensor: 1/1,8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK, IT
Length: 139 mm
Lens: Fix
Loudspeaker: Yes
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 3840 x 2160 @ 30 fps
Microphone: Yes
Min. operating temperature: -25 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,003 lx
Motion detection: Yes
Net weight: 0,85 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction: 3D DNR
Number of IR LEDs: 1
Number of streams: 3
Number of users: 32
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
PSTI conformity given: Yes
PSTI conformity required: Yes
Pixels (effective): 3840(H) x 2160(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 800 mA
Private zones: 4
Relay output: 1
Resolution: 8 MP
Resolution modes: Stream 1: 3840 x 2160 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps (only in surveillance mode)
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: MS Edge, IE11, Mozilla Firefox, Google Chrome
Technology: IP
Vertical viewing angle: 59 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265 (only in surveillance mode)
Video network bandwidth: 32 kBit/s - 16 MBit/s
White balance: AWB, Manual
White-light LEDs: 1
Width: 139 mm
