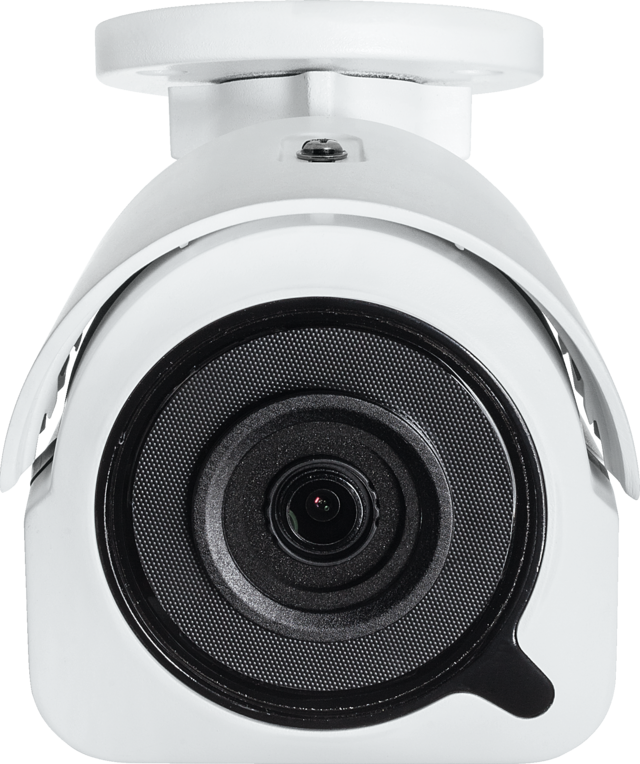

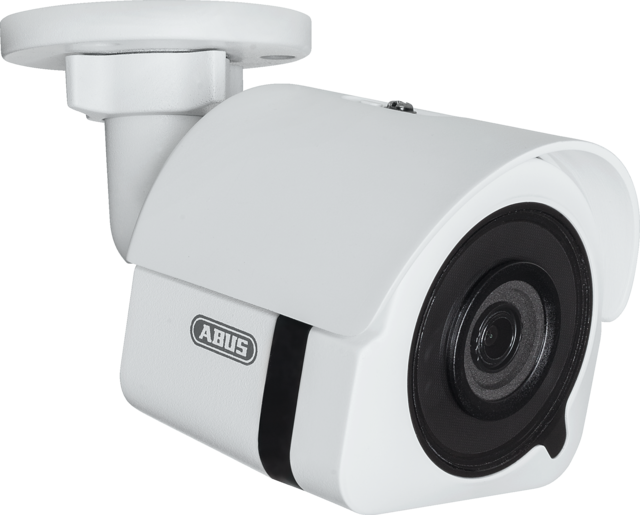

IP Mini Tube 4 MPx (6 mm) IP Mini Tube 4 MPx (6 mm)

IP Mini Tube 4 MPx (6 mm)

Description

Discreet 4 MPx 24/7 outdoor surveillance

Due to its compact dimensions, the IP Mini Tube is a discreet surveillance camera for outdoor and indoor use. The tube is available in several versions with different fixed lenses from 2.8 mm (IPCB64510A) to 4 mm (IPCB64510B) and even 6 mm (IPCB64510C).

The IP Mini Tube provides video streams in 4 MPx resolution with up to 30 fps. The weatherproof IP67 housing allows outdoor use. Due to integrated IR LEDs, the camera can be also used day and night. Access to the camera is possible at any time via app.

3 lens variants for maximum flexibility

The IP Mini Tube is available in 3 versions with different fix lenses. Therefore, the camera offers maximum flexibility in the planning and installation of video surveillance projects. The IP Mini Tube IPCB64510A with a 2.8 mm fixed lens and a horizontal viewing angle of 109 ° is ideal for wide-angle surveillance scenes. The IP Mini Tube IPCB64510C with a 6 mm fixed lens and a horizontal viewing angle of 53 ° is a popular variant for installation in corridors.

Recording and compatibility

The recording can be done either on an ABUS recorder, 3rd party video management software or locally on a microSD card. Furthermore, the camera is compatible with the ABUS Secvest alarm center and the ABUS access control system wAppLoxx.

Comfortable installation

The IP Mini Tube is mounted on the ceiling or optionally on the wall. We recommend the ABUS installation box (TVAC31480), which allows a protected cabling to wall or ceilings. The free “ABUS IP Installer” software is available for simple setup in the network. The software finds the camera quickly and easily within the network and supports during the installation process.

Note: The camera does not come with a power supply, as it can be powered via PoE.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
Awards & Partners

Product advantages

  • 4 MPx Resolution: 2.688 x 1.520 @ 30 fps
  • 6 mm fixed lens
  • Ultra low-light performance for excellent results in low-light environments
  • 120 dB WDR function to compensate for image contrasts
  • Weather protected housing (IP67)
  • IR LEDs (range up to 10m)
  • Supports H.264, H.265, MJPEG (incl. dynamic GOP)
  • microSD card slot for internal data storage
  • 12 V DC & PoE (802.3af)

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Alarming: E-Mail, NAS, FTP
Aperture at minimum illumination (colour): F1.6
Backlight compensation: WDR, BLC, HLC
Camera type: Mini-Tube
Colour: RAL9003
Compatible with: NVR, Hybrid DVR, IPCam Plus
Compatible with ABUS Link Station: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-10 %) V
Day/night switching: ICR/Color/B/W
Design: Tube
Dimensions: (LxWxH) 155x74x74 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS
Focal length: 6 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection
Height: 74 mm
Horizontal viewing angle: 53 °
ICR day/night function: Yes
IP protection class: 67
IR LEDs: Yes
IR range (up to): 10 m
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display
Image sensor: 1/2.5" Progressive Scan CMOS
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK
Length: 155 mm
Lens: Fix
Lens mount: M12
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2688 x 1520 @ 30 fps
Microphone: No
Min. operating temperature: -30 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,008 lx
Motion detection: 8 zones
Net weight: 0,5 kg
Network access: RJ45
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ONVIF Profile S, ONVIF Profile G, ABUS Server, Secvest Link
Noise reduction: 3D DNR
Number of IR LEDs: 10
Number of streams: 3
Number of users: 32
ONVIF: Profile G, S, T
OSD language: DE, UK, FR, NL, DK
Other functions: Auto Backup Recording, Secvest Connectivity
Pixels (effective): 2688(H) x 1520(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 550 mA
Private zones: 4
Resolution: 4 MP
Resolution modes: Stream 1: 2.688 x 1.520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1.280 x 720 @ 25 fps
Simultaneous network access: 6
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: IE10, IE11, Mozilla Firefox 30.0+, Chrome 31.0+
Technology: IP
Vertical viewing angle: 30 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
Video network bandwidth: 32 kBit/s - 16 MBit/s
Video system: IP
White balance: AWB, Manual
Width: 74 mm
