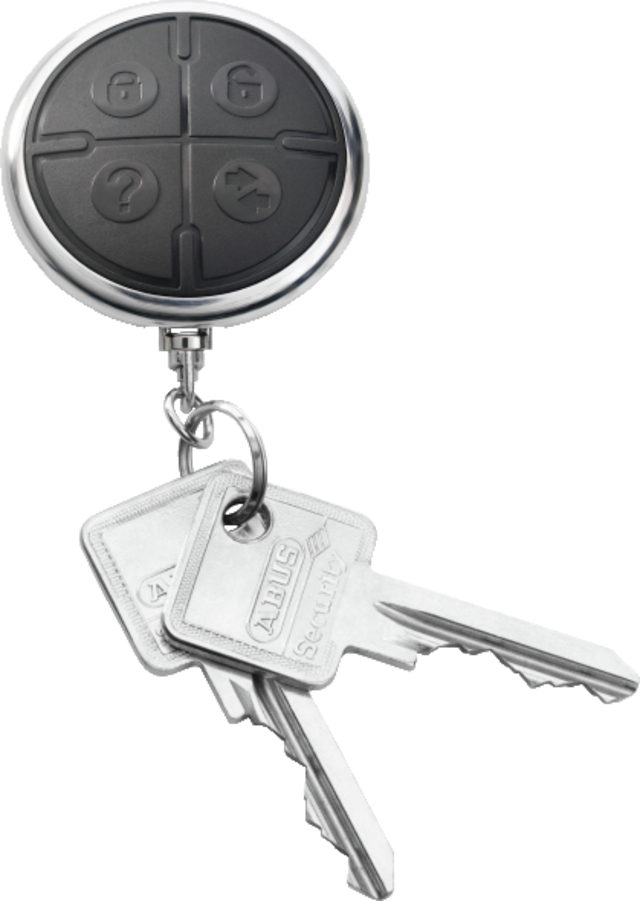

Secvest 2WAY Wireless Remote Control

Description

The bi-directional Secvest 2WAY wireless remote control is an optional accessory for the Secvest 2WAY. You can use it to control your system by the press of a button. In addition, you can query the current status of the system. With the remote control, you can conveniently arm and disarm the alarm system, receiving immediate feedback about the changed system status via the integrated LEDs. Simultaneously pressing and holding the arming button and the disarming button triggers a panic alarm. Pressing the third button queries all important information about the status of your alarm center (armed, disarmed, internally armed, fault). Feedback is also sent immediately and directly to your remote control. The fourth button can be freely programmed. In addition to the internal arming, you can use this for activating an output (e.g. for controlling a garage door). The fourth button is programmed on the Secvest 2WAY. The range of the Secvest 2WAY wireless remote control is approx. 30 meters.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • For convenient operation of the system
  • Reporting and display of the current system status
  • Freely programmable fourth button (Secvest 2WAY only)
  • Manual panic alarm possible (Secvest 2WAY only)

Downloads

General downloads:

Certificates:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

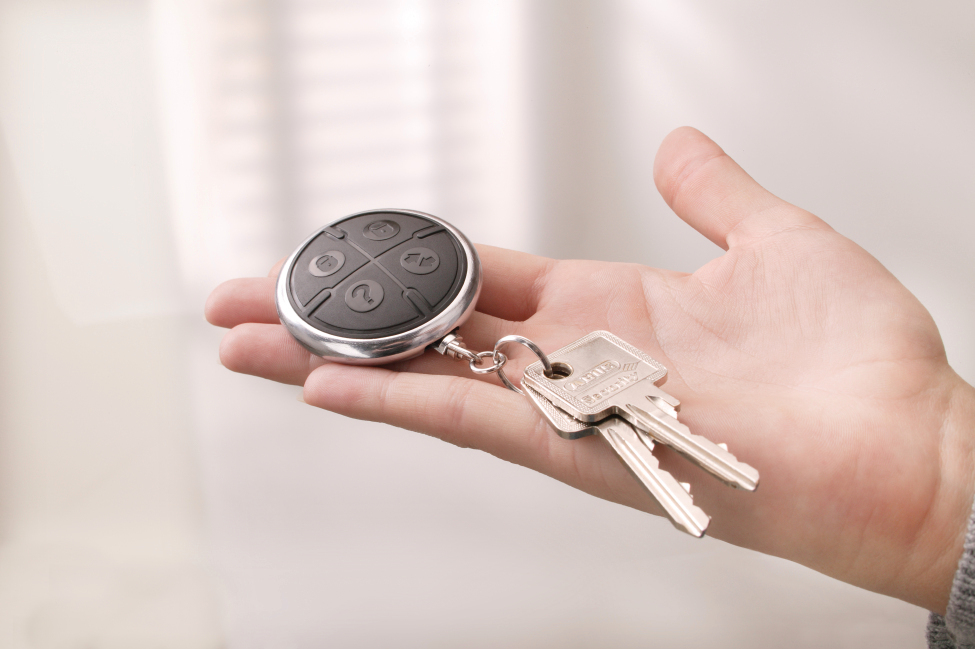

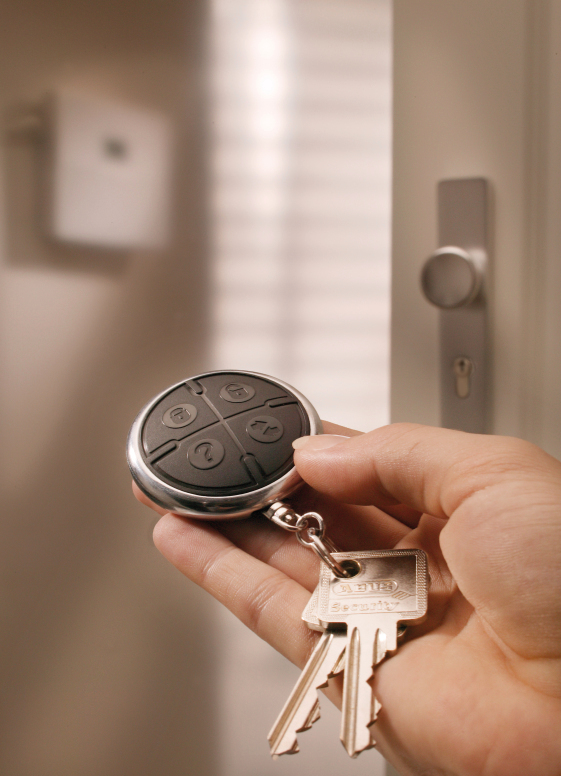

Secvest 2WAY Wireless Remote Control Example of application
Secvest 2WAY Wireless Remote Control Example of application
Specifications
Battery - max. battery life: 2 y
Battery - type: Lithium battery / CR 2450 Li-Mn 3V
Certifications: INCERT, VSÖ, F&P, NCP
Dimensions: (HxD) 15x50 mm
Display: Yes
Environmental class: II
Height: 15 mm
Housing material: ABS
Max. humidity: 94 %
Max. operating temperature: 55 °C
Max. receiving range (building): 10 m
Max. transmission range (building): 30 m
Min. operating temperature: -10 °C
Net weight: 0,03 kg
PSTI conformity required: No
Radio frequency: 868,6625 MHz
Radio power: 10 mW
Voltage monitoring: Yes
Width: 50 mm
