ABUS IP video surveillance 2MPx motor-zoom lens tube camera

Description

Keep a close eye on all situations with variable zoom

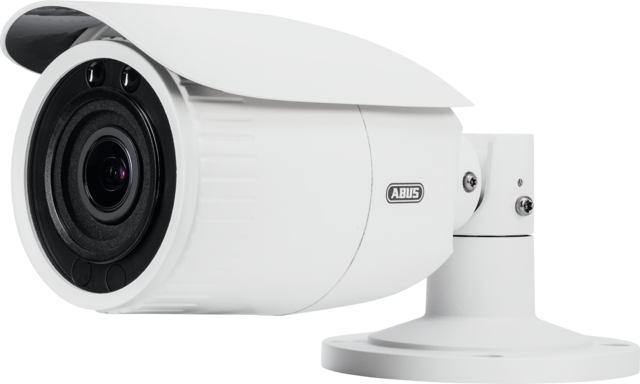

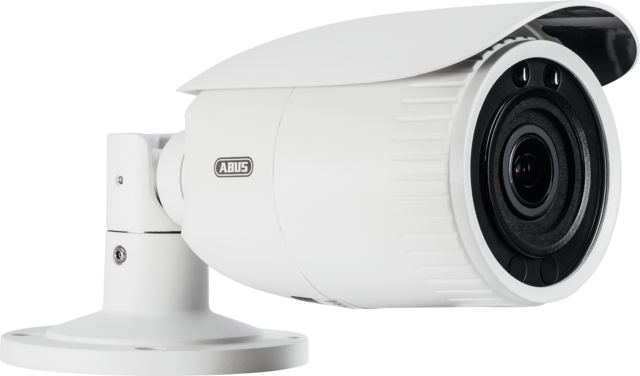

With a detailed high resolution of 1920 x 1080 pixels (2 megapixels), the TVIP62520 2MPx Motor Zoom Lens Tube Camera records 25 frames per second. The infinitely variable 4x optical zoom enables you to zoom in on any situation of interest with clear image details and to zoom out again to gain an overview of a larger area. This makes the camera a particularly versatile surveillance solution for the home or the office. With its sturdy, weather-protected housing featuring protection class IP67, it can be used both indoors or outdoors.

Ideal for use in entrance areas
The camera is ideally suited for monitoring entrance areas thanks to its built-in motion sensors and powerful True WDR function for backlight compensation. It also has infrared LEDs, which are activated in the dark. The installation is carried out without cable clutter: Only one cable is required by means of power supply via the network cable (PoE). The integrated microSD card slot can be used to record video directly on the camera.

Access to live images & recordings: secure and easy
The camera simply connects directly to the ABUS Link Station app on the smartphone or tablet via an encrypted end-to-end connection (E2E) - and without any settings on the router. With the Lite version of the app, up to 60 minutes of data stream (live view/playback) per month via Internet or Wi-Fi are completely free. Or with the ABUS Link Station Pro: Buy once and access unlimited data forever.

The effective IR range will depend on the installation location.

Awards & Partners
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
Awards & Partners

Product advantages

  • 2MPx camera for indoors and outdoors
  • Detailed full HD (2MPx) resolution of 1920 x 1080 pixels at 25 frames/second
  • True WDR image enhancement: Clear detail even with backlighting and strong contrasts
  • Stepless adjustable focal length via App or Browser (motor-zoom lens)
  • Integrated software motion detection
  • With H.265 Plus provides 2 times more recording capacity
  • Integrated IR LEDs for optimal night vision
  • Easy mobile access with the ABUS Link Station App - no router settings required
  • Capacity to send images by email
  • PoE (Power over Ethernet)-compatible

Downloads

General downloads:

Declarations of conformity:

Additional information:

Software:
Installation software:

Firmware:

Auxiliary programs:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Alarming: Email
Aperture: F2.0
Automatic aperture control: No
Base event: Motion detection
Colour: White
Compatible mounts: TVAC31370 / TVAC31381
Compatible with: TVVR36xxx / TVVR33xxx / NVRxxxxx
Compatible with Secvest: Yes
Compatible with Smartvest: No
Compatible with wAppLoxx: Yes
DC voltage supply: 12 V
Day/night switching: Auto / Manual / Schedule
Dimensions: (Ø x L) 105 x 294,5 mm
Dynamic range (WDR): 120 dB
Focal length: 2,8 - 12 mm
Gross weight: 0,724 kg
Horizontal viewing angle: 99.6° - 35 °
Housing material: Metal
IP protection class: 67
IR LEDs: Yes
IR range (up to): 30 m
IR swivel filter: Yes
Image enhancement: BLC / 3D DNR
Image sensor: 1/2.8" CMOS
Image settings: Brightness / Contrast / Saturation / Sharpness / Mirroring
Lens mount: F14
Loudspeaker: No
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1920 x 1080 @ 25/30 fps
Microphone: No
Min. humidity: 10
Min. operating temperature: -30 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,01 lx
Net weight: 0,382 kg
Network access: 1x RJ-45 10/100 Mbit/s self-adaptive Ethernet Anschluss
Network protocols: TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / IPv6
Noise reduction: 3D DNR
Number of users: 32
OSD language: DE / UK / FR / NL / DK / IT / PL / ES / SE
Optical Wave Length: 850 nm
PSTI conformity required: No
PoE standard: 802.3af
Power consumption: 12,9 W
Private zones: 4
Recording modes: Manual / time schedule / motion detection
Resolution modes: 1920 x 1080 / 1280 x 960 / 1280 x 720 @ 25/30 fps
Shutter speed: 1/3s - 1/100,000s
Software: ABUS Link Station (iOS & Android) / IP Installer
Storage medium: MicroSD (max. 128GB) / NAS
Supported browsers: Internet Explorer, Edge, Chrome, Firefox, Safari
Technology: IP
User levels: 3
Video compression: H.264 / H.264 Plus / H.265 / H.265 Plus / MJPEG
White balance: Auto white balance (AWB) / incandescent lamp / warm light / natural light / fluorescent lamp
