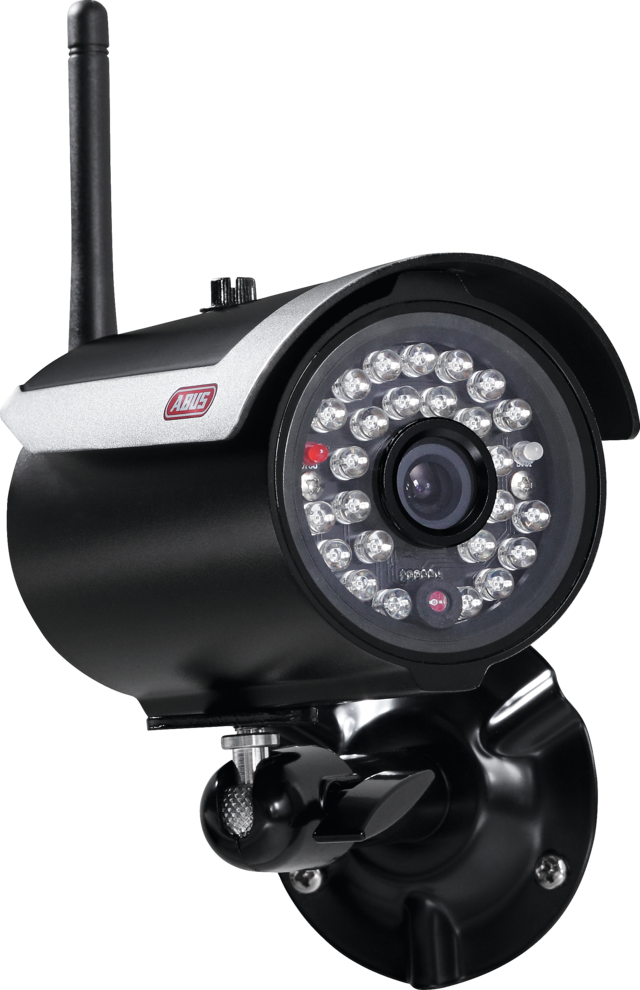

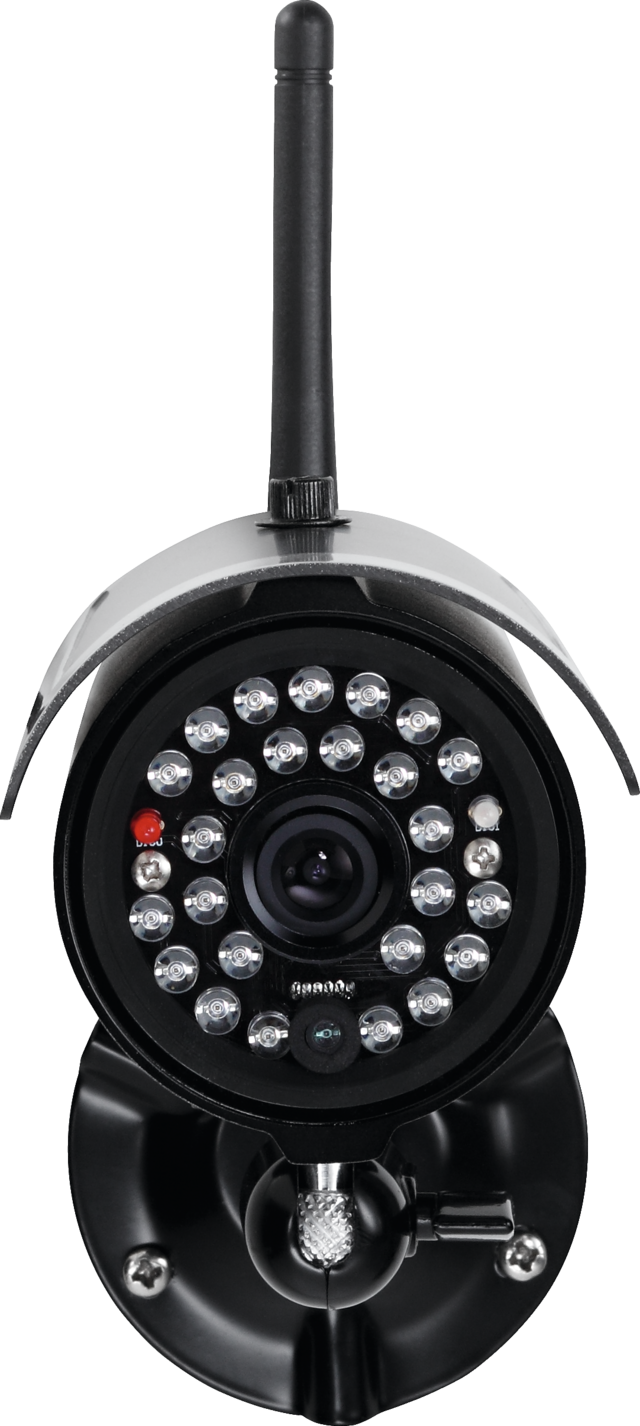

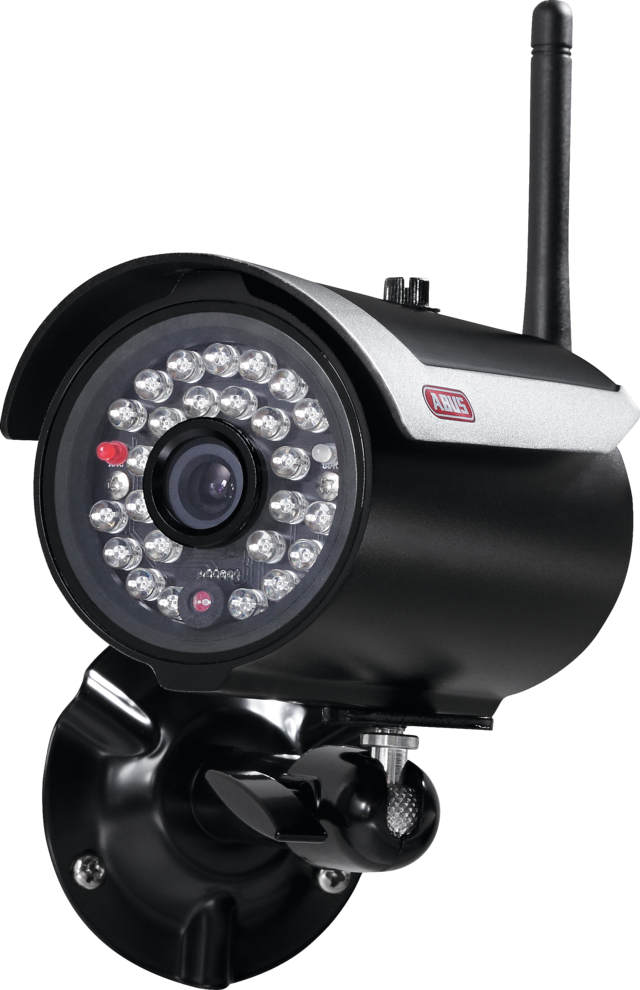

Name: Wireless Outdoor IR Camera (2.4GHz) for 7'' Set
Brand: ABUS August Bremicker Söhne KG

Description

TVAC16010B This IR 2.4 GHz wireless outdoor camera with PIR is an optional accessory for the 7" TFT wireless monitor. You have the option to operate up to four cameras of this type with the monitor. The 2.4 GHz IR wireless outdoor camera has integrated IR LEDs for 24/7 use both day and night. With the camera, you transmit the video signals wirelessly to the wireless monitor. Wireless signal transmission is an advantage anywhere cables are impossible or difficult to lay. The conversion into digitally encrypted signals allows malfunctions, interference, and any potential viewing of images by third parties to be reliably prevented.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

Product advantages

Compact IP66 outdoor camera with infrared night vision function
Integrated 2.4 GHz digital transmitter for encrypted wireless transmission of video data
IR digital wireless outdoor camera for integration in the TVAC16000 wireless monitor
This camera can only be used as an extension for the TVAC16000 wireless home video set
Up to four wireless cameras can be used with each monitor

Downloads

General downloads:

Data sheet

Declarations of conformity:

declaration of conformity

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Certifications:	CE
DC voltage supply:	5 V
Dimensions:	74 x 68 x 150 mm
Focal length:	3,6 mm
Frequency:	2,4 GHz
Height:	68 mm
IP protection class:	66
IR swivel filter:	Yes
Image sensor:	1/4" CMOS
Length:	150 mm
Lens:	3,6
Max. operating temperature:	50 °C

Min. operating temperature:	-10 °C
Modulation:	FHSS
Net weight:	0,39 kg
Number of IR LEDs:	25
Power consumption:	500 mA
Range of night vision function:	5-8 m
Resolution:	640 x 480
Sensitivity:	-80
Transmission power:	15
Width:	74 mm
Wireless range:	150 m
